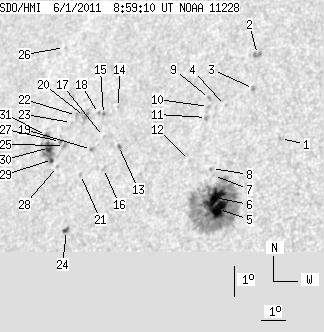

SDO HMI 2011-06-01 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.17 | 269.22 | 31.25 | 180.73 | 17.07 | 19.73 | -39.03 | 63.30 | 0.6750 | -310.0 | -215.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.93 | 18.47 | 23.42 | -35.34 | 59.30 | 0.6404 | -685.0 | -594.6 | |
| 0.00 | 4.16 | 0.00 | 2.78 | 21.22 | 21.77 | -36.99 | 56.56 | 0.6745 | -765.0 | -681.4 | |
| 0.00 | 2.26 | 0.00 | 1.50 | 20.10 | 21.92 | -36.84 | 57.96 | 0.6665 | -816.0 | -556.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 19.56 | 20.93 | -37.83 | 59.28 | 0.6745 | -665.0 | -582.7 | |
| 15.36 | 194.30 | 10.00 | 126.92 | 16.22 | 21.49 | -37.28 | 63.65 | 0.6513 | -1184.3 | -378.3 | |
| 17.35 | -5.00 | 11.36 | -5.00 | 16.60 | 21.24 | -37.53 | 63.23 | 0.6561 | -918.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 17.31 | 21.03 | -37.73 | 62.34 | 0.6619 | -391.0 | -337.9 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 17.53 | 20.90 | -37.87 | 62.10 | 0.6646 | -405.0 | -334.5 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 19.79 | 20.21 | -38.56 | 59.38 | 0.6838 | -585.0 | -429.9 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 19.53 | 20.24 | -38.52 | 59.71 | 0.6821 | -597.0 | -473.5 | |
| 0.00 | 2.08 | 0.00 | 1.40 | 19.18 | 20.26 | -38.51 | 60.18 | 0.6801 | -588.0 | -479.0 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 17.80 | 19.93 | -38.83 | 62.25 | 0.6770 | -381.0 | -295.3 | |
| 1.17 | 1.72 | 0.83 | 1.21 | 18.30 | 16.80 | -41.97 | 63.09 | 0.7142 | 713.3 | 651.7 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 19.53 | 16.41 | -42.35 | 61.66 | 0.7236 | 603.0 | 563.8 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 19.31 | 15.83 | -42.94 | 62.22 | 0.7289 | 744.0 | 677.2 | |
| 0.00 | 2.26 | 0.00 | 1.60 | 17.57 | 16.37 | -42.40 | 64.26 | 0.7160 | 627.0 | 482.8 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 18.60 | 16.05 | -42.71 | 63.04 | 0.7235 | -495.0 | -381.6 | |
| 0.00 | 1.54 | 0.00 | 1.11 | 19.35 | 15.59 | -43.17 | 62.28 | 0.7315 | 649.0 | 553.5 | |
| 0.00 | 1.90 | 0.00 | 1.36 | 18.18 | 15.66 | -43.11 | 63.76 | 0.7262 | -331.0 | -305.8 | |
| 0.00 | 5.78 | 0.00 | 4.23 | 19.25 | 15.00 | -43.76 | 62.66 | 0.7374 | 722.0 | 645.9 | |
| 0.00 | 1.36 | 0.00 | 0.97 | 17.39 | 15.42 | -43.35 | 64.90 | 0.7257 | 574.0 | 482.7 | |
| 0.00 | 1.90 | 0.00 | 1.40 | 19.29 | 14.63 | -44.14 | 62.77 | 0.7414 | 611.0 | 564.4 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 19.07 | 14.48 | -44.28 | 63.12 | 0.7421 | 588.0 | 513.3 | |
| 2.44 | 3.25 | 1.74 | 2.32 | 15.60 | 15.30 | -43.46 | 67.31 | 0.7204 | -691.1 | -614.9 | |
| 0.00 | 2.71 | 0.00 | 1.99 | 18.32 | 14.41 | -44.35 | 64.10 | 0.7400 | 731.0 | 628.7 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 21.52 | 13.25 | -45.52 | 60.58 | 0.7643 | 262.0 | 316.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 18.46 | 14.19 | -44.58 | 64.03 | 0.7429 | 792.0 | 711.1 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 17.65 | 14.31 | -44.45 | 65.01 | 0.7386 | 582.0 | 562.6 | |
| 0.72 | 28.74 | 0.53 | 21.34 | 17.88 | 14.02 | -44.75 | 64.83 | 0.7426 | 118.1 | 375.4 | |
| 7.14 | -29.00 | 5.30 | -29.00 | 18.27 | 13.75 | -45.01 | 64.44 | 0.7468 | 784.6 | 999999 | |
| 1.99 | -29.00 | 1.49 | -29.00 | 18.66 | 13.48 | -45.28 | 64.06 | 0.7510 | 505.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
