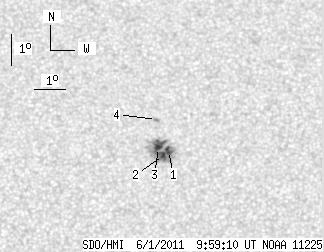

SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.21 | 51.96 | 4.78 | 26.96 | 16.62 | 58.92 | 0.71 | 357.72 | 0.2986 | -1134.8 | -699.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.34 | 49.34 | 1.73 | 25.59 | 16.58 | 59.09 | 0.87 | 357.17 | 0.2980 | -1079.6 | -702.3 | |
| 2.53 | -1.00 | 1.31 | -1.00 | 16.42 | 58.93 | 0.72 | 357.66 | 0.2952 | -1392.4 | 999999 | |
| 3.34 | -1.00 | 1.74 | -1.00 | 16.68 | 58.78 | 0.56 | 358.21 | 0.2994 | -1147.5 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.37 | 17.57 | 58.71 | 0.50 | 358.49 | 0.3143 | -871.0 | -652.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
