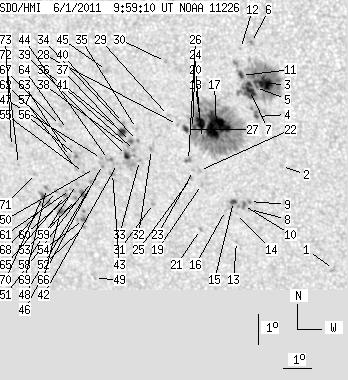

SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.29 | 512.52 | 58.34 | 290.07 | -20.68 | 36.93 | -21.28 | 135.41 | 0.4846 | 268.6 | 233.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.70 | -25.29 | 40.99 | -17.22 | 147.32 | 0.4978 | 666.0 | 571.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.89 | 39.66 | -18.55 | 140.85 | 0.4695 | 789.0 | 576.7 | |
| 15.09 | 129.40 | 8.33 | 71.46 | -19.20 | 39.42 | -18.80 | 136.32 | 0.4424 | 1316.0 | 590.7 | |
| 1.27 | 9.49 | 0.70 | 5.28 | -20.26 | 39.02 | -19.20 | 137.45 | 0.4581 | 856.5 | 333.7 | |
| 0.27 | -3.00 | 0.15 | -3.00 | -19.33 | 39.10 | -19.12 | 136.06 | 0.4472 | 920.0 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -17.89 | 39.13 | -19.08 | 133.65 | 0.4318 | -765.0 | -557.5 | |
| 12.65 | -3.00 | 7.01 | -3.00 | -19.42 | 38.88 | -19.33 | 135.91 | 0.4506 | 981.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -23.29 | 38.34 | -19.88 | 140.99 | 0.4981 | 728.0 | 561.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -23.03 | 38.38 | -19.83 | 140.68 | 0.4948 | 1067.0 | 849.3 | |
| 0.00 | 3.16 | 0.00 | 1.81 | -23.16 | 38.15 | -20.07 | 140.55 | 0.4985 | 906.0 | 791.4 | |
| 2.71 | -3.00 | 1.50 | -3.00 | -18.94 | 38.67 | -19.55 | 134.81 | 0.4479 | 897.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.08 | 38.74 | -19.48 | 133.42 | 0.4383 | 759.0 | 600.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -24.35 | 37.71 | -20.51 | 141.58 | 0.5157 | 422.0 | 419.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -23.42 | 37.86 | -20.36 | 140.53 | 0.5041 | 540.0 | 411.4 | |
| 2.44 | 7.14 | 1.39 | 4.08 | -23.03 | 37.82 | -20.40 | 139.92 | 0.5002 | 900.1 | 604.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -23.32 | 37.49 | -20.73 | 139.90 | 0.5066 | 318.0 | 255.4 | |
| 37.50 | 230.16 | 21.11 | 129.65 | -20.58 | 37.59 | -20.62 | 135.99 | 0.4766 | 1210.3 | 394.8 | |
| 2.26 | -17.00 | 1.28 | -17.00 | -20.97 | 37.05 | -21.17 | 135.89 | 0.4864 | 417.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -22.47 | 36.78 | -21.44 | 137.78 | 0.5046 | 567.0 | 444.4 | |
| 7.95 | -17.00 | 4.49 | -17.00 | -20.48 | 37.05 | -21.17 | 135.13 | 0.4814 | 918.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -23.95 | 36.49 | -21.73 | 139.50 | 0.5230 | -825.0 | -666.4 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -22.01 | 36.78 | -21.43 | 137.11 | 0.4998 | 795.0 | 575.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -22.01 | 36.57 | -21.65 | 136.85 | 0.5020 | 562.0 | 448.7 | |
| 0.27 | -17.00 | 0.15 | -17.00 | -20.64 | 36.75 | -21.47 | 135.00 | 0.4863 | 515.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.27 | 36.42 | -21.79 | 137.05 | 0.5062 | 614.0 | 493.2 | |
| 0.00 | 3.34 | 0.00 | 1.91 | -21.68 | 36.45 | -21.77 | 136.21 | 0.5000 | 851.0 | 679.9 | |
| 2.89 | -17.00 | 1.64 | -17.00 | -20.67 | 36.50 | -21.72 | 134.73 | 0.4893 | 602.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -20.51 | 36.24 | -21.97 | 134.16 | 0.4905 | 605.0 | 451.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -20.22 | 35.97 | -22.25 | 133.37 | 0.4907 | 667.0 | 468.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.48 | 36.12 | -22.10 | 130.70 | 0.4726 | 790.0 | 664.4 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -23.08 | 34.96 | -23.26 | 136.47 | 0.5294 | -525.0 | -534.1 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -21.32 | 35.20 | -23.02 | 134.15 | 0.5097 | -757.0 | -695.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -21.67 | 34.71 | -23.51 | 134.12 | 0.5184 | -832.0 | -648.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.02 | 34.75 | -23.47 | 133.18 | 0.5118 | -918.0 | -799.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -20.63 | 34.78 | -23.44 | 132.62 | 0.5079 | -740.0 | -465.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.35 | 34.59 | -23.63 | 133.49 | 0.5166 | -892.0 | -825.5 | |
| 0.72 | 2.98 | 0.42 | 1.72 | -21.05 | 34.50 | -23.72 | 132.94 | 0.5149 | -890.4 | -710.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.22 | 34.36 | -23.86 | 133.04 | 0.5179 | -750.0 | -619.8 | |
| 3.34 | 15.99 | 1.94 | 9.28 | -21.51 | 34.27 | -23.94 | 133.38 | 0.5216 | 445.8 | -3.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.44 | 34.35 | -23.87 | 131.83 | 0.5108 | -781.0 | -688.7 | |
| 4.70 | 6.24 | 2.71 | 3.60 | -20.76 | 34.26 | -23.96 | 132.23 | 0.5148 | -849.1 | -699.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -21.77 | 33.90 | -24.31 | 133.36 | 0.5280 | -913.0 | -741.9 | |
| 0.00 | 3.16 | 0.00 | 1.85 | -22.09 | 33.66 | -24.55 | 133.58 | 0.5336 | -927.0 | -804.9 | |
| 0.00 | 2.89 | 0.00 | 1.69 | -21.64 | 33.60 | -24.61 | 132.84 | 0.5300 | -761.0 | -701.2 | |
| 0.00 | 2.80 | 0.00 | 1.60 | -18.76 | 34.02 | -24.20 | 128.77 | 0.4998 | -890.0 | -655.3 | |
| 0.00 | 3.25 | 0.00 | 1.90 | -21.80 | 33.36 | -24.86 | 132.82 | 0.5342 | -740.0 | -723.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -21.60 | 33.36 | -24.86 | 132.52 | 0.5324 | -694.0 | -600.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -22.09 | 33.16 | -25.06 | 133.04 | 0.5390 | -785.0 | -682.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -25.57 | 32.28 | -25.94 | 136.93 | 0.5801 | -524.0 | -443.3 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -21.93 | 33.04 | -25.17 | 132.67 | 0.5388 | -820.0 | -697.7 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.35 | 32.85 | -25.36 | 133.10 | 0.5446 | -877.0 | -795.3 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -23.83 | 32.29 | -25.92 | 134.62 | 0.5639 | -539.0 | -475.2 | |
| 1.90 | 3.80 | 1.13 | 2.25 | -22.78 | 32.48 | -25.74 | 133.32 | 0.5525 | -904.9 | -852.0 | |
| 1.36 | 5.96 | 0.81 | 3.57 | -23.60 | 32.31 | -25.91 | 134.31 | 0.5617 | -733.9 | -718.9 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -22.06 | 32.62 | -25.60 | 132.42 | 0.5445 | -796.0 | -626.8 | |
| 0.00 | 5.78 | 0.00 | 3.40 | -21.50 | 32.47 | -25.74 | 131.45 | 0.5412 | -868.0 | -612.9 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -21.92 | 32.39 | -25.83 | 131.99 | 0.5458 | -729.0 | -601.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -22.45 | 32.29 | -25.93 | 132.65 | 0.5516 | -842.0 | -692.0 | |
| 0.00 | 2.71 | 0.00 | 1.61 | -22.94 | 32.15 | -26.07 | 133.22 | 0.5574 | -707.0 | -584.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -22.68 | 32.17 | -26.05 | 132.86 | 0.5549 | -853.0 | -760.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.61 | 32.03 | -26.18 | 132.63 | 0.5557 | -794.0 | -712.1 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -21.21 | 32.31 | -25.91 | 130.84 | 0.5405 | -665.0 | -587.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -21.53 | 32.21 | -26.01 | 131.23 | 0.5444 | -663.0 | -541.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.66 | 32.31 | -25.91 | 130.00 | 0.5358 | -638.0 | -539.9 | |
| 1.27 | 2.80 | 0.76 | 1.67 | -22.81 | 31.81 | -26.41 | 132.68 | 0.5599 | -753.3 | -673.5 | |
| 2.62 | 4.16 | 1.57 | 2.50 | -23.33 | 31.51 | -26.71 | 133.13 | 0.5676 | -726.3 | -696.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -20.53 | 32.08 | -26.14 | 129.57 | 0.5373 | -660.0 | -509.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -22.67 | 31.50 | -26.71 | 132.19 | 0.5620 | -783.0 | -588.7 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -22.57 | 31.16 | -27.06 | 131.71 | 0.5649 | -638.0 | -561.3 | |
| 2.08 | 9.04 | 1.25 | 5.44 | -22.84 | 30.95 | -27.27 | 131.89 | 0.5693 | -721.1 | -504.7 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -22.08 | 30.85 | -27.36 | 130.71 | 0.5640 | -482.0 | -463.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -21.78 | 30.29 | -27.93 | 129.74 | 0.5678 | -576.0 | -513.0 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -21.20 | 30.15 | -28.07 | 128.75 | 0.5646 | -673.0 | -582.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
