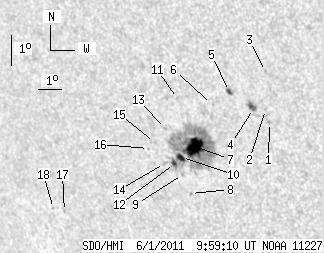

SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.72 | 173.39 | 21.90 | 116.66 | -20.39 | 19.54 | -38.67 | 120.14 | 0.6794 | 447.7 | 347.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.75 | -19.61 | 22.91 | -35.31 | 120.97 | 0.6372 | -620.0 | -538.3 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -19.19 | 22.86 | -35.36 | 120.33 | 0.6355 | -727.0 | -571.7 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -17.97 | 23.15 | -35.07 | 118.73 | 0.6255 | -661.0 | -529.1 | |
| 2.80 | 6.51 | 1.80 | 4.19 | -19.15 | 22.39 | -35.83 | 120.00 | 0.6408 | -730.7 | -606.9 | |
| 2.35 | 2.62 | 1.52 | 1.70 | -18.60 | 21.57 | -36.65 | 118.74 | 0.6475 | -681.4 | -675.3 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -19.02 | 20.74 | -37.48 | 118.87 | 0.6592 | 566.0 | 552.8 | |
| 21.24 | 150.73 | 14.27 | 101.50 | -20.36 | 19.66 | -38.56 | 120.16 | 0.6781 | 1058.8 | 421.0 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -21.89 | 19.01 | -39.20 | 121.86 | 0.6928 | 529.0 | 256.0 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -21.27 | 18.88 | -39.34 | 120.96 | 0.6912 | 562.0 | 472.8 | |
| 3.89 | -7.00 | 2.64 | -7.00 | -20.72 | 19.01 | -39.21 | 120.29 | 0.6870 | 735.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -18.82 | 19.40 | -38.82 | 117.89 | 0.6736 | 487.0 | 421.1 | |
| 2.44 | -7.00 | 1.67 | -7.00 | -20.91 | 18.65 | -39.56 | 120.36 | 0.6919 | 615.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -19.77 | 18.62 | -39.59 | 118.82 | 0.6868 | 334.0 | 266.9 | |
| 0.00 | 1.99 | 0.00 | 1.37 | -20.91 | 18.23 | -39.99 | 120.14 | 0.6965 | -220.0 | -117.2 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -20.22 | 18.02 | -40.20 | 119.12 | 0.6956 | 519.0 | 501.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -20.42 | 17.70 | -40.51 | 119.23 | 0.6999 | 228.0 | 275.0 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -22.44 | 13.21 | -45.00 | 119.79 | 0.7554 | -629.0 | -591.5 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -22.34 | 12.74 | -45.48 | 119.47 | 0.7597 | -473.0 | -402.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
