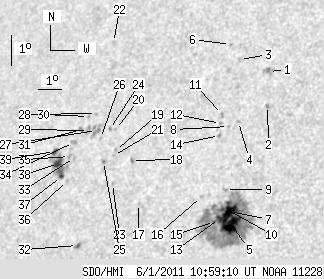

SDO HMI 2011-06-01 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.33 | 285.70 | 33.45 | 189.58 | 17.26 | 19.55 | -38.12 | 62.58 | 0.6653 | -316.3 | -176.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.05 | 0.00 | 4.00 | 21.18 | 21.71 | -35.96 | 55.96 | 0.6631 | -850.0 | -655.5 | |
| 0.00 | 1.72 | 0.00 | 1.12 | 20.07 | 21.97 | -35.70 | 57.31 | 0.6536 | -746.0 | -560.2 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 21.58 | 20.41 | -37.26 | 56.25 | 0.6795 | -185.0 | -242.0 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 19.56 | 20.94 | -36.73 | 58.65 | 0.6621 | -620.0 | -463.8 | |
| 17.62 | 198.07 | 11.32 | 127.62 | 16.25 | 21.46 | -36.21 | 63.03 | 0.6386 | -1154.7 | -359.7 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 22.08 | 19.88 | -37.79 | 55.91 | 0.6879 | -641.0 | -566.6 | |
| 15.00 | -5.00 | 9.68 | -5.00 | 16.66 | 21.29 | -36.38 | 62.52 | 0.6428 | -941.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 19.40 | 20.58 | -37.09 | 59.08 | 0.6653 | -569.0 | -477.8 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 17.37 | 20.97 | -36.70 | 61.69 | 0.6501 | -631.0 | -467.3 | |
| 1.08 | -5.00 | 0.70 | -5.00 | 16.76 | 21.07 | -36.60 | 62.51 | 0.6459 | -522.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.39 | 19.79 | 20.23 | -37.44 | 58.76 | 0.6714 | -563.0 | -443.3 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 19.50 | 20.23 | -37.44 | 59.15 | 0.6698 | -519.0 | -444.8 | |
| 3.16 | -5.00 | 2.05 | -5.00 | 16.44 | 20.94 | -36.73 | 63.04 | 0.6458 | -630.4 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.32 | 19.11 | 20.29 | -37.38 | 59.65 | 0.6670 | -711.0 | -567.4 | |
| 0.72 | -5.00 | 0.47 | -5.00 | 16.35 | 20.76 | -36.91 | 63.27 | 0.6475 | -414.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 17.15 | 20.06 | -37.61 | 62.51 | 0.6597 | -436.0 | -382.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 16.95 | 17.53 | -40.14 | 64.07 | 0.6880 | -488.0 | -330.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 18.33 | 16.86 | -40.81 | 62.52 | 0.7016 | 725.0 | 645.6 | |
| 0.00 | 1.17 | 0.00 | 0.83 | 18.66 | 16.07 | -41.59 | 62.46 | 0.7116 | -552.0 | -361.9 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 19.34 | 15.86 | -41.80 | 61.67 | 0.7169 | 715.0 | 614.8 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 18.50 | 16.04 | -41.63 | 62.69 | 0.7114 | -552.0 | -471.8 | |
| 0.00 | 1.54 | 0.00 | 1.13 | 22.19 | 14.78 | -42.88 | 58.55 | 0.7409 | 597.0 | 467.8 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 17.60 | 16.25 | -41.41 | 63.79 | 0.7051 | 609.0 | 464.6 | |
| 0.00 | 1.63 | 0.00 | 1.16 | 19.34 | 15.60 | -42.07 | 61.79 | 0.7197 | 678.0 | 539.2 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 18.31 | 15.66 | -42.01 | 63.11 | 0.7147 | -546.0 | -489.7 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 19.05 | 15.30 | -42.37 | 62.30 | 0.7217 | 593.0 | 549.9 | |
| 0.00 | 8.04 | 0.00 | 5.77 | 19.31 | 15.04 | -42.63 | 62.08 | 0.7256 | 701.0 | 616.7 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 19.87 | 14.86 | -42.81 | 61.45 | 0.7299 | 537.0 | 405.7 | |
| 0.00 | 4.16 | 0.00 | 3.00 | 19.32 | 14.69 | -42.98 | 62.24 | 0.7293 | 661.0 | 532.8 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 19.77 | 14.54 | -43.13 | 61.72 | 0.7328 | 315.0 | 241.8 | |
| 0.00 | 2.44 | 0.00 | 1.77 | 19.35 | 14.37 | -43.30 | 62.34 | 0.7329 | 564.0 | 459.6 | |
| 1.99 | 2.80 | 1.39 | 1.96 | 15.63 | 15.29 | -42.38 | 66.85 | 0.7083 | -743.0 | -565.2 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 18.45 | 14.35 | -43.32 | 63.51 | 0.7294 | 776.0 | 648.1 | |
| 0.00 | 3.07 | 0.00 | 2.23 | 18.93 | 14.15 | -43.52 | 62.97 | 0.7335 | 697.0 | 601.4 | |
| 0.00 | 2.08 | 0.00 | 1.51 | 18.48 | 14.12 | -43.55 | 63.57 | 0.7320 | 787.0 | 646.0 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 17.71 | 14.27 | -43.40 | 64.51 | 0.7274 | 719.0 | 584.2 | |
| 1.90 | 28.10 | 1.37 | 20.48 | 17.84 | 13.96 | -43.70 | 64.46 | 0.7312 | -232.8 | 447.8 | |
| 6.42 | -37.00 | 4.68 | -37.00 | 18.26 | 13.70 | -43.97 | 64.03 | 0.7356 | 739.5 | 999999 | |
| 2.44 | -37.00 | 1.79 | -37.00 | 18.65 | 13.39 | -44.28 | 63.66 | 0.7404 | 502.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
