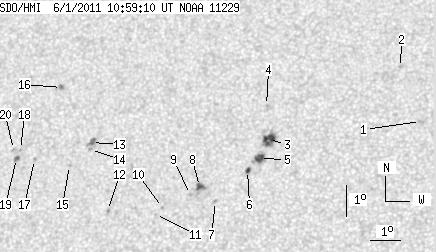

SDO HMI 2011-06-01 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.49 | 61.63 | 13.23 | 33.52 | 17.09 | 41.03 | -16.63 | 41.49 | 0.4129 | -222.6 | 24.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.10 | 18.13 | 48.41 | -9.26 | 25.42 | 0.3578 | 799.0 | 704.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 19.87 | 47.65 | -10.02 | 25.02 | 0.3884 | 643.0 | 522.1 | |
| 10.03 | 14.01 | 5.40 | 7.53 | 17.56 | 43.49 | -14.18 | 36.80 | 0.3916 | -1035.7 | -805.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 18.65 | 43.33 | -14.34 | 35.39 | 0.4069 | -682.0 | -505.2 | |
| 5.96 | 8.31 | 3.20 | 4.46 | 16.96 | 43.24 | -14.43 | 38.27 | 0.3865 | -1041.4 | -793.2 | |
| 2.17 | 2.89 | 1.16 | 1.55 | 16.57 | 42.87 | -14.79 | 39.60 | 0.3856 | -791.8 | -612.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 15.59 | 41.90 | -15.77 | 43.13 | 0.3845 | -914.0 | -733.4 | |
| 3.80 | 8.40 | 2.05 | 4.53 | 16.07 | 41.34 | -16.33 | 43.24 | 0.3961 | -885.2 | -759.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 15.82 | 41.06 | -16.61 | 44.17 | 0.3963 | -803.0 | -599.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 15.41 | 40.17 | -17.50 | 46.38 | 0.4021 | -775.0 | -634.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 15.19 | 39.96 | -17.71 | 47.13 | 0.4022 | -837.0 | -626.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.32 | 38.35 | -19.32 | 49.28 | 0.4227 | 875.0 | 736.1 | |
| 0.00 | 5.42 | 0.00 | 3.01 | 17.49 | 37.58 | -20.09 | 46.51 | 0.4533 | 951.0 | 760.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.26 | 37.57 | -20.09 | 46.90 | 0.4512 | 934.0 | 761.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 16.76 | 36.92 | -20.75 | 48.65 | 0.4537 | 712.0 | 583.5 | |
| 0.00 | 2.62 | 0.00 | 1.48 | 19.26 | 36.33 | -21.34 | 45.30 | 0.4852 | 950.0 | 796.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.95 | 35.70 | -21.97 | 49.86 | 0.4700 | 868.0 | 697.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.28 | 35.18 | -22.49 | 49.95 | 0.4791 | 763.0 | 597.9 | |
| 2.53 | 2.62 | 1.42 | 1.48 | 16.99 | 35.08 | -22.59 | 50.55 | 0.4777 | 783.9 | 555.0 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 17.28 | 34.94 | -22.73 | 50.24 | 0.4820 | 776.0 | 602.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
