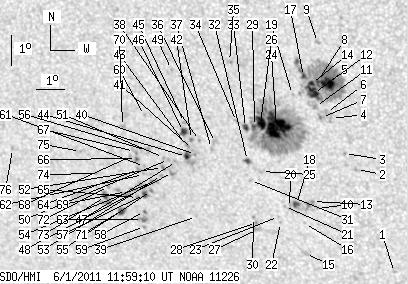

SDO HMI 2011-06-01 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.66 | 527.25 | 55.44 | 296.63 | -20.73 | 36.83 | -20.29 | 136.82 | 0.4745 | 219.4 | 207.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.51 | -25.39 | 40.94 | -16.18 | 149.00 | 0.4907 | 664.0 | 507.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -21.98 | 40.07 | -17.05 | 143.26 | 0.4563 | 680.0 | 663.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.46 | 39.73 | -17.39 | 141.97 | 0.4535 | -857.0 | -645.6 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -20.32 | 39.42 | -17.70 | 139.78 | 0.4434 | 405.0 | 206.5 | |
| 10.75 | 134.35 | 5.90 | 73.74 | -19.20 | 39.41 | -17.71 | 137.96 | 0.4307 | 1354.6 | 599.4 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -20.13 | 39.27 | -17.85 | 139.25 | 0.4427 | -155.0 | -146.2 | |
| 0.00 | 3.16 | 0.00 | 1.75 | -20.29 | 39.08 | -18.04 | 139.22 | 0.4464 | 823.0 | 702.0 | |
| 1.63 | -5.00 | 0.89 | -5.00 | -19.13 | 39.08 | -18.04 | 137.35 | 0.4335 | 1203.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -17.89 | 39.22 | -17.90 | 135.42 | 0.4185 | -709.0 | -558.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -23.26 | 38.55 | -18.57 | 142.76 | 0.4854 | 734.0 | 572.2 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -19.94 | 38.92 | -18.20 | 138.41 | 0.4441 | 836.0 | 681.3 | |
| 10.75 | -5.00 | 5.92 | -5.00 | -19.52 | 38.90 | -18.22 | 137.71 | 0.4397 | 948.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -23.03 | 38.41 | -18.71 | 142.25 | 0.4841 | 1011.0 | 863.2 | |
| 1.72 | -5.00 | 0.94 | -5.00 | -19.20 | 38.87 | -18.25 | 137.13 | 0.4365 | 1088.9 | 999999 | |
| 0.00 | 3.43 | 0.00 | 1.97 | -24.75 | 37.90 | -19.22 | 143.83 | 0.5085 | 706.0 | 457.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -23.75 | 38.02 | -19.10 | 142.69 | 0.4960 | 504.0 | 346.2 | |
| 1.36 | -5.00 | 0.75 | -5.00 | -18.97 | 38.63 | -18.49 | 136.39 | 0.4367 | 883.5 | 999999 | |
| 3.16 | 8.85 | 1.80 | 5.03 | -23.12 | 37.84 | -19.28 | 141.57 | 0.4906 | 870.8 | 718.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.55 | 38.18 | -18.93 | 136.69 | 0.4477 | 550.0 | 423.4 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -23.22 | 37.58 | -19.54 | 141.35 | 0.4942 | 467.0 | 496.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -23.19 | 37.41 | -19.71 | 141.07 | 0.4954 | 588.0 | 441.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -23.72 | 37.18 | -19.94 | 141.49 | 0.5034 | 453.0 | 279.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -23.52 | 37.14 | -19.98 | 141.17 | 0.5016 | 464.0 | 456.8 | |
| 36.68 | 222.18 | 20.52 | 124.32 | -20.58 | 37.50 | -19.62 | 137.37 | 0.4659 | 1209.9 | 395.6 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -22.04 | 36.77 | -20.35 | 138.58 | 0.4891 | 664.0 | 536.9 | |
| 8.67 | -24.00 | 4.86 | -24.00 | -20.45 | 36.97 | -20.15 | 136.43 | 0.4702 | 877.2 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.19 | -23.94 | 36.33 | -20.79 | 140.68 | 0.5140 | -683.0 | -565.0 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -23.71 | 36.33 | -20.79 | 140.37 | 0.5115 | -805.0 | -689.3 | |
| 1.81 | -24.00 | 1.02 | -24.00 | -20.57 | 36.74 | -20.38 | 136.33 | 0.4740 | 596.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -23.55 | 36.25 | -20.87 | 140.04 | 0.5105 | -874.0 | -693.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.33 | 36.34 | -20.78 | 138.44 | 0.4966 | 649.0 | 413.1 | |
| 2.35 | 3.34 | 1.33 | 1.90 | -21.68 | 36.34 | -20.78 | 137.47 | 0.4897 | 719.3 | 632.8 | |
| 2.89 | 3.61 | 1.63 | 2.04 | -20.61 | 36.43 | -20.69 | 135.95 | 0.4777 | 624.5 | 279.0 | |
| 0.00 | 2.08 | 0.00 | 1.17 | -20.41 | 36.14 | -20.98 | 135.27 | 0.4787 | 562.0 | 331.8 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -18.48 | 36.16 | -20.96 | 132.14 | 0.4593 | 679.0 | 588.7 | |
| 0.00 | 4.25 | 0.00 | 2.42 | -21.09 | 35.31 | -21.81 | 135.27 | 0.4946 | -254.0 | -303.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.28 | 35.14 | -21.98 | 135.35 | 0.4983 | -724.0 | -660.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.02 | 34.75 | -22.37 | 134.49 | 0.4998 | -913.0 | -760.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -23.51 | 34.22 | -22.90 | 137.49 | 0.5301 | -735.0 | -595.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -21.48 | 34.54 | -22.58 | 134.92 | 0.5066 | -634.0 | -564.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.31 | 34.46 | -22.66 | 134.58 | 0.5059 | -750.0 | -726.6 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -20.99 | 34.48 | -22.64 | 134.10 | 0.5025 | -887.0 | -794.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.21 | 34.30 | -22.82 | 134.24 | 0.5067 | -765.0 | -628.5 | |
| 2.62 | 10.30 | 1.51 | 5.93 | -21.54 | 34.21 | -22.91 | 134.62 | 0.5108 | 462.2 | 174.8 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -20.44 | 34.32 | -22.80 | 133.06 | 0.4990 | -719.0 | -590.1 | |
| 3.79 | 5.15 | 2.17 | 2.95 | -20.73 | 34.24 | -22.88 | 133.42 | 0.5027 | -908.9 | -779.5 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -21.70 | 33.83 | -23.29 | 134.42 | 0.5164 | -814.0 | -744.6 | |
| 0.00 | 4.07 | 0.00 | 2.36 | -22.06 | 33.62 | -23.50 | 134.71 | 0.5221 | -613.0 | -760.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -18.73 | 34.12 | -23.00 | 130.06 | 0.4854 | -766.0 | -606.3 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -21.63 | 33.55 | -23.57 | 134.01 | 0.5187 | -830.0 | -628.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -21.57 | 33.39 | -23.73 | 133.72 | 0.5199 | -619.0 | -531.1 | |
| 0.00 | 2.53 | 0.00 | 1.47 | -21.89 | 33.29 | -23.83 | 134.10 | 0.5240 | -964.0 | -730.5 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -22.16 | 33.21 | -23.91 | 134.39 | 0.5274 | -878.0 | -719.1 | |
| 0.00 | 3.79 | 0.00 | 2.22 | -22.35 | 32.89 | -24.23 | 134.32 | 0.5326 | -817.0 | -744.2 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -22.65 | 32.76 | -24.36 | 134.60 | 0.5368 | -831.0 | -671.2 | |
| 0.00 | 3.61 | 0.00 | 2.10 | -21.34 | 32.85 | -24.27 | 132.78 | 0.5236 | -690.0 | -687.4 | |
| 2.80 | 8.94 | 1.65 | 5.25 | -22.78 | 32.48 | -24.64 | 134.49 | 0.5409 | -901.6 | -654.3 | |
| 0.36 | 1.26 | 0.21 | 0.75 | -23.33 | 32.37 | -24.75 | 135.16 | 0.5473 | -827.8 | -786.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -23.83 | 32.27 | -24.85 | 135.75 | 0.5530 | -524.0 | -459.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -20.20 | 32.94 | -24.18 | 131.12 | 0.5123 | -842.0 | -666.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -21.86 | 32.65 | -24.47 | 133.34 | 0.5306 | -846.0 | -669.5 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -22.12 | 32.57 | -24.55 | 133.63 | 0.5339 | -804.0 | -700.6 | |
| 0.00 | 4.52 | 0.00 | 2.68 | -23.60 | 32.24 | -24.88 | 135.40 | 0.5511 | -827.0 | -698.5 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -21.96 | 32.42 | -24.70 | 133.23 | 0.5340 | -723.0 | -621.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.87 | 32.21 | -24.91 | 134.33 | 0.5447 | -871.0 | -719.1 | |
| 1.08 | 1.90 | 0.63 | 1.11 | -21.60 | 32.41 | -24.71 | 132.69 | 0.5308 | -857.7 | -799.1 | |
| 0.00 | 2.62 | 0.00 | 1.53 | -21.37 | 32.38 | -24.74 | 132.31 | 0.5290 | -676.0 | -621.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.53 | 32.21 | -24.91 | 132.37 | 0.5324 | -612.0 | -485.9 | |
| 0.00 | 10.03 | 0.00 | 5.92 | -22.67 | 31.84 | -25.28 | 133.66 | 0.5467 | -498.0 | -688.6 | |
| 0.00 | 2.35 | 0.00 | 1.37 | -20.56 | 32.10 | -25.02 | 130.77 | 0.5250 | -764.0 | -574.1 | |
| 4.52 | 5.24 | 2.69 | 3.12 | -23.30 | 31.53 | -25.59 | 134.23 | 0.5556 | -697.7 | -504.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.51 | 31.22 | -25.90 | 132.77 | 0.5519 | -774.0 | -643.1 | |
| 1.72 | 9.49 | 1.02 | 5.65 | -22.84 | 31.04 | -26.08 | 133.06 | 0.5567 | -724.6 | -551.3 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -22.08 | 30.87 | -26.25 | 131.80 | 0.5519 | -524.0 | -499.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -21.36 | 30.42 | -26.70 | 130.29 | 0.5507 | -832.0 | -625.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -21.25 | 27.93 | -29.19 | 127.85 | 0.5778 | -610.0 | -410.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
