SDO HMI 2011-06-01 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 78.06 | 12.78 | 46.47 | -17.82 | 26.88 | -29.69 | 122.18 | 0.5592 | 859.7 | 519.1 | |
|
previous
or next observation for the same group /

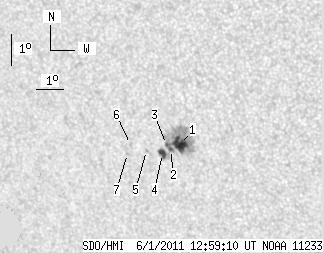

back to the solar disc SDO HMI 2011-06-01 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.83 | 74.72 | 7.63 | 44.44 | -17.74 | 27.20 | -29.37 | 122.29 | 0.5548 | 1057.8 | 520.5 | |
| 1.54 | -1.00 | 0.92 | -1.00 | -17.90 | 26.80 | -29.77 | 122.23 | 0.5607 | 813.0 | 999999 | |
| 1.72 | -1.00 | 1.03 | -1.00 | -17.74 | 26.68 | -29.89 | 121.89 | 0.5611 | 653.2 | 999999 | |
| 5.33 | -1.00 | 3.20 | -1.00 | -18.02 | 26.48 | -30.09 | 122.18 | 0.5655 | 689.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.92 | 25.91 | -30.66 | 121.59 | 0.5718 | 568.0 | 430.1 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -17.73 | 25.35 | -31.22 | 120.88 | 0.5775 | 638.0 | 456.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -18.02 | 25.18 | -31.39 | 121.21 | 0.5813 | 663.0 | 598.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
