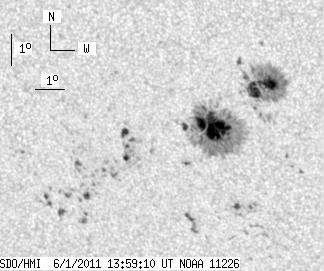

SDO HMI 2011-06-01 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.02 | 515.65 | 54.82 | 288.06 | -20.72 | 36.85 | -19.17 | 138.35 | 0.4630 | 151.9 | 223.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.95 | -22.01 | 40.17 | -15.85 | 145.23 | 0.4459 | 776.0 | 645.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -21.85 | 39.84 | -16.17 | 144.47 | 0.4467 | 998.0 | 781.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.52 | 39.71 | -16.31 | 143.79 | 0.4440 | -865.0 | -708.2 | |
| 9.67 | 120.33 | 5.27 | 65.64 | -19.20 | 39.43 | -16.59 | 139.75 | 0.4191 | 1406.7 | 599.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -24.81 | 38.73 | -17.29 | 146.65 | 0.4926 | 674.0 | 526.3 | |
| 0.00 | 3.88 | 0.00 | 2.13 | -20.26 | 39.24 | -16.77 | 141.14 | 0.4334 | 11.0 | 58.2 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -24.12 | 38.66 | -17.36 | 145.66 | 0.4848 | 719.0 | 599.2 | |
| 0.00 | 3.34 | 0.00 | 1.84 | -20.26 | 39.04 | -16.98 | 140.82 | 0.4354 | 753.0 | 701.7 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -17.88 | 39.26 | -16.76 | 137.24 | 0.4059 | -733.0 | -487.7 | |
| 1.08 | -4.00 | 0.59 | -4.00 | -19.10 | 39.07 | -16.95 | 139.00 | 0.4217 | 1112.0 | 999999 | |
| 0.00 | 4.34 | 0.00 | 2.45 | -23.82 | 38.38 | -17.63 | 144.87 | 0.4836 | 495.0 | 417.2 | |
| 13.64 | -4.00 | 7.47 | -4.00 | -19.39 | 38.87 | -17.15 | 139.15 | 0.4271 | 1011.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -19.97 | 38.80 | -17.22 | 139.98 | 0.4344 | 776.0 | 675.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -23.09 | 38.41 | -17.60 | 143.95 | 0.4747 | 1071.0 | 846.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.32 | 38.38 | -17.64 | 144.22 | 0.4777 | 734.0 | 551.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -23.16 | 38.27 | -17.75 | 143.82 | 0.4768 | 958.0 | 848.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -24.91 | 38.01 | -18.01 | 145.73 | 0.4999 | 724.0 | 458.5 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -24.01 | 38.01 | -18.01 | 144.58 | 0.4893 | 494.0 | 292.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.19 | 38.45 | -17.57 | 138.18 | 0.4293 | 644.0 | 422.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -19.45 | 38.39 | -17.63 | 138.50 | 0.4328 | 777.0 | 608.7 | |
| 1.45 | 2.35 | 0.79 | 1.28 | -18.49 | 38.46 | -17.56 | 137.00 | 0.4213 | 819.2 | 728.7 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -23.42 | 37.81 | -18.21 | 143.51 | 0.4840 | 685.0 | 559.3 | |
| 2.80 | 4.16 | 1.58 | 2.35 | -23.16 | 37.82 | -18.20 | 143.16 | 0.4809 | 924.4 | 616.9 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -24.18 | 37.46 | -18.56 | 144.00 | 0.4961 | 555.0 | 409.9 | |
| 2.17 | 229.28 | 1.20 | 127.58 | -20.74 | 37.62 | -18.40 | 139.37 | 0.4552 | 1203.8 | 398.5 | |
| 9.58 | -25.00 | 5.31 | -25.00 | -20.48 | 37.62 | -18.40 | 138.97 | 0.4523 | 1411.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -19.64 | 37.69 | -18.33 | 137.74 | 0.4423 | 758.0 | 580.2 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -19.87 | 37.52 | -18.49 | 137.86 | 0.4465 | 830.0 | 737.2 | |
| 14.27 | -25.00 | 7.95 | -25.00 | -20.74 | 37.28 | -18.74 | 138.87 | 0.4587 | 1135.0 | 999999 | |
| 6.41 | -25.00 | 3.56 | -25.00 | -20.25 | 37.27 | -18.75 | 138.10 | 0.4534 | 1095.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -24.18 | 36.57 | -19.44 | 142.78 | 0.5041 | -424.0 | -247.4 | |
| 1.36 | -25.00 | 0.75 | -25.00 | -19.93 | 37.11 | -18.91 | 137.35 | 0.4516 | 694.1 | 999999 | |
| 8.31 | -25.00 | 4.63 | -25.00 | -20.44 | 36.94 | -19.08 | 137.92 | 0.4590 | 924.3 | 999999 | |
| 1.45 | 8.67 | 0.83 | 4.96 | -23.51 | 36.08 | -19.94 | 141.22 | 0.5012 | -919.4 | -702.9 | |
| 0.81 | 2.80 | 0.46 | 1.58 | -21.77 | 36.24 | -19.78 | 138.96 | 0.4806 | 700.8 | 641.6 | |
| 3.43 | -25.00 | 1.92 | -25.00 | -20.54 | 36.34 | -19.68 | 137.23 | 0.4662 | 581.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -18.55 | 36.32 | -19.70 | 133.94 | 0.4456 | 841.0 | 597.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.84 | 35.86 | -20.16 | 132.09 | 0.4439 | -829.0 | -642.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -23.11 | 34.91 | -21.11 | 139.13 | 0.5083 | -665.0 | -577.5 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.31 | 35.05 | -20.97 | 136.69 | 0.4880 | -851.0 | -736.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.05 | 34.74 | -21.28 | 135.89 | 0.4886 | -683.0 | -495.2 | |
| 0.00 | 2.26 | 0.00 | 1.29 | -21.83 | 34.58 | -21.44 | 136.87 | 0.4982 | -825.0 | -496.3 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -21.57 | 34.59 | -21.43 | 136.49 | 0.4954 | -701.0 | -588.1 | |
| 0.54 | 2.17 | 0.31 | 1.23 | -20.95 | 34.44 | -21.58 | 135.36 | 0.4908 | -927.2 | -739.1 | |
| 1.26 | 15.09 | 0.72 | 8.60 | -21.18 | 34.23 | -21.79 | 135.44 | 0.4953 | -675.6 | -261.5 | |
| 2.08 | -45.00 | 1.19 | -45.00 | -21.57 | 34.13 | -21.89 | 135.91 | 0.5002 | 525.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.44 | 34.31 | -21.71 | 134.39 | 0.4870 | -815.0 | -567.0 | |
| 4.70 | 5.51 | 2.67 | 3.13 | -20.73 | 34.23 | -21.79 | 134.74 | 0.4908 | -832.2 | -706.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.26 | 33.81 | -22.21 | 136.53 | 0.5105 | -702.0 | -564.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.79 | 34.23 | -21.79 | 131.62 | 0.4720 | -862.0 | -743.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.67 | 33.76 | -22.26 | 135.60 | 0.5051 | -867.0 | -701.6 | |
| 0.00 | 3.79 | 0.00 | 2.18 | -22.09 | 33.62 | -22.40 | 136.06 | 0.5108 | -899.0 | -804.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.89 | 33.58 | -22.43 | 135.73 | 0.5093 | -885.0 | -752.9 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.86 | 34.05 | -21.97 | 131.50 | 0.4747 | -689.0 | -565.0 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -19.95 | 33.78 | -22.23 | 132.97 | 0.4881 | -445.0 | -344.5 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -21.67 | 33.44 | -22.57 | 135.22 | 0.5085 | -846.0 | -693.1 | |
| 1.17 | 1.72 | 0.68 | 0.99 | -21.96 | 33.29 | -22.73 | 135.47 | 0.5130 | -932.6 | -657.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.12 | 33.26 | -22.76 | 135.68 | 0.5149 | -774.0 | -687.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.38 | 33.04 | -22.98 | 135.79 | 0.5198 | -744.0 | -616.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -21.96 | 33.04 | -22.98 | 135.17 | 0.5156 | -891.0 | -727.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -22.68 | 32.91 | -23.11 | 136.08 | 0.5240 | -562.0 | -553.2 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -22.38 | 32.86 | -23.16 | 135.58 | 0.5217 | -870.0 | -763.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -22.58 | 32.82 | -23.19 | 135.83 | 0.5240 | -563.0 | -565.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.12 | 32.87 | -23.15 | 135.21 | 0.5190 | -902.0 | -751.1 | |
| 3.16 | 5.42 | 1.84 | 3.16 | -22.81 | 32.53 | -23.49 | 135.82 | 0.5292 | -871.8 | -737.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -20.20 | 32.94 | -23.08 | 132.37 | 0.4999 | -806.0 | -611.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -23.37 | 32.39 | -23.63 | 136.45 | 0.5361 | -871.0 | -736.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.89 | 32.62 | -23.40 | 134.59 | 0.5194 | -812.0 | -678.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -22.19 | 32.57 | -23.45 | 134.96 | 0.5228 | -694.0 | -639.1 | |
| 0.00 | 4.16 | 0.00 | 2.44 | -23.63 | 32.23 | -23.79 | 136.64 | 0.5403 | -807.0 | -685.6 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -22.45 | 32.45 | -23.57 | 135.21 | 0.5265 | -842.0 | -671.4 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -22.91 | 32.26 | -23.76 | 135.65 | 0.5330 | -843.0 | -698.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.21 | 32.53 | -23.49 | 133.45 | 0.5139 | -723.0 | -614.4 | |
| 1.81 | 5.33 | 1.05 | 3.09 | -21.73 | 32.40 | -23.62 | 134.09 | 0.5202 | -810.4 | -647.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -21.34 | 32.33 | -23.69 | 133.42 | 0.5173 | -709.0 | -620.8 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -22.58 | 32.07 | -23.95 | 134.96 | 0.5318 | -804.0 | -649.1 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -21.53 | 32.22 | -23.80 | 133.59 | 0.5203 | -626.0 | -512.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -20.75 | 32.35 | -23.66 | 132.56 | 0.5116 | -745.0 | -645.6 | |
| 0.00 | 3.52 | 0.00 | 2.06 | -22.74 | 31.86 | -24.16 | 134.96 | 0.5356 | -856.0 | -781.0 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -20.59 | 32.20 | -23.81 | 132.14 | 0.5117 | -674.0 | -543.2 | |
| 3.61 | 6.23 | 2.13 | 3.68 | -23.33 | 31.53 | -24.49 | 135.44 | 0.5446 | -680.2 | -349.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.64 | 31.59 | -24.43 | 134.52 | 0.5375 | -824.0 | -704.7 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -22.54 | 31.28 | -24.74 | 134.05 | 0.5398 | -762.0 | -568.4 | |
| 1.63 | 2.44 | 0.96 | 1.44 | -23.03 | 31.15 | -24.87 | 134.61 | 0.5458 | -643.6 | -465.2 | |
| 1.63 | 2.08 | 0.96 | 1.23 | -22.80 | 31.08 | -24.93 | 134.21 | 0.5443 | -834.6 | -637.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.97 | 30.83 | -25.19 | 134.18 | 0.5484 | -528.0 | -393.3 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -21.33 | 30.50 | -25.52 | 131.43 | 0.5374 | -782.0 | -625.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
