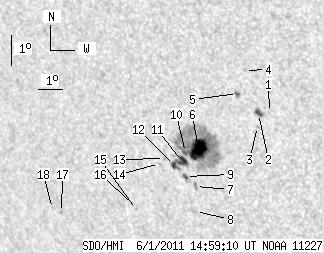

SDO HMI 2011-06-01 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.73 | 177.74 | 25.80 | 115.52 | -20.54 | 19.32 | -36.15 | 121.80 | 0.6519 | 467.8 | 382.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.22 | 22.68 | -32.78 | 122.06 | 0.6055 | -551.0 | -518.8 | |
| 3.79 | 4.34 | 2.37 | 2.71 | -19.25 | 22.25 | -33.21 | 121.81 | 0.6107 | -696.7 | -627.7 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.67 | 22.12 | -33.35 | 122.33 | 0.6149 | -389.0 | -385.3 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.87 | 22.02 | -33.45 | 119.60 | 0.6055 | -684.0 | -584.3 | |
| 0.63 | 2.26 | 0.40 | 1.42 | -18.61 | 21.59 | -33.88 | 120.42 | 0.6148 | -808.3 | -622.9 | |
| 22.76 | 153.38 | 14.77 | 99.55 | -20.40 | 19.61 | -35.86 | 121.76 | 0.6480 | 1069.7 | 442.7 | |
| 0.00 | 2.89 | 0.00 | 1.90 | -21.60 | 19.15 | -36.32 | 123.15 | 0.6599 | 456.0 | 334.0 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -22.41 | 18.91 | -36.56 | 124.10 | 0.6673 | -251.0 | -195.7 | |
| 2.08 | 4.06 | 1.37 | 2.68 | -21.27 | 18.84 | -36.63 | 122.51 | 0.6615 | 484.9 | 449.9 | |
| 0.99 | -6.00 | 0.65 | -6.00 | -20.49 | 19.06 | -36.41 | 121.56 | 0.6548 | 661.5 | 999999 | |
| 6.41 | -6.00 | 4.21 | -6.00 | -20.78 | 18.86 | -36.61 | 121.85 | 0.6586 | 735.5 | 999999 | |
| 3.07 | -6.00 | 2.03 | -6.00 | -20.91 | 18.49 | -36.97 | 121.81 | 0.6634 | 536.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.20 | -20.68 | 18.15 | -37.31 | 121.29 | 0.6660 | 474.0 | 387.6 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -20.84 | 17.90 | -37.57 | 121.37 | 0.6696 | 349.0 | 272.6 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -22.33 | 16.47 | -39.00 | 122.57 | 0.6930 | 573.0 | 523.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -22.17 | 16.36 | -39.11 | 122.29 | 0.6934 | 647.0 | 563.9 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -22.41 | 13.18 | -42.28 | 120.98 | 0.7278 | -674.0 | -586.6 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -22.28 | 12.83 | -42.63 | 120.65 | 0.7308 | -565.0 | -432.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
