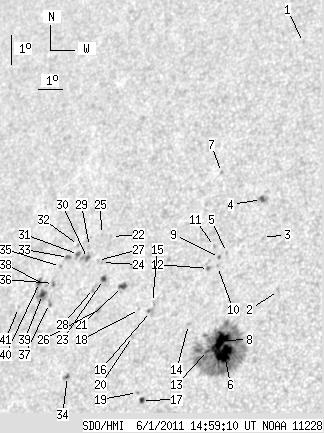

SDO HMI 2011-06-01 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.30 | 278.19 | 34.40 | 178.75 | 17.16 | 19.74 | -35.73 | 61.40 | 0.6369 | -331.8 | -254.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.67 | 26.48 | 21.85 | -33.61 | 47.48 | 0.6745 | 723.0 | 589.8 | |
| 0.00 | 2.35 | 0.00 | 1.46 | 18.27 | 23.08 | -32.39 | 57.62 | 0.6045 | -729.0 | -559.8 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 19.99 | 22.08 | -33.39 | 55.86 | 0.6271 | -605.0 | -426.9 | |
| 1.99 | 4.52 | 1.28 | 2.90 | 21.23 | 21.73 | -33.74 | 54.38 | 0.6391 | -762.3 | -656.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 19.51 | 20.79 | -34.68 | 57.42 | 0.6387 | -533.0 | -447.7 | |
| 18.52 | 193.31 | 11.58 | 121.19 | 16.24 | 21.44 | -34.03 | 61.76 | 0.6121 | -1200.6 | -402.0 | |
| 0.00 | 1.35 | 0.00 | 0.90 | 22.13 | 19.88 | -35.58 | 54.44 | 0.6648 | -613.0 | -481.2 | |
| 15.09 | -6.00 | 9.48 | -6.00 | 16.68 | 21.19 | -34.27 | 61.25 | 0.6175 | -957.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.87 | 19.35 | 20.55 | -34.91 | 57.80 | 0.6404 | -515.0 | -518.1 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 19.06 | 20.55 | -34.92 | 58.21 | 0.6388 | -746.0 | -644.3 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 19.71 | 20.27 | -35.20 | 57.48 | 0.6458 | -643.0 | -485.1 | |
| 0.00 | 1.81 | 0.00 | 1.17 | 19.00 | 20.21 | -35.26 | 58.52 | 0.6423 | -705.0 | -594.7 | |
| 0.54 | -6.00 | 0.34 | -6.00 | 16.37 | 20.76 | -34.71 | 61.98 | 0.6211 | -495.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 17.20 | 19.84 | -35.63 | 61.31 | 0.6366 | -260.0 | -308.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 17.92 | 18.24 | -37.23 | 61.22 | 0.6590 | -201.0 | -317.7 | |
| 0.00 | 4.06 | 0.00 | 2.67 | 17.63 | 18.23 | -37.24 | 61.63 | 0.6577 | -698.0 | -537.4 | |
| 2.44 | 2.71 | 1.57 | 1.74 | 14.80 | 18.50 | -36.97 | 65.56 | 0.6409 | -618.0 | -434.3 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 17.70 | 17.77 | -37.70 | 61.79 | 0.6633 | -152.0 | -114.7 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 15.06 | 18.29 | -37.18 | 65.30 | 0.6446 | -573.0 | -394.7 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 16.84 | 17.70 | -37.77 | 63.04 | 0.6600 | -539.0 | -372.9 | |
| 3.70 | 4.25 | 2.49 | 2.85 | 18.45 | 16.89 | -38.58 | 61.24 | 0.6771 | 787.0 | 813.3 | |
| 0.00 | 1.17 | 0.00 | 0.81 | 20.07 | 15.97 | -39.50 | 59.54 | 0.6954 | 374.0 | 403.1 | |
| 1.99 | 4.16 | 1.35 | 2.83 | 18.68 | 16.04 | -39.43 | 61.37 | 0.6878 | -586.2 | -271.2 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 19.23 | 15.79 | -39.67 | 60.75 | 0.6931 | 728.0 | 504.2 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 20.14 | 15.52 | -39.94 | 59.69 | 0.7005 | 636.0 | 546.0 | |
| 0.00 | 2.53 | 0.00 | 1.71 | 17.71 | 16.09 | -39.38 | 62.65 | 0.6827 | 782.0 | 606.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 19.29 | 15.61 | -39.86 | 60.76 | 0.6955 | 770.0 | 629.7 | |
| 0.00 | 2.44 | 0.00 | 1.66 | 18.39 | 15.70 | -39.77 | 61.93 | 0.6902 | -625.0 | -436.3 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 19.75 | 15.13 | -40.33 | 60.40 | 0.7029 | 246.0 | 315.2 | |
| 1.63 | 4.97 | 1.13 | 3.44 | 19.36 | 15.16 | -40.30 | 60.90 | 0.7007 | 790.0 | 724.3 | |
| 1.35 | 3.61 | 0.95 | 2.52 | 19.50 | 14.74 | -40.72 | 60.94 | 0.7059 | 553.4 | 515.0 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 19.79 | 14.65 | -40.81 | 60.60 | 0.7082 | 229.0 | 275.1 | |
| 0.00 | 1.99 | 0.00 | 1.39 | 19.40 | 14.34 | -41.12 | 61.26 | 0.7098 | 659.0 | 536.0 | |
| 1.08 | 2.53 | 0.73 | 1.71 | 15.59 | 15.34 | -40.13 | 65.96 | 0.6821 | -618.5 | -639.2 | |
| 0.00 | 1.26 | 0.00 | 0.89 | 19.11 | 14.09 | -41.38 | 61.76 | 0.7112 | 696.0 | 575.0 | |
| 0.00 | 1.90 | 0.00 | 1.33 | 18.57 | 13.95 | -41.51 | 62.55 | 0.7103 | 836.0 | 661.1 | |
| 0.00 | 2.71 | 0.00 | 1.89 | 17.92 | 13.97 | -41.50 | 63.40 | 0.7074 | 21.0 | 126.7 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 18.50 | 13.67 | -41.80 | 62.76 | 0.7131 | 694.0 | 594.4 | |
| 3.07 | 15.63 | 2.16 | 11.02 | 18.22 | 13.58 | -41.88 | 63.19 | 0.7129 | 788.1 | 473.7 | |
| 1.90 | -39.00 | 1.34 | -39.00 | 18.60 | 13.34 | -42.13 | 62.79 | 0.7172 | 550.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.97 | 17.81 | 12.66 | -42.80 | 64.13 | 0.7212 | 393.0 | 249.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
