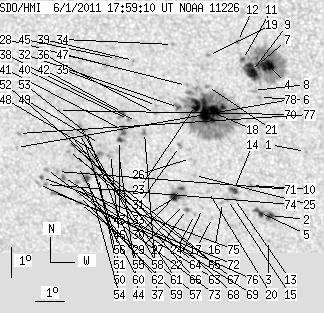

SDO HMI 2011-06-01 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.59 | 512.54 | 57.80 | 283.10 | -20.85 | 36.78 | -17.03 | 141.78 | 0.4430 | 202.7 | 218.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.95 | 40.37 | -13.43 | 149.35 | 0.4244 | 731.0 | 615.8 | |
| 3.88 | 14.09 | 2.17 | 7.87 | -24.05 | 38.95 | -14.85 | 149.52 | 0.4633 | 869.1 | 651.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -24.88 | 38.78 | -15.02 | 150.22 | 0.4753 | 577.0 | 569.5 | |
| 10.12 | 119.41 | 5.46 | 64.44 | -19.16 | 39.36 | -14.44 | 143.46 | 0.3975 | 1425.3 | 605.4 | |
| 4.25 | -2.00 | 2.37 | -2.00 | -23.95 | 38.59 | -15.22 | 148.79 | 0.4649 | 745.2 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -20.19 | 39.00 | -14.81 | 144.39 | 0.4137 | 794.0 | 578.2 | |
| 1.08 | -4.00 | 0.59 | -4.00 | -19.16 | 38.99 | -14.81 | 142.79 | 0.4010 | 1208.4 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -19.96 | 38.82 | -14.99 | 143.73 | 0.4126 | 540.0 | 662.7 | |
| 13.55 | -4.00 | 7.34 | -4.00 | -19.35 | 38.81 | -14.99 | 142.76 | 0.4051 | 1061.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -23.06 | 38.42 | -15.39 | 147.40 | 0.4550 | 908.0 | 780.6 | |
| 1.54 | -4.00 | 0.83 | -4.00 | -18.97 | 38.55 | -15.26 | 141.67 | 0.4030 | 889.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.39 | 38.43 | -15.37 | 140.51 | 0.3972 | 882.0 | 768.7 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -23.48 | 37.78 | -16.02 | 146.92 | 0.4657 | 672.0 | 560.7 | |
| 4.15 | 6.23 | 2.32 | 3.48 | -23.22 | 37.78 | -16.02 | 146.57 | 0.4624 | 961.8 | 703.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -23.51 | 37.54 | -16.27 | 146.57 | 0.4682 | 655.0 | 484.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.61 | 37.35 | -16.45 | 146.41 | 0.4710 | 661.0 | 463.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -24.11 | 36.94 | -16.87 | 146.40 | 0.4806 | -494.0 | -497.1 | |
| 32.52 | 225.35 | 17.88 | 123.98 | -20.64 | 37.30 | -16.51 | 142.17 | 0.4353 | 1295.8 | 402.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.84 | 37.42 | -16.38 | 139.52 | 0.4129 | 883.0 | 686.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -23.25 | 36.91 | -16.89 | 145.25 | 0.4703 | 242.0 | 241.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.83 | 37.29 | -16.52 | 140.90 | 0.4259 | 985.0 | 726.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.81 | 36.63 | -17.17 | 145.56 | 0.4796 | -693.0 | -419.0 | |
| 8.49 | -18.00 | 4.67 | -18.00 | -20.44 | 36.81 | -16.99 | 141.09 | 0.4378 | 979.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.01 | 36.32 | -17.48 | 145.36 | 0.4846 | -759.0 | -627.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.72 | 36.50 | -17.31 | 143.91 | 0.4677 | 777.0 | 698.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -22.16 | 36.43 | -17.37 | 143.03 | 0.4617 | 617.0 | 539.2 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -23.84 | 36.07 | -17.74 | 144.76 | 0.4849 | -763.0 | -665.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -19.80 | 36.58 | -17.22 | 139.71 | 0.4326 | 618.0 | 489.2 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.68 | 36.02 | -17.78 | 144.48 | 0.4833 | -534.0 | -357.2 | |
| 1.81 | 20.23 | 1.02 | 11.42 | -23.15 | 35.99 | -17.81 | 143.73 | 0.4774 | -778.8 | -230.9 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -21.77 | 36.10 | -17.70 | 141.97 | 0.4602 | 853.0 | 700.2 | |
| 1.63 | -18.00 | 0.90 | -18.00 | -20.51 | 36.23 | -17.58 | 140.27 | 0.4443 | 517.8 | 999999 | |
| 5.87 | -30.00 | 3.32 | -30.00 | -23.44 | 35.71 | -18.10 | 143.71 | 0.4834 | -860.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.48 | 36.25 | -17.55 | 137.01 | 0.4213 | 788.0 | 566.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.44 | 35.48 | -18.32 | 139.04 | 0.4511 | 505.0 | 418.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.70 | 35.42 | -18.39 | 139.34 | 0.4547 | 557.0 | 434.4 | |
| 1.17 | 2.44 | 0.66 | 1.36 | -21.31 | 34.96 | -18.84 | 139.60 | 0.4662 | -803.5 | -687.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.95 | 34.73 | -19.07 | 138.73 | 0.4645 | -724.0 | -570.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.99 | 34.88 | -18.93 | 135.80 | 0.4418 | -822.0 | -651.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -20.89 | 34.46 | -19.34 | 138.25 | 0.4666 | -980.0 | -807.8 | |
| 3.52 | 9.03 | 1.98 | 5.08 | -21.25 | 34.24 | -19.56 | 138.49 | 0.4727 | -828.0 | -282.5 | |
| 0.81 | 4.61 | 0.45 | 2.58 | -20.66 | 34.29 | -19.52 | 137.65 | 0.4659 | -1070.6 | -787.9 | |
| 2.08 | -41.00 | 1.17 | -41.00 | -21.57 | 34.06 | -19.75 | 138.72 | 0.4781 | 509.1 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -21.90 | 33.98 | -19.83 | 139.09 | 0.4825 | -848.0 | -686.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -18.92 | 34.31 | -19.50 | 134.87 | 0.4474 | -857.0 | -708.1 | |
| 0.00 | 3.52 | 0.00 | 2.00 | -22.03 | 33.68 | -20.13 | 138.87 | 0.4869 | -737.0 | -777.2 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -19.11 | 33.87 | -19.93 | 134.59 | 0.4542 | -807.0 | -705.4 | |
| 0.00 | 3.79 | 0.00 | 2.15 | -22.02 | 33.29 | -20.51 | 138.36 | 0.4908 | -982.0 | -895.8 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -21.67 | 33.35 | -20.46 | 137.90 | 0.4864 | -703.0 | -731.0 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -22.78 | 33.14 | -20.66 | 139.24 | 0.5003 | -744.0 | -614.2 | |
| 1.35 | 9.66 | 0.77 | 5.53 | -22.51 | 33.04 | -20.76 | 138.74 | 0.4985 | -894.5 | -733.6 | |
| 0.00 | 3.70 | 0.00 | 2.11 | -22.15 | 32.96 | -20.85 | 138.11 | 0.4956 | -780.0 | -747.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.40 | 33.04 | -20.77 | 137.10 | 0.4869 | -748.0 | -621.9 | |
| 2.98 | -51.00 | 1.71 | -51.00 | -22.81 | 32.75 | -21.06 | 138.78 | 0.5046 | -838.9 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -21.24 | 32.92 | -20.88 | 136.70 | 0.4864 | -848.0 | -717.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.50 | 32.81 | -20.99 | 136.95 | 0.4902 | -864.0 | -655.2 | |
| 0.00 | 3.07 | 0.00 | 1.78 | -23.63 | 32.33 | -21.48 | 139.40 | 0.5174 | -717.0 | -598.6 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -21.08 | 32.74 | -21.07 | 136.21 | 0.4866 | -855.0 | -722.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -23.37 | 32.37 | -21.43 | 139.09 | 0.5142 | -878.0 | -656.4 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.41 | 32.49 | -21.31 | 137.89 | 0.5030 | -838.0 | -643.1 | |
| 0.00 | 2.53 | 0.00 | 1.44 | -21.34 | 32.66 | -21.14 | 136.51 | 0.4901 | -606.0 | -638.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -22.94 | 32.37 | -21.43 | 138.49 | 0.5097 | -901.0 | -777.5 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -23.14 | 32.23 | -21.57 | 138.59 | 0.5132 | -726.0 | -560.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -22.02 | 32.42 | -21.39 | 137.22 | 0.4997 | -647.0 | -566.7 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -21.73 | 32.39 | -21.41 | 136.75 | 0.4969 | -1011.0 | -741.6 | |
| 0.00 | 2.98 | 0.00 | 1.70 | -21.34 | 32.35 | -21.46 | 136.11 | 0.4934 | -726.0 | -591.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.92 | 32.22 | -21.58 | 136.82 | 0.5007 | -637.0 | -540.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.53 | 32.21 | -21.59 | 136.23 | 0.4968 | -660.0 | -514.6 | |
| 0.63 | 2.08 | 0.36 | 1.20 | -22.77 | 31.90 | -21.90 | 137.67 | 0.5127 | -938.0 | -803.6 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -20.59 | 32.08 | -21.73 | 134.62 | 0.4888 | -760.0 | -611.1 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -22.58 | 31.72 | -22.08 | 137.16 | 0.5125 | -853.0 | -675.9 | |
| 1.99 | 2.62 | 1.15 | 1.52 | -23.27 | 31.46 | -22.34 | 137.82 | 0.5222 | -721.6 | -691.9 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -22.51 | 31.34 | -22.46 | 136.60 | 0.5157 | -707.0 | -630.3 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -23.00 | 31.22 | -22.58 | 137.16 | 0.5219 | -786.0 | -611.2 | |
| 1.17 | 1.45 | 0.68 | 0.84 | -22.77 | 31.12 | -22.68 | 136.71 | 0.5207 | -814.0 | -826.7 | |
| 0.00 | 2.17 | 0.00 | 1.26 | -23.00 | 30.97 | -22.83 | 136.86 | 0.5245 | -511.0 | -402.2 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -21.33 | 30.55 | -23.26 | 133.92 | 0.5126 | -930.0 | -786.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.79 | 30.40 | -23.41 | 134.43 | 0.5186 | -697.0 | -576.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
