SDO HMI 2011-06-01 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.46 | 20.77 | 9.82 | 16.28 | 19.40 | 6.23 | -47.57 | 64.01 | 0.7764 | -87.8 | -335.2 | |
|
previous
or next observation for the same group /

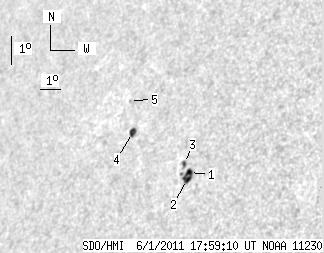

back to the solar disc SDO HMI 2011-06-01 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 11.83 | 2.77 | 9.06 | 19.00 | 7.31 | -46.49 | 64.12 | 0.7645 | -666.0 | -554.4 | |
| 3.34 | -1.00 | 2.56 | -1.00 | 18.77 | 7.25 | -46.55 | 64.42 | 0.7643 | -620.0 | 999999 | |
| 0.90 | 2.98 | 0.70 | 2.30 | 19.29 | 6.97 | -46.83 | 63.88 | 0.7690 | -566.7 | -398.2 | |
| 4.61 | 5.51 | 3.79 | 4.54 | 20.32 | 4.01 | -49.79 | 63.69 | 0.8011 | 611.3 | 470.0 | |
| 0.00 | 0.45 | 0.00 | 0.38 | 21.38 | 3.37 | -50.43 | 62.66 | 0.8103 | 562.0 | 510.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
