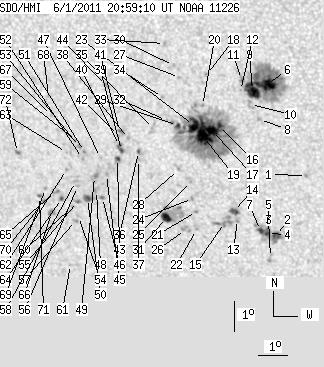

SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.34 | 535.98 | 56.53 | 293.84 | -21.02 | 36.88 | -15.26 | 144.94 | 0.4288 | 308.2 | 242.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.79 | -22.10 | 40.37 | -11.77 | 152.71 | 0.4139 | 953.0 | 851.4 | |
| 5.24 | 27.73 | 2.90 | 15.38 | -24.07 | 39.17 | -12.97 | 152.77 | 0.4496 | 881.6 | 596.9 | |
| 0.00 | 3.25 | 0.00 | 1.81 | -24.80 | 38.89 | -13.25 | 153.08 | 0.4615 | 661.0 | 596.2 | |
| 1.90 | -2.00 | 1.05 | -2.00 | -24.01 | 38.87 | -13.27 | 152.17 | 0.4509 | 917.7 | 999999 | |
| 0.27 | -2.00 | 0.15 | -2.00 | -23.84 | 38.89 | -13.25 | 152.01 | 0.4485 | 1098.3 | 999999 | |
| 17.07 | 110.57 | 9.15 | 59.25 | -19.15 | 39.29 | -12.85 | 146.54 | 0.3828 | 1337.6 | 540.8 | |
| 1.90 | -2.00 | 1.05 | -2.00 | -23.91 | 38.64 | -13.50 | 151.65 | 0.4512 | 879.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -20.28 | 38.96 | -13.18 | 147.57 | 0.4004 | 760.0 | 576.3 | |
| 15.27 | -6.00 | 8.21 | -6.00 | -19.34 | 38.81 | -13.33 | 145.88 | 0.3896 | 1050.8 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.14 | -19.79 | 38.70 | -13.44 | 146.36 | 0.3964 | 590.0 | 602.0 | |
| 0.00 | 2.89 | 0.00 | 1.55 | -18.99 | 38.47 | -13.67 | 144.68 | 0.3881 | 860.0 | 719.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.34 | 38.41 | -13.73 | 145.11 | 0.3932 | 704.0 | 512.0 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -23.54 | 37.90 | -14.24 | 149.93 | 0.4521 | 697.0 | 636.5 | |
| 4.34 | 4.97 | 2.40 | 2.75 | -23.28 | 37.79 | -14.35 | 149.43 | 0.4495 | 994.5 | 848.9 | |
| 0.00 | 11.83 | 0.00 | 6.58 | -23.64 | 37.44 | -14.70 | 149.28 | 0.4570 | 776.0 | 548.6 | |
| 3.34 | 238.39 | 1.82 | 130.22 | -20.50 | 37.57 | -14.57 | 145.30 | 0.4156 | 1211.8 | 405.6 | |
| 6.96 | -16.00 | 3.79 | -16.00 | -20.63 | 37.36 | -14.78 | 145.11 | 0.4192 | 1457.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.83 | 37.33 | -14.81 | 142.26 | 0.3971 | 944.0 | 687.1 | |
| 16.62 | -16.00 | 9.09 | -16.00 | -20.82 | 37.03 | -15.11 | 144.82 | 0.4246 | 1189.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.82 | 37.10 | -15.04 | 143.44 | 0.4115 | 973.0 | 744.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -23.27 | 36.52 | -15.62 | 147.31 | 0.4598 | 562.0 | 435.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -23.87 | 36.45 | -15.69 | 147.95 | 0.4679 | -793.0 | -558.2 | |
| 10.30 | -16.00 | 5.62 | -16.00 | -20.47 | 36.73 | -15.41 | 143.78 | 0.4229 | 985.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -22.85 | 36.43 | -15.70 | 146.62 | 0.4552 | 771.0 | 621.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -22.29 | 36.43 | -15.71 | 145.86 | 0.4482 | 811.0 | 671.6 | |
| 0.00 | 4.43 | 0.00 | 2.48 | -23.87 | 36.07 | -16.07 | 147.34 | 0.4710 | -727.0 | -582.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.92 | 36.42 | -15.72 | 140.80 | 0.4073 | 826.0 | 602.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -21.90 | 36.07 | -16.07 | 144.73 | 0.4466 | 869.0 | 724.2 | |
| 1.99 | -16.00 | 1.09 | -16.00 | -20.47 | 36.19 | -15.95 | 142.86 | 0.4280 | 436.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.54 | 36.26 | -15.88 | 139.88 | 0.4044 | 806.0 | 557.1 | |
| 6.41 | 27.28 | 3.60 | 15.28 | -23.47 | 35.46 | -16.68 | 145.89 | 0.4713 | -905.2 | -302.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -20.30 | 35.84 | -16.30 | 142.02 | 0.4295 | 657.0 | 497.0 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -17.84 | 36.02 | -16.12 | 138.27 | 0.3987 | -835.0 | -704.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -19.56 | 35.78 | -16.35 | 140.76 | 0.4212 | 822.0 | 659.3 | |
| 0.00 | 5.51 | 0.00 | 3.03 | -20.56 | 35.37 | -16.77 | 141.65 | 0.4371 | 388.0 | 365.2 | |
| 0.99 | 1.45 | 0.55 | 0.80 | -21.31 | 34.77 | -17.37 | 141.82 | 0.4517 | -752.4 | -716.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -21.57 | 34.74 | -17.40 | 142.15 | 0.4550 | -760.0 | -658.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -20.88 | 34.48 | -17.66 | 140.74 | 0.4496 | -973.0 | -789.7 | |
| 1.90 | 4.61 | 1.06 | 2.56 | -21.27 | 34.19 | -17.94 | 140.88 | 0.4569 | -821.6 | -760.2 | |
| 0.63 | -39.00 | 0.35 | -39.00 | -21.11 | 34.15 | -17.99 | 140.57 | 0.4555 | -892.3 | 999999 | |
| 1.08 | 2.62 | 0.60 | 1.45 | -20.62 | 34.21 | -17.93 | 139.92 | 0.4494 | -727.2 | -906.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -20.78 | 34.15 | -17.99 | 140.08 | 0.4518 | -743.0 | -642.3 | |
| 1.54 | 3.07 | 0.86 | 1.71 | -21.53 | 34.02 | -18.12 | 141.01 | 0.4616 | 440.8 | 130.1 | |
| 0.00 | 3.34 | 0.00 | 1.84 | -19.17 | 33.94 | -18.20 | 137.19 | 0.4360 | -883.0 | -660.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -22.05 | 33.57 | -18.56 | 141.11 | 0.4719 | -948.0 | -850.4 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -22.80 | 33.33 | -18.81 | 141.82 | 0.4828 | -891.0 | -698.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.50 | 33.44 | -18.70 | 140.10 | 0.4669 | -761.0 | -612.4 | |
| 0.00 | 2.89 | 0.00 | 1.63 | -22.57 | 33.15 | -18.98 | 141.25 | 0.4819 | -920.0 | -831.7 | |
| 0.00 | 6.96 | 0.00 | 3.92 | -22.12 | 33.15 | -18.99 | 140.59 | 0.4767 | -1075.0 | -810.9 | |
| 2.89 | 6.14 | 1.64 | 3.48 | -22.84 | 32.80 | -19.34 | 141.13 | 0.4882 | -900.2 | -754.2 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -21.30 | 32.92 | -19.22 | 139.06 | 0.4700 | -874.0 | -809.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.53 | 32.82 | -19.32 | 139.26 | 0.4735 | -786.0 | -674.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.14 | 32.77 | -19.37 | 138.60 | 0.4698 | -871.0 | -736.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.43 | 32.40 | -19.74 | 141.39 | 0.4987 | -816.0 | -684.1 | |
| 0.36 | 2.98 | 0.21 | 1.70 | -22.93 | 32.44 | -19.70 | 140.76 | 0.4928 | -964.0 | -734.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -22.44 | 32.51 | -19.63 | 140.16 | 0.4866 | -835.0 | -616.1 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -23.56 | 32.27 | -19.87 | 141.40 | 0.5013 | -761.0 | -680.0 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -22.28 | 32.47 | -19.67 | 139.87 | 0.4853 | -832.0 | -663.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.94 | 32.65 | -19.48 | 138.15 | 0.4688 | -794.0 | -587.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -23.10 | 32.24 | -19.90 | 140.72 | 0.4965 | -657.0 | -559.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -25.02 | 31.85 | -20.29 | 142.78 | 0.5215 | -564.0 | -504.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.88 | 32.21 | -19.93 | 138.94 | 0.4835 | -687.0 | -570.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.33 | 32.29 | -19.85 | 138.23 | 0.4767 | -586.0 | -509.8 | |
| 1.35 | 1.63 | 0.77 | 0.93 | -22.83 | 31.89 | -20.25 | 139.88 | 0.4970 | -819.9 | -875.3 | |
| 0.00 | 2.98 | 0.00 | 1.70 | -22.60 | 31.72 | -20.42 | 139.32 | 0.4962 | -643.0 | -695.7 | |
| 0.00 | 4.25 | 0.00 | 2.44 | -23.29 | 31.46 | -20.67 | 139.97 | 0.5061 | -804.0 | -661.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.13 | 31.94 | -20.20 | 135.89 | 0.4678 | -725.0 | -497.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.49 | 31.92 | -20.22 | 134.83 | 0.4613 | -679.0 | -579.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -22.50 | 31.38 | -20.76 | 138.74 | 0.4985 | -733.0 | -530.0 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.93 | 31.24 | -20.90 | 139.17 | 0.5044 | -766.0 | -625.4 | |
| 0.99 | 1.72 | 0.57 | 0.98 | -22.76 | 31.13 | -21.01 | 138.78 | 0.5038 | -695.9 | -601.6 | |
| 0.00 | 2.53 | 0.00 | 1.44 | -21.32 | 30.58 | -21.56 | 135.97 | 0.4945 | -981.0 | -772.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
