SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.40 | 285.27 | 31.73 | 175.62 | 17.12 | 19.97 | -32.17 | 59.15 | 0.5940 | -303.9 | -246.5 | |
|
previous
or next observation for the same group /

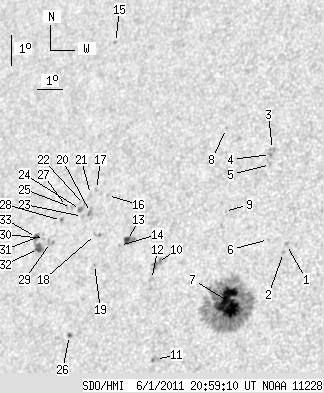

back to the solar disc SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.08 | 18.36 | 23.02 | -29.11 | 54.94 | 0.5663 | -851.0 | -606.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 18.10 | 22.96 | -29.18 | 55.39 | 0.5652 | -892.0 | -753.6 | |
| 0.00 | 2.35 | 0.00 | 1.45 | 21.45 | 21.86 | -30.28 | 51.41 | 0.6026 | -653.0 | -641.0 | |
| 0.00 | 2.53 | 0.00 | 1.57 | 21.29 | 21.82 | -30.32 | 51.67 | 0.6018 | -884.0 | -775.5 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 20.96 | 21.90 | -30.24 | 52.07 | 0.5985 | -407.0 | -431.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 18.52 | 22.33 | -29.81 | 55.28 | 0.5757 | -726.0 | -610.7 | |
| 39.48 | 211.65 | 23.86 | 127.95 | 16.51 | 21.26 | -30.88 | 59.21 | 0.5750 | -1101.1 | -392.5 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 22.15 | 19.92 | -32.22 | 52.01 | 0.6288 | -718.0 | -646.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 19.44 | 20.49 | -31.65 | 55.38 | 0.6034 | -513.0 | -556.8 | |
| 0.00 | 7.05 | 0.00 | 4.43 | 17.81 | 18.29 | -33.85 | 59.33 | 0.6188 | -615.0 | -577.4 | |
| 0.00 | 4.25 | 0.00 | 2.61 | 14.72 | 18.81 | -33.33 | 63.67 | 0.5951 | -122.0 | -305.0 | |
| 0.00 | 2.44 | 0.00 | 1.53 | 17.27 | 18.17 | -33.97 | 60.20 | 0.6170 | -243.0 | -246.1 | |
| 3.70 | 7.68 | 2.38 | 4.93 | 18.53 | 16.96 | -35.18 | 59.16 | 0.6386 | 869.1 | 757.4 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 18.37 | 16.68 | -35.46 | 59.56 | 0.6409 | 746.0 | 636.3 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 25.06 | 14.53 | -37.61 | 52.03 | 0.7036 | 529.0 | 450.9 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 19.99 | 15.79 | -36.35 | 57.84 | 0.6602 | 664.0 | 577.7 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 20.19 | 15.29 | -36.85 | 57.88 | 0.6668 | 725.0 | 562.2 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 18.73 | 15.64 | -36.50 | 59.68 | 0.6549 | -383.0 | -345.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 17.76 | 15.83 | -36.30 | 60.93 | 0.6474 | 668.0 | 521.6 | |
| 0.00 | 3.88 | 0.00 | 2.56 | 19.44 | 15.25 | -36.89 | 58.92 | 0.6631 | 932.0 | 694.4 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 20.03 | 15.09 | -37.05 | 58.22 | 0.6681 | 562.0 | 522.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 19.71 | 14.94 | -37.20 | 58.75 | 0.6681 | 711.0 | 634.2 | |
| 0.00 | 1.72 | 0.00 | 1.14 | 19.32 | 14.96 | -37.18 | 59.27 | 0.6657 | 598.0 | 541.4 | |
| 0.00 | 2.53 | 0.00 | 1.68 | 19.54 | 14.82 | -37.32 | 59.04 | 0.6685 | 805.0 | 660.6 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 19.61 | 14.43 | -37.71 | 59.17 | 0.6732 | 724.0 | 470.4 | |
| 1.63 | 1.90 | 1.05 | 1.22 | 15.51 | 15.35 | -36.79 | 64.46 | 0.6419 | -652.9 | -636.0 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 19.65 | 14.22 | -37.92 | 59.25 | 0.6757 | 549.0 | 463.5 | |
| 0.00 | 2.08 | 0.00 | 1.39 | 19.19 | 14.14 | -38.00 | 59.91 | 0.6743 | 807.0 | 646.7 | |
| 0.00 | 4.43 | 0.00 | 2.96 | 18.49 | 13.88 | -38.26 | 61.02 | 0.6736 | 631.0 | 701.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 18.62 | 13.60 | -38.54 | 61.00 | 0.6774 | 699.0 | 601.4 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 18.75 | 13.52 | -38.62 | 60.86 | 0.6789 | 462.0 | 441.4 | |
| 3.52 | 10.75 | 2.37 | 7.24 | 18.30 | 13.44 | -38.70 | 61.52 | 0.6777 | 794.4 | 547.1 | |
| 3.07 | -32.00 | 2.07 | -32.00 | 18.65 | 13.26 | -38.88 | 61.13 | 0.6814 | 508.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
