SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.63 | 30.62 | 12.00 | 23.40 | 19.52 | 5.93 | -46.20 | 63.36 | 0.7629 | -43.0 | -123.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

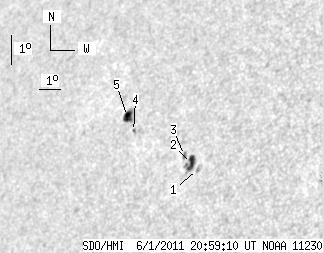

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.44 | 0.00 | 1.79 | 18.63 | 7.88 | -44.25 | 63.69 | 0.7399 | -698.0 | -604.4 | |
| 7.41 | 12.01 | 5.47 | 8.89 | 18.83 | 7.55 | -44.59 | 63.58 | 0.7442 | -723.5 | -489.6 | |
| 0.45 | 2.80 | 0.34 | 2.09 | 19.09 | 7.14 | -45.00 | 63.42 | 0.7495 | -519.8 | -334.5 | |
| 0.00 | 1.63 | 0.00 | 1.28 | 19.89 | 4.45 | -47.69 | 63.47 | 0.7795 | 660.0 | 522.4 | |
| 7.77 | 11.74 | 6.19 | 9.35 | 20.38 | 3.96 | -48.18 | 63.05 | 0.7859 | 653.7 | 399.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
