SDO HMI 2011-06-01 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.78 | 535.39 | 57.03 | 292.19 | -21.06 | 36.85 | -14.18 | 146.95 | 0.4198 | 287.6 | 210.8 | |
|
previous
or next observation for the same group /

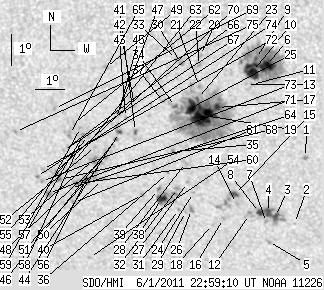

back to the solar disc SDO HMI 2011-06-01 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.08 | -22.12 | 40.37 | -10.66 | 154.95 | 0.4066 | 940.0 | 705.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -24.30 | 39.81 | -11.22 | 156.20 | 0.4411 | -657.0 | -484.9 | |
| 3.16 | 23.76 | 1.74 | 13.11 | -24.07 | 39.19 | -11.84 | 154.80 | 0.4419 | 869.1 | 682.9 | |
| 5.06 | -3.00 | 2.79 | -3.00 | -23.93 | 38.96 | -12.07 | 154.24 | 0.4415 | 996.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -24.90 | 38.87 | -12.16 | 155.09 | 0.4555 | 728.0 | 559.7 | |
| 11.20 | 117.00 | 5.98 | 62.43 | -19.14 | 39.30 | -11.73 | 148.86 | 0.3731 | 1381.6 | 555.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -24.26 | 38.86 | -12.17 | 154.42 | 0.4468 | 1.0 | 78.7 | |
| 3.34 | -3.00 | 1.85 | -3.00 | -23.93 | 38.66 | -12.37 | 153.69 | 0.4436 | 815.9 | 999999 | |
| 1.08 | -6.00 | 0.58 | -6.00 | -18.92 | 38.95 | -12.08 | 147.80 | 0.3730 | 1060.0 | 999999 | |
| 17.26 | -6.00 | 9.23 | -6.00 | -19.34 | 38.82 | -12.21 | 148.15 | 0.3797 | 1068.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.75 | 38.76 | -12.27 | 148.62 | 0.3859 | 630.0 | 483.2 | |
| 0.00 | 4.61 | 0.00 | 2.55 | -24.00 | 38.31 | -12.72 | 153.14 | 0.4470 | -56.0 | -41.5 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -19.75 | 38.59 | -12.44 | 148.29 | 0.3873 | 709.0 | 589.5 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -23.63 | 37.90 | -13.13 | 152.00 | 0.4450 | 643.0 | 558.2 | |
| 3.79 | 15.81 | 2.09 | 8.74 | -23.34 | 37.87 | -13.16 | 151.58 | 0.4412 | 1002.2 | 676.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -24.13 | 37.41 | -13.62 | 151.70 | 0.4553 | 578.0 | 274.3 | |
| 3.16 | 237.07 | 1.71 | 128.93 | -20.49 | 37.56 | -13.47 | 147.34 | 0.4059 | 1197.7 | 378.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -24.33 | 37.01 | -14.02 | 151.25 | 0.4609 | -625.0 | -365.0 | |
| 29.91 | -17.00 | 16.26 | -17.00 | -20.75 | 37.07 | -13.96 | 146.79 | 0.4135 | 1237.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -18.82 | 37.15 | -13.88 | 144.01 | 0.3881 | 677.0 | 532.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -19.81 | 37.03 | -14.00 | 145.33 | 0.4019 | 1052.0 | 849.3 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -19.14 | 37.09 | -13.94 | 144.40 | 0.3928 | 908.0 | 668.0 | |
| 1.26 | -17.00 | 0.69 | -17.00 | -20.20 | 36.92 | -14.11 | 145.72 | 0.4078 | 917.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -23.27 | 36.47 | -14.55 | 149.08 | 0.4511 | 484.0 | 376.2 | |
| 9.94 | -17.00 | 5.40 | -17.00 | -20.49 | 36.70 | -14.33 | 145.73 | 0.4135 | 1039.1 | 999999 | |
| 0.00 | 3.61 | 0.00 | 2.01 | -23.83 | 36.34 | -14.69 | 149.55 | 0.4595 | -906.0 | -717.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -22.94 | 36.31 | -14.72 | 148.38 | 0.4482 | 632.0 | 533.4 | |
| 0.00 | 2.53 | 0.00 | 1.39 | -22.28 | 36.31 | -14.72 | 147.53 | 0.4398 | 642.0 | 529.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -23.89 | 36.13 | -14.90 | 149.27 | 0.4620 | -522.0 | -451.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.07 | 36.49 | -14.54 | 143.19 | 0.3976 | 848.0 | 743.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -23.83 | 35.89 | -15.13 | 148.81 | 0.4630 | -677.0 | -471.8 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -23.13 | 35.94 | -15.09 | 148.02 | 0.4538 | -835.0 | -525.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.95 | 36.34 | -14.69 | 142.70 | 0.3975 | 848.0 | 695.9 | |
| 1.26 | -17.00 | 0.69 | -17.00 | -20.46 | 36.16 | -14.87 | 144.72 | 0.4180 | 614.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.92 | 35.94 | -15.09 | 146.42 | 0.4383 | 884.0 | 726.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -22.61 | 35.70 | -15.33 | 146.92 | 0.4492 | 564.0 | 483.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.30 | 35.78 | -15.25 | 143.80 | 0.4195 | 742.0 | 593.8 | |
| 5.60 | 22.32 | 3.13 | 12.45 | -23.46 | 35.35 | -15.68 | 147.47 | 0.4628 | -937.5 | -327.8 | |
| 0.63 | -38.00 | 0.35 | -38.00 | -23.16 | 35.29 | -15.74 | 146.98 | 0.4597 | -851.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -23.33 | 34.72 | -16.31 | 146.28 | 0.4666 | -858.0 | -715.9 | |
| 1.45 | 1.81 | 0.80 | 1.00 | -21.27 | 34.72 | -16.31 | 143.46 | 0.4413 | -786.5 | -736.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -20.42 | 34.78 | -16.25 | 142.30 | 0.4305 | -677.0 | -513.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.81 | 34.44 | -16.59 | 142.32 | 0.4385 | -924.0 | -721.8 | |
| 1.72 | 4.43 | 0.95 | 2.45 | -21.30 | 34.18 | -16.85 | 142.62 | 0.4468 | -808.5 | -737.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -20.65 | 34.22 | -16.81 | 141.72 | 0.4387 | -980.0 | -751.4 | |
| 0.36 | 1.08 | 0.20 | 0.60 | -21.52 | 34.01 | -17.02 | 142.69 | 0.4511 | 779.5 | 615.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -20.84 | 34.09 | -16.94 | 141.82 | 0.4422 | -583.0 | -597.2 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -22.08 | 33.60 | -17.43 | 142.85 | 0.4615 | -840.0 | -683.8 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -19.20 | 33.94 | -17.09 | 138.98 | 0.4247 | -832.0 | -702.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -22.83 | 33.40 | -17.63 | 143.59 | 0.4723 | -859.0 | -677.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.31 | 33.43 | -17.60 | 142.92 | 0.4658 | -786.0 | -672.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -21.75 | 33.30 | -17.73 | 141.92 | 0.4605 | -833.0 | -729.8 | |
| 0.00 | 5.51 | 0.00 | 3.08 | -22.17 | 33.17 | -17.86 | 142.34 | 0.4667 | -1128.0 | -897.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -25.42 | 32.56 | -18.47 | 145.74 | 0.5102 | -570.0 | -447.8 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -21.39 | 33.10 | -17.93 | 141.10 | 0.4583 | -879.0 | -789.9 | |
| 2.17 | 8.94 | 1.22 | 5.03 | -22.86 | 32.80 | -18.23 | 142.76 | 0.4781 | -921.7 | -765.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -21.36 | 32.94 | -18.09 | 140.80 | 0.4595 | -1033.0 | -897.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.55 | 32.84 | -18.19 | 140.95 | 0.4627 | -896.0 | -694.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.13 | 32.86 | -18.17 | 140.35 | 0.4577 | -792.0 | -701.0 | |
| 1.26 | 3.52 | 0.71 | 1.99 | -22.96 | 32.48 | -18.55 | 142.42 | 0.4823 | -921.6 | -727.0 | |
| 0.00 | 2.62 | 0.00 | 1.49 | -23.59 | 32.28 | -18.75 | 142.99 | 0.4913 | -687.0 | -583.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -21.00 | 32.64 | -18.39 | 139.82 | 0.4584 | -800.0 | -701.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.34 | 32.39 | -18.64 | 141.42 | 0.4760 | -692.0 | -611.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.12 | 32.24 | -18.79 | 142.31 | 0.4864 | -762.0 | -544.8 | |
| 0.00 | 3.61 | 0.00 | 2.02 | -21.36 | 32.45 | -18.57 | 140.09 | 0.4643 | -706.0 | -650.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -21.78 | 32.33 | -18.70 | 140.53 | 0.4703 | -843.0 | -635.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.88 | 32.18 | -18.85 | 140.45 | 0.4729 | -657.0 | -559.1 | |
| 1.17 | 2.44 | 0.66 | 1.38 | -22.83 | 31.90 | -19.13 | 141.42 | 0.4862 | -848.2 | -752.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -20.51 | 32.05 | -18.98 | 138.21 | 0.4590 | -790.0 | -651.9 | |
| 0.00 | 3.98 | 0.00 | 2.25 | -22.60 | 31.76 | -19.27 | 140.90 | 0.4850 | -706.0 | -657.0 | |
| 0.00 | 3.98 | 0.00 | 2.26 | -23.29 | 31.45 | -19.58 | 141.43 | 0.4957 | -832.0 | -662.5 | |
| 0.00 | 2.17 | 0.00 | 1.23 | -22.50 | 31.36 | -19.67 | 140.20 | 0.4878 | -669.0 | -501.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.89 | 31.26 | -19.77 | 140.63 | 0.4931 | -817.0 | -654.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.73 | 31.11 | -19.92 | 140.19 | 0.4927 | -725.0 | -591.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.25 | 30.60 | -20.43 | 137.34 | 0.4821 | -876.0 | -742.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
