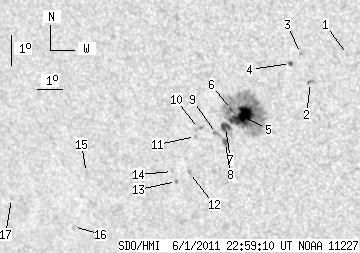

SDO HMI 2011-06-01 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.21 | 177.53 | 23.63 | 109.93 | -20.62 | 19.12 | -31.91 | 124.81 | 0.6044 | 614.4 | 421.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | -18.49 | 23.78 | -27.25 | 125.35 | 0.5344 | -732.0 | -538.6 | |
| 0.00 | 3.16 | 0.00 | 1.89 | -19.38 | 22.27 | -28.76 | 125.43 | 0.5591 | -895.0 | -703.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -18.45 | 22.08 | -28.95 | 123.81 | 0.5547 | -771.0 | -652.4 | |
| 1.36 | 1.99 | 0.81 | 1.19 | -18.77 | 21.65 | -29.38 | 123.96 | 0.5621 | -688.7 | -677.1 | |
| 26.29 | 145.19 | 16.23 | 89.55 | -20.46 | 19.50 | -31.53 | 124.84 | 0.5992 | 1113.9 | 500.4 | |
| 1.26 | -5.00 | 0.78 | -5.00 | -20.24 | 19.13 | -31.90 | 124.23 | 0.6019 | 464.1 | 999999 | |
| 6.14 | -5.00 | 3.83 | -5.00 | -20.78 | 18.77 | -32.26 | 124.76 | 0.6097 | 760.2 | 999999 | |
| 3.16 | 8.40 | 1.98 | 5.27 | -21.30 | 18.64 | -32.39 | 125.41 | 0.6146 | 649.2 | 472.2 | |
| 0.00 | 3.70 | 0.00 | 2.32 | -21.01 | 18.37 | -32.66 | 124.79 | 0.6157 | 621.0 | 444.6 | |
| 0.00 | 2.98 | 0.00 | 1.88 | -20.84 | 17.71 | -33.32 | 124.09 | 0.6221 | 547.0 | 496.8 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -21.10 | 17.52 | -33.51 | 124.33 | 0.6258 | 741.0 | 523.3 | |
| 0.00 | 2.26 | 0.00 | 1.45 | -22.27 | 16.97 | -34.06 | 125.58 | 0.6395 | 700.0 | 569.4 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -22.57 | 16.37 | -34.66 | 125.57 | 0.6479 | 691.0 | 564.9 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -22.24 | 16.31 | -34.72 | 125.08 | 0.6465 | 645.0 | 565.6 | |
| 0.00 | 1.45 | 0.00 | 0.98 | -22.25 | 12.78 | -38.25 | 122.91 | 0.6848 | -615.0 | -479.9 | |
| 0.00 | 1.81 | 0.00 | 1.26 | -24.03 | 11.61 | -39.42 | 124.57 | 0.7066 | -535.0 | -438.1 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -23.09 | 9.25 | -41.78 | 122.12 | 0.7260 | -585.0 | -490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
