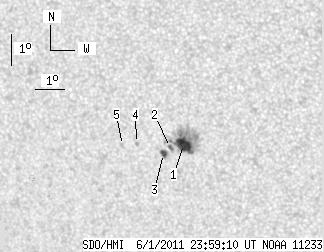

SDO HMI 2011-06-01 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.88 | 71.30 | 11.23 | 40.22 | -17.75 | 27.07 | -23.41 | 128.01 | 0.4821 | 914.8 | 529.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.82 | 60.00 | 8.36 | 33.79 | -17.73 | 27.24 | -23.24 | 128.16 | 0.4798 | 1057.8 | 529.5 | |
| 1.45 | 2.89 | 0.82 | 1.64 | -17.82 | 26.78 | -23.70 | 127.80 | 0.4862 | 681.6 | 637.5 | |
| 3.61 | 4.61 | 2.05 | 2.62 | -18.01 | 26.50 | -23.97 | 127.83 | 0.4912 | 706.4 | 561.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -17.69 | 25.60 | -24.87 | 126.33 | 0.4994 | 642.0 | 455.7 | |
| 0.00 | 2.17 | 0.00 | 1.24 | -17.75 | 25.10 | -25.38 | 125.93 | 0.5061 | 611.0 | 495.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
