SDO HMI 2011-06-02 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.41 | 43.67 | 3.39 | 23.03 | 17.49 | 42.03 | -7.34 | 21.23 | 0.3410 | 78.0 | -55.5 | |
|
previous
or next observation for the same group /

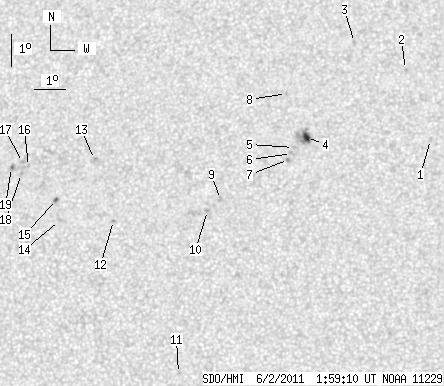

back to the solar disc SDO HMI 2011-06-02 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.95 | 18.09 | 48.44 | -0.93 | 2.76 | 0.3221 | 755.0 | 559.7 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.35 | 47.62 | -1.75 | 4.59 | 0.3601 | 740.0 | 623.9 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 21.23 | 45.94 | -3.43 | 8.53 | 0.3775 | 588.0 | 409.9 | |
| 4.79 | 14.82 | 2.52 | 7.79 | 18.15 | 44.47 | -4.90 | 14.19 | 0.3329 | -1047.1 | -529.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.83 | 44.06 | -5.31 | 15.58 | 0.3295 | -778.0 | -636.2 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 17.64 | 44.00 | -5.37 | 15.91 | 0.3267 | -886.0 | -663.5 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 17.45 | 43.91 | -5.46 | 16.34 | 0.3241 | -1148.0 | -928.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.57 | 43.78 | -5.59 | 14.92 | 0.3583 | 795.0 | 561.2 | |
| 0.00 | 2.53 | 0.00 | 1.32 | 16.18 | 41.78 | -7.59 | 23.74 | 0.3165 | -972.0 | -689.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.83 | 41.38 | -7.99 | 25.33 | 0.3140 | -955.0 | -689.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.73 | 40.64 | -8.73 | 37.25 | 0.2475 | -775.0 | -525.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 15.52 | 38.39 | -10.99 | 33.51 | 0.3340 | 838.0 | 663.6 | |
| 0.00 | 2.53 | 0.00 | 1.35 | 17.46 | 37.65 | -11.72 | 32.03 | 0.3669 | 1097.0 | 685.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 15.52 | 36.64 | -12.73 | 37.43 | 0.3508 | 773.0 | 676.0 | |
| 0.63 | 1.63 | 0.34 | 0.86 | 16.19 | 36.50 | -12.87 | 36.55 | 0.3607 | 1068.7 | 904.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.24 | 35.51 | -13.86 | 36.78 | 0.3837 | 739.0 | 589.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 17.37 | 35.31 | -14.06 | 36.97 | 0.3873 | 746.0 | 616.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.02 | 35.30 | -14.07 | 37.56 | 0.3829 | 820.0 | 621.4 | |
| 0.99 | 1.99 | 0.53 | 1.07 | 17.21 | 34.96 | -14.41 | 37.90 | 0.3887 | 792.5 | 749.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
