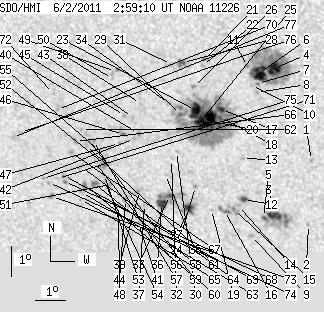

SDO HMI 2011-06-02 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.03 | 542.97 | 56.73 | 293.91 | -21.15 | 36.81 | -12.01 | 151.20 | 0.4036 | 257.7 | 210.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.02 | -22.13 | 40.32 | -8.50 | 159.55 | 0.3937 | 881.0 | 632.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -24.24 | 40.08 | -8.74 | 160.95 | 0.4264 | -526.0 | -411.4 | |
| 7.95 | 34.35 | 4.36 | 18.83 | -23.94 | 38.99 | -9.83 | 158.52 | 0.4279 | 1047.7 | 483.0 | |
| 9.58 | 115.51 | 5.08 | 61.21 | -19.15 | 39.25 | -9.57 | 153.74 | 0.3567 | 1420.7 | 555.2 | |
| 1.18 | -3.00 | 0.64 | -3.00 | -24.00 | 38.58 | -10.24 | 157.78 | 0.4313 | 698.3 | 999999 | |
| 16.36 | -4.00 | 8.69 | -4.00 | -19.31 | 38.75 | -10.07 | 152.80 | 0.3627 | 1096.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.63 | 38.69 | -10.13 | 153.10 | 0.3676 | 697.0 | 591.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.92 | 38.64 | -10.18 | 153.36 | 0.3722 | 671.0 | 573.6 | |
| 0.00 | 2.26 | 0.00 | 1.25 | -24.60 | 38.12 | -10.70 | 157.48 | 0.4426 | 700.0 | 565.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.69 | 38.49 | -10.33 | 152.74 | 0.3701 | 437.0 | 458.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -19.08 | 38.40 | -10.42 | 151.70 | 0.3621 | 931.0 | 762.1 | |
| 2.98 | 4.70 | 1.63 | 2.57 | -23.41 | 37.95 | -10.87 | 155.97 | 0.4267 | 1016.2 | 664.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.06 | 38.03 | -10.79 | 154.65 | 0.4071 | -577.0 | -464.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -23.61 | 37.77 | -11.06 | 155.82 | 0.4307 | 912.0 | 671.2 | |
| 0.00 | 5.88 | 0.00 | 3.23 | -23.74 | 37.59 | -11.24 | 155.61 | 0.4337 | 984.0 | 725.4 | |
| 0.00 | 5.33 | 0.00 | 2.93 | -23.77 | 37.28 | -11.54 | 155.07 | 0.4362 | 745.0 | 712.7 | |
| 2.89 | 224.06 | 1.55 | 120.91 | -20.47 | 37.45 | -11.37 | 151.51 | 0.3888 | 1247.7 | 404.4 | |
| 1.90 | -17.00 | 1.02 | -17.00 | -20.73 | 37.40 | -11.42 | 151.73 | 0.3928 | 1000.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -23.74 | 36.84 | -11.98 | 154.22 | 0.4387 | -141.0 | -221.4 | |
| 29.19 | -17.00 | 15.75 | -17.00 | -20.82 | 36.96 | -11.86 | 150.96 | 0.3976 | 1256.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.86 | 37.01 | -11.81 | 148.31 | 0.3703 | 1010.0 | 761.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.05 | 36.93 | -11.89 | 148.42 | 0.3736 | 723.0 | 561.3 | |
| 11.48 | -17.00 | 6.19 | -17.00 | -20.50 | 36.59 | -12.24 | 149.78 | 0.3961 | 1087.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -22.98 | 36.37 | -12.45 | 152.49 | 0.4316 | 749.0 | 591.6 | |
| 0.81 | -17.00 | 0.44 | -17.00 | -21.08 | 36.50 | -12.32 | 150.40 | 0.4047 | 580.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -19.72 | 36.58 | -12.24 | 148.69 | 0.3856 | 968.0 | 743.7 | |
| 5.15 | 12.20 | 2.85 | 6.74 | -23.70 | 36.09 | -12.73 | 152.82 | 0.4434 | -750.5 | -336.0 | |
| 2.35 | 5.06 | 1.26 | 2.71 | -18.95 | 36.28 | -12.54 | 146.92 | 0.3779 | 965.6 | 777.0 | |
| 1.63 | -17.00 | 0.88 | -17.00 | -20.63 | 36.08 | -12.75 | 148.95 | 0.4020 | 451.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -21.83 | 35.83 | -12.99 | 150.09 | 0.4201 | 582.0 | 386.7 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -19.01 | 35.91 | -12.91 | 146.27 | 0.3821 | 565.0 | 423.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.09 | 35.64 | -13.18 | 150.06 | 0.4251 | 712.0 | 553.8 | |
| 1.63 | 28.20 | 0.90 | 15.58 | -23.27 | 35.46 | -13.36 | 151.18 | 0.4423 | -699.1 | -466.6 | |
| 0.00 | 2.98 | 0.00 | 1.61 | -20.27 | 35.71 | -13.11 | 147.73 | 0.4004 | 729.0 | 569.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -22.58 | 35.39 | -13.43 | 150.22 | 0.4336 | 597.0 | 500.7 | |
| 7.14 | -33.00 | 3.95 | -33.00 | -23.53 | 35.16 | -13.66 | 150.97 | 0.4481 | -942.6 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -23.57 | 34.57 | -14.25 | 150.00 | 0.4531 | -706.0 | -633.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -20.27 | 34.77 | -14.05 | 145.96 | 0.4085 | -673.0 | -553.9 | |
| 0.00 | 3.62 | 0.00 | 2.00 | -23.10 | 34.45 | -14.37 | 149.23 | 0.4480 | -746.0 | -641.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -21.24 | 34.61 | -14.21 | 147.06 | 0.4224 | -1008.0 | -860.2 | |
| 0.00 | 3.16 | 0.00 | 1.77 | -24.20 | 34.29 | -14.53 | 150.28 | 0.4634 | -584.0 | -544.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.40 | 34.46 | -14.36 | 147.01 | 0.4258 | -850.0 | -682.9 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -20.72 | 34.46 | -14.36 | 146.05 | 0.4171 | -739.0 | -551.7 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -23.40 | 33.94 | -14.88 | 148.73 | 0.4559 | -701.0 | -697.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.65 | 34.20 | -14.62 | 145.49 | 0.4186 | -825.0 | -757.8 | |
| 1.27 | 4.79 | 0.69 | 2.62 | -21.27 | 34.10 | -14.72 | 146.20 | 0.4273 | -899.9 | -797.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -21.56 | 33.94 | -14.88 | 146.32 | 0.4325 | 602.0 | 416.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.60 | 33.68 | -15.14 | 148.54 | 0.4606 | -634.0 | -491.1 | |
| 0.00 | 3.16 | 0.00 | 1.71 | -19.24 | 34.03 | -14.79 | 143.03 | 0.4024 | -655.0 | -631.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.46 | 33.91 | -14.91 | 143.17 | 0.4063 | -619.0 | -430.9 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -22.90 | 33.48 | -15.34 | 147.34 | 0.4534 | -921.0 | -760.2 | |
| 0.00 | 7.59 | 0.00 | 4.20 | -22.25 | 33.35 | -15.47 | 146.26 | 0.4462 | -1103.0 | -854.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -22.58 | 33.32 | -15.50 | 146.63 | 0.4506 | -507.0 | -562.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -22.81 | 33.29 | -15.53 | 146.89 | 0.4538 | -837.0 | -731.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.82 | 33.23 | -15.59 | 145.47 | 0.4420 | -892.0 | -695.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -22.15 | 33.02 | -15.80 | 145.58 | 0.4479 | -871.0 | -723.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -21.46 | 33.07 | -15.75 | 144.69 | 0.4390 | -1032.0 | -789.3 | |
| 1.18 | 4.43 | 0.65 | 2.47 | -22.84 | 32.87 | -15.95 | 146.26 | 0.4577 | -928.6 | -815.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -21.46 | 32.93 | -15.89 | 144.47 | 0.4402 | -959.0 | -793.8 | |
| 0.00 | 4.25 | 0.00 | 2.37 | -22.94 | 32.62 | -16.20 | 145.98 | 0.4611 | -1015.0 | -814.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.63 | 32.78 | -16.04 | 144.44 | 0.4436 | -828.0 | -695.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -21.11 | 32.70 | -16.12 | 143.57 | 0.4380 | -956.0 | -732.7 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -23.17 | 32.46 | -16.37 | 146.02 | 0.4654 | -767.0 | -566.1 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -22.31 | 32.53 | -16.29 | 144.99 | 0.4543 | -747.0 | -693.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -23.40 | 32.39 | -16.43 | 146.22 | 0.4688 | -643.0 | -561.9 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -21.50 | 32.45 | -16.37 | 143.73 | 0.4450 | -714.0 | -668.5 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -21.85 | 32.24 | -16.58 | 143.89 | 0.4513 | -793.0 | -691.6 | |
| 0.36 | 1.18 | 0.20 | 0.66 | -22.80 | 31.92 | -16.91 | 144.70 | 0.4657 | -864.0 | -704.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -22.61 | 31.91 | -16.91 | 144.41 | 0.4635 | -872.0 | -763.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.45 | 31.96 | -16.86 | 141.39 | 0.4373 | -797.0 | -645.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -22.70 | 31.69 | -17.13 | 144.21 | 0.4666 | -691.0 | -477.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.94 | 31.88 | -16.94 | 140.46 | 0.4320 | -671.0 | -500.1 | |
| 0.00 | 3.62 | 0.00 | 2.03 | -23.30 | 31.40 | -17.42 | 144.57 | 0.4763 | -771.0 | -590.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -22.83 | 31.36 | -17.46 | 143.89 | 0.4712 | -781.0 | -706.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -22.70 | 31.17 | -17.65 | 143.42 | 0.4713 | -699.0 | -591.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.20 | 30.61 | -18.21 | 140.42 | 0.4593 | -889.0 | -702.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.36 | 30.31 | -18.51 | 140.23 | 0.4640 | -702.0 | -542.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
