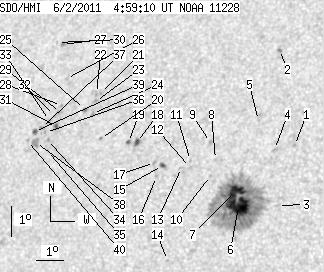

SDO HMI 2011-06-02 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.91 | 290.11 | 28.74 | 170.51 | 17.10 | 20.02 | -27.71 | 55.69 | 0.5391 | -298.5 | -272.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.68 | 18.34 | 22.91 | -24.81 | 50.95 | 0.5149 | -825.0 | -639.8 | |
| 0.00 | 2.17 | 0.00 | 1.29 | 21.46 | 21.84 | -25.88 | 47.36 | 0.5544 | -860.0 | -729.9 | |
| 0.00 | 1.99 | 0.00 | 1.14 | 16.42 | 22.60 | -25.13 | 54.43 | 0.5027 | 225.0 | 153.8 | |
| 0.00 | 1.90 | 0.00 | 1.10 | 18.21 | 22.23 | -25.50 | 51.87 | 0.5219 | -736.0 | -636.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 19.15 | 21.50 | -26.22 | 51.13 | 0.5382 | -679.0 | -545.5 | |
| 25.31 | 222.83 | 14.66 | 129.12 | 16.40 | 21.23 | -26.50 | 55.81 | 0.5195 | -1165.6 | -436.5 | |
| 13.92 | -6.00 | 8.09 | -6.00 | 16.87 | 21.05 | -26.68 | 55.19 | 0.5253 | -966.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 17.90 | 20.16 | -27.56 | 54.35 | 0.5438 | -791.0 | -662.9 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 18.45 | 19.89 | -27.83 | 53.75 | 0.5513 | -654.0 | -464.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 17.39 | 20.07 | -27.65 | 55.25 | 0.5411 | -611.0 | -415.7 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 17.87 | 19.26 | -28.46 | 55.20 | 0.5544 | -572.0 | -490.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 17.65 | 19.30 | -28.42 | 55.52 | 0.5523 | -761.0 | -474.4 | |
| 0.00 | 2.17 | 0.00 | 1.29 | 17.65 | 18.97 | -28.75 | 55.80 | 0.5563 | -493.0 | -455.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.70 | 18.94 | -28.78 | 60.63 | 0.5365 | -667.0 | -460.8 | |
| 2.08 | 2.53 | 1.25 | 1.52 | 17.72 | 18.27 | -29.46 | 56.29 | 0.5653 | -799.8 | -685.8 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 17.37 | 18.11 | -29.61 | 56.96 | 0.5647 | -561.0 | -372.8 | |
| 0.00 | 1.90 | 0.00 | 1.14 | 17.82 | 17.96 | -29.77 | 56.39 | 0.5697 | -535.0 | -406.3 | |
| 2.26 | 5.97 | 1.38 | 3.63 | 18.46 | 17.16 | -30.56 | 56.04 | 0.5836 | 911.4 | 623.5 | |
| 1.36 | 1.81 | 0.83 | 1.10 | 18.47 | 16.86 | -30.86 | 56.27 | 0.5871 | 933.7 | 780.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 18.60 | 15.78 | -31.94 | 56.89 | 0.6008 | -545.0 | -432.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 20.06 | 15.46 | -32.26 | 55.02 | 0.6142 | 877.0 | 739.2 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 20.06 | 15.31 | -32.42 | 55.13 | 0.6159 | 696.0 | 571.1 | |
| 0.00 | 1.90 | 0.00 | 1.19 | 19.80 | 15.33 | -32.39 | 55.49 | 0.6139 | 793.0 | 671.8 | |
| 0.00 | 2.35 | 0.00 | 1.47 | 19.41 | 15.30 | -32.42 | 56.07 | 0.6117 | 781.0 | 670.5 | |
| 0.00 | 2.08 | 0.00 | 1.31 | 19.54 | 14.97 | -32.76 | 56.12 | 0.6164 | 869.0 | 682.3 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 20.56 | 14.02 | -33.70 | 55.37 | 0.6336 | 568.0 | 471.7 | |
| 0.00 | 1.90 | 0.00 | 1.23 | 21.67 | 13.57 | -34.15 | 54.15 | 0.6458 | 718.0 | 625.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 19.68 | 14.04 | -33.68 | 56.59 | 0.6278 | 666.0 | 481.2 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 19.45 | 14.06 | -33.66 | 56.90 | 0.6262 | 749.0 | 692.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 21.74 | 13.36 | -34.36 | 54.21 | 0.6486 | 360.0 | 317.2 | |
| 1.63 | 1.99 | 1.03 | 1.26 | 19.00 | 14.01 | -33.71 | 57.58 | 0.6239 | 906.6 | 784.5 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 19.36 | 13.85 | -33.87 | 57.18 | 0.6280 | 602.0 | 589.6 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 19.19 | 13.69 | -34.03 | 57.51 | 0.6288 | 621.0 | 555.1 | |
| 0.00 | 1.81 | 0.00 | 1.14 | 18.58 | 13.76 | -33.97 | 58.35 | 0.6243 | 894.0 | 742.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 18.23 | 13.84 | -33.89 | 58.81 | 0.6213 | 683.0 | 588.5 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 18.81 | 13.63 | -34.10 | 58.11 | 0.6272 | 738.0 | 707.6 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 18.97 | 13.43 | -34.29 | 58.01 | 0.6304 | 796.0 | 631.9 | |
| 0.00 | 6.06 | 0.00 | 3.85 | 18.49 | 13.31 | -34.41 | 58.78 | 0.6290 | 858.0 | 720.7 | |
| 2.35 | 2.53 | 1.50 | 1.61 | 18.84 | 13.19 | -34.53 | 58.35 | 0.6325 | 576.0 | 664.5 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 18.55 | 12.98 | -34.74 | 58.90 | 0.6332 | 442.0 | 328.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
