SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.21 | 175.30 | 16.24 | 104.45 | -20.58 | 19.21 | -27.96 | 128.07 | 0.5594 | 443.9 | 425.6 | |
|
previous
or next observation for the same group /

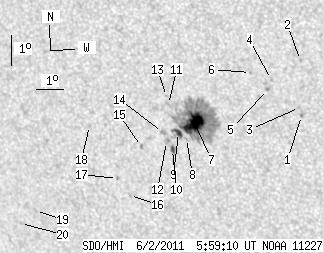

back to the solar disc SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.68 | -20.28 | 23.33 | -23.84 | 131.73 | 0.5101 | -869.0 | -715.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -18.51 | 23.57 | -23.60 | 129.14 | 0.4915 | -773.0 | -593.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.02 | 23.30 | -23.87 | 131.30 | 0.5081 | -710.0 | -635.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -19.12 | 22.46 | -24.72 | 128.93 | 0.5099 | -722.0 | -606.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -19.44 | 22.26 | -24.91 | 129.24 | 0.5149 | -879.0 | -742.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -18.89 | 21.75 | -25.43 | 127.83 | 0.5164 | -702.0 | -543.8 | |
| 21.33 | 147.17 | 12.70 | 87.52 | -20.49 | 19.43 | -27.74 | 128.11 | 0.5563 | 1202.5 | 519.7 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -21.01 | 19.03 | -28.14 | 128.52 | 0.5649 | 437.0 | 431.9 | |
| 3.53 | -7.00 | 2.12 | -7.00 | -20.82 | 18.78 | -28.40 | 128.00 | 0.5663 | 766.8 | 999999 | |
| 2.35 | 2.98 | 1.42 | 1.80 | -21.37 | 18.44 | -28.74 | 128.52 | 0.5744 | 707.0 | 697.6 | |
| 0.00 | 2.44 | 0.00 | 1.46 | -19.91 | 18.59 | -28.58 | 126.47 | 0.5615 | 202.0 | 183.4 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -21.11 | 18.27 | -28.90 | 127.98 | 0.5743 | 587.0 | 509.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -19.65 | 18.57 | -28.61 | 126.05 | 0.5598 | -525.0 | -317.9 | |
| 0.00 | 2.44 | 0.00 | 1.47 | -20.81 | 18.18 | -28.99 | 127.48 | 0.5730 | 586.0 | 501.4 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -21.27 | 17.30 | -29.88 | 127.39 | 0.5864 | 738.0 | 580.5 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -22.87 | 16.46 | -30.71 | 128.98 | 0.6076 | 645.0 | 518.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -22.31 | 16.14 | -31.04 | 127.93 | 0.6070 | 622.0 | 466.5 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -20.58 | 15.48 | -31.69 | 124.94 | 0.6022 | -626.0 | -399.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -23.34 | 12.63 | -34.54 | 126.76 | 0.6521 | -600.0 | -435.7 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -23.77 | 11.89 | -35.28 | 126.82 | 0.6626 | -559.0 | -379.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
