SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.81 | 286.10 | 29.65 | 167.56 | 17.07 | 19.87 | -27.31 | 55.36 | 0.5340 | -221.5 | -245.9 | |
|
previous
or next observation for the same group /

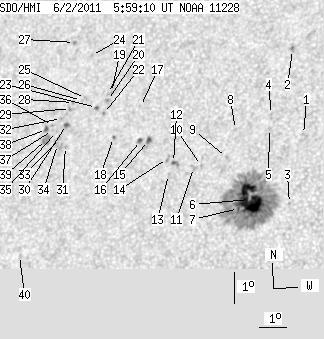

back to the solar disc SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.21 | 18.63 | 22.74 | -24.43 | 50.08 | 0.5130 | -505.0 | -410.2 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 21.40 | 21.88 | -25.29 | 46.84 | 0.5475 | -901.0 | -763.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 16.43 | 22.57 | -24.60 | 53.89 | 0.4963 | 445.0 | 380.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 19.29 | 21.50 | -25.67 | 50.38 | 0.5330 | -612.0 | -558.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.83 | 21.51 | -25.67 | 51.07 | 0.5291 | -669.0 | -512.5 | |
| 41.04 | 220.94 | 23.68 | 127.47 | 16.56 | 21.15 | -26.03 | 55.10 | 0.5149 | -1101.4 | -421.7 | |
| 0.90 | -6.00 | 0.52 | -6.00 | 16.28 | 20.80 | -26.37 | 55.90 | 0.5170 | -698.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 18.81 | 20.29 | -26.88 | 52.32 | 0.5430 | -520.0 | -427.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 17.91 | 20.12 | -27.06 | 53.89 | 0.5378 | -815.0 | -647.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.66 | 19.26 | -27.91 | 55.07 | 0.5462 | -681.0 | -470.8 | |
| 0.00 | 3.16 | 0.00 | 1.87 | 17.59 | 18.98 | -28.19 | 55.42 | 0.5491 | -590.0 | -539.4 | |
| 1.27 | 3.34 | 0.76 | 1.99 | 17.76 | 18.22 | -28.95 | 55.81 | 0.5594 | -722.6 | -712.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 17.37 | 18.11 | -29.07 | 56.51 | 0.5581 | -672.0 | -573.9 | |
| 0.00 | 2.71 | 0.00 | 1.62 | 17.89 | 17.98 | -29.19 | 55.82 | 0.5632 | -524.0 | -394.4 | |
| 2.35 | 2.89 | 1.42 | 1.75 | 18.47 | 17.17 | -30.00 | 55.59 | 0.5770 | 945.8 | 893.7 | |
| 1.54 | 2.62 | 0.93 | 1.59 | 18.47 | 16.87 | -30.30 | 55.83 | 0.5805 | 830.8 | 710.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 19.57 | 16.65 | -30.52 | 54.38 | 0.5909 | 524.0 | 477.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 18.57 | 15.84 | -31.33 | 56.48 | 0.5934 | -633.0 | -432.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 20.03 | 15.45 | -31.72 | 54.66 | 0.6078 | 922.0 | 799.0 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 19.77 | 15.36 | -31.82 | 55.10 | 0.6071 | 863.0 | 734.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 20.00 | 15.31 | -31.87 | 54.81 | 0.6093 | 753.0 | 705.0 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 19.35 | 15.30 | -31.87 | 55.75 | 0.6049 | 869.0 | 700.4 | |
| 0.54 | 1.63 | 0.34 | 1.01 | 19.55 | 14.99 | -32.18 | 55.70 | 0.6098 | 788.0 | 650.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 21.25 | 14.39 | -32.78 | 53.75 | 0.6280 | 660.0 | 561.8 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 19.84 | 14.50 | -32.67 | 55.64 | 0.6174 | 780.0 | 630.5 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 19.78 | 14.36 | -32.81 | 55.83 | 0.6185 | 754.0 | 590.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 21.68 | 13.62 | -33.56 | 53.73 | 0.6394 | 713.0 | 656.6 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 19.72 | 14.07 | -33.11 | 56.14 | 0.6215 | 624.0 | 524.3 | |
| 0.00 | 2.08 | 0.00 | 1.31 | 19.52 | 14.00 | -33.18 | 56.46 | 0.6210 | 801.0 | 701.0 | |
| 1.36 | 2.35 | 0.85 | 1.48 | 19.00 | 13.96 | -33.21 | 57.23 | 0.6181 | 896.1 | 788.4 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 18.30 | 14.08 | -33.09 | 58.18 | 0.6123 | 759.0 | 637.1 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 19.20 | 13.72 | -33.45 | 57.12 | 0.6221 | 699.0 | 597.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 18.55 | 13.79 | -33.38 | 58.00 | 0.6173 | 811.0 | 674.6 | |
| 0.00 | 6.15 | 0.00 | 3.86 | 18.36 | 13.76 | -33.42 | 58.31 | 0.6165 | 695.0 | 629.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 18.78 | 13.63 | -33.55 | 57.79 | 0.6206 | 807.0 | 650.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 18.98 | 13.43 | -33.75 | 57.64 | 0.6241 | 829.0 | 641.8 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 18.81 | 13.46 | -33.71 | 57.85 | 0.6227 | 747.0 | 654.0 | |
| 1.81 | 2.89 | 1.15 | 1.83 | 18.85 | 13.22 | -33.95 | 57.96 | 0.6257 | 599.7 | 474.2 | |
| 0.00 | 6.24 | 0.00 | 3.94 | 18.53 | 13.30 | -33.88 | 58.38 | 0.6229 | 925.0 | 695.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 14.83 | 13.01 | -34.16 | 64.08 | 0.6057 | 634.0 | 476.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
