SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.26 | 31.02 | 13.47 | 21.79 | 19.62 | 5.99 | -41.19 | 61.07 | 0.7104 | -99.2 | 147.1 | |
|
previous
or next observation for the same group /

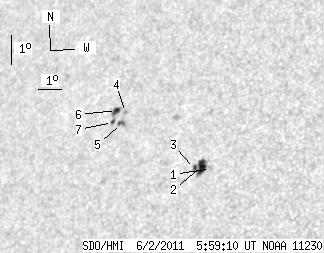

back to the solar disc SDO HMI 2011-06-02 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.04 | 18.75 | 8.37 | -38.81 | 61.02 | 0.6807 | -789.0 | -714.2 | |
| 9.58 | 15.01 | 6.50 | 10.18 | 18.82 | 7.98 | -39.20 | 61.14 | 0.6854 | -771.8 | -452.8 | |
| 1.90 | -2.00 | 1.29 | -2.00 | 18.76 | 7.70 | -39.47 | 61.37 | 0.6881 | -394.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.32 | 20.60 | 4.15 | -43.03 | 60.70 | 0.7348 | 814.0 | 625.5 | |
| 2.26 | 4.43 | 1.64 | 3.22 | 20.24 | 4.09 | -43.08 | 61.18 | 0.7338 | 839.8 | 692.0 | |
| 4.16 | 8.23 | 3.05 | 6.03 | 20.67 | 3.72 | -43.46 | 60.81 | 0.7395 | 681.6 | 569.6 | |
| 1.36 | -6.00 | 0.99 | -6.00 | 20.28 | 3.68 | -43.50 | 61.32 | 0.7382 | 514.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
