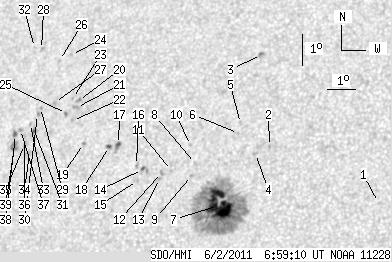

SDO HMI 2011-06-02 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.55 | 303.31 | 28.76 | 176.80 | 17.15 | 19.91 | -26.72 | 54.69 | 0.5273 | -329.0 | -240.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.60 | 16.63 | 26.63 | -19.99 | 48.01 | 0.4426 | -656.0 | -496.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 18.44 | 22.65 | -23.98 | 49.89 | 0.5061 | -795.0 | -596.1 | |
| 0.00 | 2.53 | 0.00 | 1.49 | 21.43 | 21.87 | -24.76 | 46.22 | 0.5420 | -784.0 | -668.5 | |
| 0.00 | 2.17 | 0.00 | 1.25 | 18.22 | 22.19 | -24.44 | 50.76 | 0.5094 | -745.0 | -627.3 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 19.19 | 21.51 | -25.12 | 49.96 | 0.5258 | -619.0 | -564.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 18.87 | 21.49 | -25.14 | 50.48 | 0.5232 | -549.0 | -504.0 | |
| 42.31 | 229.98 | 24.31 | 132.07 | 16.56 | 21.13 | -25.50 | 54.58 | 0.5083 | -1088.5 | -411.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 17.91 | 20.11 | -26.52 | 53.38 | 0.5314 | -789.0 | -555.6 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 17.52 | 20.03 | -26.60 | 54.08 | 0.5293 | -427.0 | -318.1 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 18.49 | 19.83 | -26.79 | 52.73 | 0.5393 | -547.0 | -448.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 17.69 | 19.28 | -27.34 | 54.51 | 0.5395 | -671.0 | -500.1 | |
| 0.00 | 1.81 | 0.00 | 1.07 | 17.63 | 18.93 | -27.69 | 54.93 | 0.5432 | -617.0 | -541.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 17.43 | 18.89 | -27.73 | 55.27 | 0.5423 | -675.0 | -499.0 | |
| 0.63 | 4.52 | 0.38 | 2.68 | 17.73 | 18.23 | -28.40 | 55.40 | 0.5525 | -490.0 | -473.7 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 17.37 | 18.11 | -28.52 | 56.06 | 0.5514 | -647.0 | -402.8 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 17.86 | 17.99 | -28.64 | 55.40 | 0.5563 | -541.0 | -401.7 | |
| 1.36 | 4.79 | 0.82 | 2.88 | 18.53 | 17.20 | -29.42 | 55.03 | 0.5706 | 968.7 | 836.5 | |
| 1.72 | 2.26 | 1.04 | 1.37 | 18.47 | 16.88 | -29.74 | 55.39 | 0.5739 | 875.3 | 778.0 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 18.57 | 15.90 | -30.73 | 56.03 | 0.5863 | -691.0 | -483.1 | |
| 0.00 | 2.35 | 0.00 | 1.45 | 19.97 | 15.41 | -31.21 | 54.36 | 0.6015 | 796.0 | 689.6 | |
| 0.00 | 3.34 | 0.00 | 2.07 | 19.74 | 15.39 | -31.24 | 54.71 | 0.6002 | 811.0 | 584.0 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 19.32 | 15.33 | -31.30 | 55.37 | 0.5980 | 771.0 | 657.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 20.03 | 15.17 | -31.45 | 54.45 | 0.6047 | 597.0 | 506.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 21.47 | 14.80 | -31.83 | 52.72 | 0.6191 | 425.0 | 391.7 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 19.55 | 15.05 | -31.57 | 55.25 | 0.6028 | 832.0 | 656.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 21.28 | 14.38 | -32.25 | 53.31 | 0.6223 | 696.0 | 465.7 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 19.91 | 14.51 | -32.11 | 55.14 | 0.6114 | 806.0 | 654.8 | |
| 0.00 | 1.72 | 0.00 | 1.10 | 21.64 | 13.59 | -33.04 | 53.40 | 0.6335 | 636.0 | 543.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 19.75 | 14.01 | -32.61 | 55.74 | 0.6160 | 622.0 | 539.8 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 19.52 | 13.95 | -32.68 | 56.11 | 0.6152 | 797.0 | 696.2 | |
| 1.45 | 2.62 | 0.90 | 1.64 | 19.00 | 13.95 | -32.67 | 56.86 | 0.6118 | 863.2 | 697.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 21.71 | 13.30 | -33.33 | 53.52 | 0.6371 | 444.0 | 384.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 19.23 | 13.75 | -32.88 | 56.67 | 0.6157 | 627.0 | 560.2 | |
| 0.00 | 2.17 | 0.00 | 1.35 | 18.30 | 13.92 | -32.71 | 57.92 | 0.6078 | 791.0 | 618.5 | |
| 0.00 | 2.80 | 0.00 | 1.75 | 18.56 | 13.67 | -32.96 | 57.71 | 0.6123 | 831.0 | 716.1 | |
| 0.00 | 1.63 | 0.00 | 1.02 | 18.81 | 13.61 | -33.02 | 57.38 | 0.6146 | 947.0 | 690.4 | |
| 0.00 | 1.99 | 0.00 | 1.25 | 19.04 | 13.41 | -33.22 | 57.19 | 0.6184 | 700.0 | 582.9 | |
| 2.08 | 3.25 | 1.31 | 2.05 | 18.88 | 13.25 | -33.38 | 57.53 | 0.6192 | 617.3 | 471.8 | |
| 0.00 | 6.51 | 0.00 | 4.09 | 18.49 | 13.30 | -33.33 | 58.06 | 0.6162 | 822.0 | 696.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
