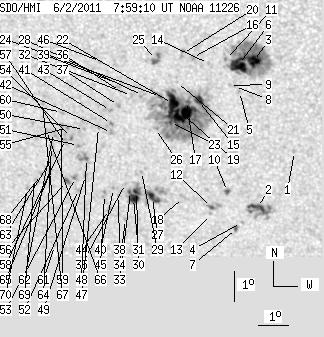

SDO HMI 2011-06-02 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.49 | 533.95 | 56.62 | 286.50 | -21.08 | 36.73 | -9.35 | 156.75 | 0.3843 | 248.9 | 213.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.92 | -22.10 | 40.41 | -5.67 | 166.01 | 0.3802 | 643.0 | 536.1 | |
| 7.86 | 24.77 | 4.28 | 13.48 | -23.94 | 39.09 | -6.99 | 164.36 | 0.4141 | 994.1 | 626.5 | |
| 9.67 | 109.93 | 5.09 | 57.88 | -19.18 | 39.19 | -6.89 | 160.49 | 0.3405 | 1406.5 | 579.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -24.44 | 38.53 | -7.55 | 163.54 | 0.4241 | 664.0 | 466.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -20.15 | 38.69 | -7.39 | 160.21 | 0.3581 | 724.0 | 541.0 | |
| 17.63 | -3.00 | 9.30 | -3.00 | -19.28 | 38.70 | -7.38 | 159.32 | 0.3448 | 1116.7 | 999999 | |
| 1.18 | 3.07 | 0.64 | 1.68 | -24.64 | 38.35 | -7.73 | 163.32 | 0.4280 | 733.7 | 423.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.98 | 38.54 | -7.54 | 159.67 | 0.3565 | 686.0 | 578.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.95 | 38.38 | -7.70 | 159.24 | 0.3569 | 582.0 | 422.8 | |
| 1.81 | 2.35 | 0.98 | 1.28 | -23.41 | 38.12 | -7.96 | 161.89 | 0.4106 | 974.7 | 911.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.12 | 38.29 | -7.79 | 158.09 | 0.3448 | 902.0 | 728.8 | |
| 1.99 | 6.51 | 1.09 | 3.55 | -23.94 | 37.55 | -8.53 | 161.15 | 0.4214 | 732.1 | 688.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -24.17 | 37.50 | -8.58 | 161.25 | 0.4251 | 601.0 | 395.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.24 | 37.73 | -8.35 | 156.84 | 0.3503 | 750.0 | 591.4 | |
| 6.15 | 238.48 | 3.28 | 127.68 | -20.44 | 37.34 | -8.74 | 157.29 | 0.3705 | 1197.8 | 371.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -19.05 | 37.22 | -8.86 | 155.36 | 0.3508 | 817.0 | 667.0 | |
| 0.90 | -15.00 | 0.48 | -15.00 | -20.47 | 36.94 | -9.14 | 156.41 | 0.3735 | 953.4 | 999999 | |
| 0.00 | 3.44 | 0.00 | 1.87 | -23.61 | 36.63 | -9.45 | 159.00 | 0.4215 | 656.0 | 457.1 | |
| 23.69 | -15.00 | 12.68 | -15.00 | -20.89 | 36.78 | -9.30 | 156.54 | 0.3807 | 1304.0 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.67 | -18.92 | 36.90 | -9.18 | 154.42 | 0.3511 | 625.0 | 753.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.85 | 36.65 | -9.43 | 155.01 | 0.3665 | 701.0 | 510.0 | |
| 13.11 | -15.00 | 7.01 | -15.00 | -20.53 | 36.47 | -9.60 | 155.44 | 0.3775 | 1174.6 | 999999 | |
| 0.81 | -15.00 | 0.44 | -15.00 | -21.15 | 36.37 | -9.71 | 155.92 | 0.3872 | 686.7 | 999999 | |
| 0.90 | -15.00 | 0.48 | -15.00 | -20.30 | 36.09 | -9.99 | 154.32 | 0.3769 | 670.0 | 999999 | |
| 0.00 | 6.51 | 0.00 | 3.45 | -19.11 | 36.04 | -10.04 | 152.65 | 0.3602 | 822.0 | 801.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -21.34 | 35.86 | -10.22 | 155.05 | 0.3934 | 365.0 | 197.5 | |
| 7.59 | 25.67 | 4.16 | 14.05 | -23.61 | 35.59 | -10.49 | 156.93 | 0.4277 | -664.7 | -276.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.27 | 35.50 | -10.58 | 152.98 | 0.3806 | 574.0 | 608.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.75 | 35.29 | -10.79 | 155.44 | 0.4173 | 512.0 | 448.5 | |
| 2.08 | 21.43 | 1.14 | 11.74 | -23.41 | 35.06 | -11.02 | 155.71 | 0.4281 | -992.7 | -695.4 | |
| 6.96 | -30.00 | 3.82 | -30.00 | -23.64 | 34.94 | -11.14 | 155.72 | 0.4322 | -943.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -20.27 | 35.14 | -10.94 | 152.20 | 0.3833 | 486.0 | 268.4 | |
| 0.36 | -30.00 | 0.20 | -30.00 | -23.41 | 34.86 | -11.22 | 155.32 | 0.4295 | -952.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -24.33 | 34.61 | -11.47 | 155.81 | 0.4442 | -718.0 | -542.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -23.14 | 34.71 | -11.37 | 154.76 | 0.4267 | -727.0 | -635.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -20.14 | 34.79 | -11.29 | 151.28 | 0.3842 | -818.0 | -646.6 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -20.59 | 34.69 | -11.39 | 151.67 | 0.3913 | -847.0 | -714.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -23.54 | 34.44 | -11.64 | 154.67 | 0.4341 | -708.0 | -550.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.88 | 34.71 | -11.37 | 150.76 | 0.3813 | -109.0 | -252.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -23.31 | 34.29 | -11.79 | 154.14 | 0.4319 | -872.0 | -725.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -21.18 | 34.41 | -11.67 | 151.85 | 0.4015 | -1003.0 | -835.1 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -21.47 | 34.38 | -11.69 | 152.17 | 0.4057 | -904.0 | -675.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -20.76 | 34.41 | -11.67 | 151.31 | 0.3957 | -955.0 | -775.4 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -24.00 | 34.09 | -11.99 | 154.53 | 0.4429 | -777.0 | -624.6 | |
| 0.00 | 2.89 | 0.00 | 1.59 | -23.50 | 33.97 | -12.11 | 153.76 | 0.4369 | -702.0 | -722.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.17 | 34.20 | -11.88 | 148.68 | 0.3757 | -818.0 | -610.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -21.31 | 33.96 | -12.12 | 151.13 | 0.4067 | -941.0 | -772.0 | |
| 0.54 | 8.95 | 0.30 | 4.89 | -22.32 | 33.47 | -12.61 | 151.45 | 0.4243 | -1049.7 | -776.7 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -22.88 | 33.39 | -12.69 | 151.96 | 0.4325 | -892.0 | -740.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.37 | 33.49 | -12.59 | 150.29 | 0.4113 | -924.0 | -729.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -21.89 | 33.24 | -12.84 | 150.49 | 0.4203 | -933.0 | -795.8 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -23.34 | 33.10 | -12.98 | 151.99 | 0.4408 | -578.0 | -496.2 | |
| 0.00 | 3.89 | 0.00 | 2.14 | -22.94 | 33.04 | -13.04 | 151.41 | 0.4359 | -979.0 | -798.9 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -21.63 | 33.03 | -13.05 | 149.76 | 0.4184 | -1093.0 | -920.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.31 | 32.93 | -13.15 | 149.13 | 0.4149 | -910.0 | -798.4 | |
| 2.26 | 3.07 | 1.25 | 1.69 | -23.07 | 32.72 | -13.36 | 151.00 | 0.4401 | -839.8 | -771.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -21.86 | 32.84 | -13.24 | 149.70 | 0.4230 | -785.0 | -604.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -21.70 | 32.82 | -13.26 | 149.45 | 0.4210 | -919.0 | -672.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.24 | 32.73 | -13.35 | 148.68 | 0.4157 | -958.0 | -735.7 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -20.82 | 32.77 | -13.31 | 148.18 | 0.4098 | -619.0 | -603.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -25.20 | 32.08 | -14.00 | 152.32 | 0.4732 | -708.0 | -536.2 | |
| 0.00 | 3.80 | 0.00 | 2.07 | -21.47 | 32.44 | -13.64 | 148.45 | 0.4211 | -803.0 | -604.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -22.22 | 32.37 | -13.71 | 149.30 | 0.4316 | -716.0 | -557.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -21.92 | 32.33 | -13.75 | 148.85 | 0.4280 | -758.0 | -570.7 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -22.74 | 32.21 | -13.87 | 149.69 | 0.4397 | -615.0 | -466.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -21.40 | 32.21 | -13.87 | 147.94 | 0.4221 | -761.0 | -660.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.52 | 32.16 | -13.92 | 146.62 | 0.4112 | -717.0 | -644.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -22.84 | 31.90 | -14.18 | 149.26 | 0.4435 | -840.0 | -730.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -23.00 | 31.64 | -14.44 | 149.02 | 0.4477 | -702.0 | -543.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -23.30 | 31.37 | -14.71 | 148.93 | 0.4538 | -778.0 | -674.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
