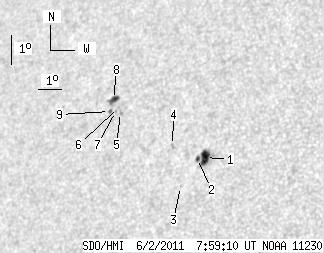

SDO HMI 2011-06-02 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.26 | 36.15 | 11.84 | 24.79 | 19.40 | 6.44 | -39.64 | 60.58 | 0.6925 | -98.1 | -109.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.85 | 21.24 | 6.57 | 14.16 | 18.79 | 8.12 | -37.96 | 60.53 | 0.6712 | -790.4 | -500.1 | |
| 1.54 | -1.00 | 1.03 | -1.00 | 18.76 | 7.80 | -38.28 | 60.74 | 0.6746 | -407.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 17.86 | 7.34 | -38.74 | 62.22 | 0.6755 | -654.0 | -490.3 | |
| 0.00 | 1.81 | 0.00 | 1.23 | 19.18 | 6.65 | -39.43 | 60.78 | 0.6897 | -617.0 | -498.4 | |
| 0.00 | 1.36 | 0.00 | 0.97 | 20.27 | 4.08 | -41.99 | 60.64 | 0.7224 | 891.0 | 801.5 | |
| 0.00 | 0.72 | 0.00 | 0.52 | 20.44 | 3.94 | -42.14 | 60.49 | 0.7247 | 727.0 | 646.5 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 20.31 | 3.85 | -42.23 | 60.70 | 0.7250 | 794.0 | 679.0 | |
| 4.88 | 7.05 | 3.52 | 5.09 | 20.70 | 3.63 | -42.45 | 60.31 | 0.7291 | 680.5 | 521.0 | |
| 0.99 | 1.99 | 0.72 | 1.43 | 20.31 | 3.59 | -42.49 | 60.83 | 0.7278 | 589.1 | 449.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
