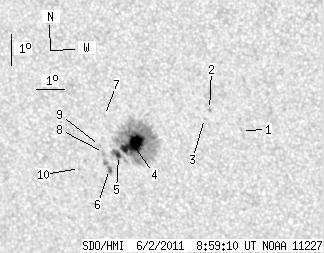

SDO HMI 2011-06-02 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.67 | 161.37 | 15.69 | 94.68 | -20.60 | 19.31 | -26.23 | 129.75 | 0.5400 | 746.1 | 479.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.56 | -20.11 | 23.30 | -22.23 | 133.37 | 0.4907 | -804.0 | -644.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.43 | 22.28 | -23.25 | 131.08 | 0.4958 | -845.0 | -672.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -19.72 | 22.06 | -23.47 | 131.29 | 0.5010 | -470.0 | -458.5 | |
| 22.60 | 147.71 | 13.27 | 86.61 | -20.55 | 19.39 | -26.15 | 129.74 | 0.5387 | 1198.9 | 501.9 | |
| 1.99 | -4.00 | 1.18 | -4.00 | -20.91 | 18.77 | -26.76 | 129.68 | 0.5486 | 773.2 | 999999 | |
| 2.08 | 6.06 | 1.24 | 3.61 | -21.36 | 18.35 | -27.18 | 129.96 | 0.5571 | 726.0 | 584.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -19.61 | 18.51 | -27.03 | 127.44 | 0.5412 | -421.0 | -325.0 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -20.81 | 18.24 | -27.29 | 129.02 | 0.5538 | 588.0 | 508.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -20.58 | 18.14 | -27.39 | 128.59 | 0.5531 | 561.0 | 436.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -21.32 | 17.25 | -28.28 | 128.88 | 0.5691 | 598.0 | 483.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
