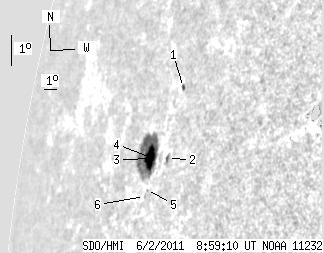

SDO HMI 2011-06-02 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.37 | 74.95 | 20.56 | 101.60 | 9.00 | 337.58 | -67.95 | 80.09 | 0.9308 | -506.9 | 24.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 2.08 | 1.60 | 2.63 | 11.12 | 339.21 | -66.33 | 77.66 | 0.9216 | 250.4 | 280.0 | |
| 0.54 | 3.89 | 0.69 | 4.95 | 8.93 | 338.86 | -66.68 | 80.07 | 0.9226 | -537.7 | -440.4 | |
| 0.00 | 1.27 | 0.00 | 1.66 | 8.94 | 338.05 | -67.48 | 80.12 | 0.9279 | -372.0 | -421.3 | |
| 13.56 | 65.90 | 18.27 | 89.93 | 8.97 | 337.46 | -68.07 | 80.13 | 0.9316 | -604.1 | 67.1 | |
| 0.00 | 0.63 | 0.00 | 0.85 | 7.99 | 337.50 | -68.03 | 81.19 | 0.9310 | -297.0 | -329.4 | |
| 0.00 | 1.18 | 0.00 | 1.58 | 7.77 | 337.41 | -68.13 | 81.42 | 0.9314 | -266.0 | -186.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
