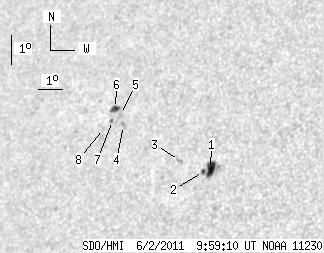

SDO HMI 2011-06-02 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.36 | 31.46 | 10.97 | 21.26 | 19.45 | 6.36 | -38.62 | 59.97 | 0.6814 | -96.3 | -16.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.94 | 17.27 | 6.52 | 11.33 | 18.78 | 8.17 | -36.82 | 59.88 | 0.6581 | -756.5 | -544.2 | |
| 1.90 | -1.00 | 1.25 | -1.00 | 18.69 | 7.91 | -37.07 | 60.16 | 0.6606 | -402.0 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.94 | 19.05 | 6.84 | -38.14 | 60.27 | 0.6746 | -652.0 | -503.2 | |
| 0.00 | 2.44 | 0.00 | 1.71 | 20.20 | 4.15 | -40.84 | 60.16 | 0.7098 | 690.0 | 509.5 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 20.56 | 3.90 | -41.08 | 59.82 | 0.7141 | 688.0 | 641.1 | |
| 4.25 | 5.33 | 3.01 | 3.78 | 20.76 | 3.62 | -41.36 | 59.70 | 0.7180 | 670.5 | 549.4 | |
| 0.27 | 1.27 | 0.19 | 0.90 | 20.37 | 3.62 | -41.36 | 60.21 | 0.7162 | 404.7 | 621.7 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 20.11 | 3.31 | -41.67 | 60.69 | 0.7182 | 671.0 | 613.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
