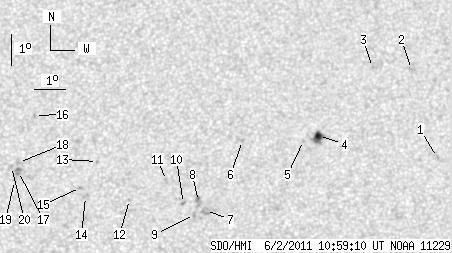

SDO HMI 2011-06-02 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.34 | 53.41 | 2.27 | 27.95 | 17.39 | 41.10 | -3.34 | 10.27 | 0.3209 | 80.4 | -103.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.60 | 48.61 | 4.17 | 347.45 | 0.3203 | 944.0 | 750.8 | |
| 0.00 | 3.34 | 0.00 | 1.78 | 20.44 | 47.83 | 3.40 | 351.18 | 0.3638 | 767.0 | 562.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 20.51 | 46.57 | 2.13 | 354.46 | 0.3623 | 770.0 | 561.6 | |
| 4.34 | 11.39 | 2.27 | 5.96 | 18.31 | 44.81 | 0.37 | 358.90 | 0.3244 | -1001.5 | -852.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.15 | 44.33 | -0.11 | 0.32 | 0.3217 | -799.0 | -618.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.15 | 42.38 | -2.06 | 6.09 | 0.3235 | -906.0 | -593.5 | |
| 0.00 | 5.69 | 0.00 | 2.95 | 15.91 | 41.23 | -3.21 | 10.75 | 0.2895 | -524.0 | -791.2 | |
| 0.00 | 6.15 | 0.00 | 3.19 | 16.20 | 41.00 | -3.43 | 11.29 | 0.2949 | -716.0 | -690.4 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 15.79 | 40.88 | -3.55 | 11.98 | 0.2885 | -898.0 | -735.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.14 | 40.53 | -3.91 | 12.85 | 0.2955 | -976.0 | -696.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 16.87 | 39.97 | -4.46 | 13.98 | 0.3095 | -721.0 | -521.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.26 | 38.81 | -5.63 | 18.04 | 0.3052 | 724.0 | 535.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.48 | 37.75 | -6.69 | 19.76 | 0.3299 | 734.0 | 565.5 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 16.36 | 37.41 | -7.03 | 22.01 | 0.3148 | 824.0 | 662.5 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 16.65 | 37.23 | -7.20 | 22.13 | 0.3202 | 835.0 | 639.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.96 | 35.65 | -8.79 | 23.42 | 0.3651 | 898.0 | 644.2 | |
| 0.00 | 4.52 | 0.00 | 2.38 | 17.16 | 35.22 | -9.21 | 26.73 | 0.3417 | 933.0 | 854.1 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 17.45 | 35.21 | -9.23 | 26.37 | 0.3459 | 657.0 | 550.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.87 | 35.11 | -9.33 | 27.42 | 0.3384 | 718.0 | 529.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.32 | 34.99 | -9.45 | 27.08 | 0.3457 | 720.0 | 554.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
