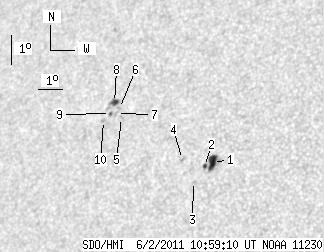

SDO HMI 2011-06-02 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.55 | 35.35 | 11.05 | 23.88 | 19.60 | 5.92 | -38.52 | 59.71 | 0.6809 | -76.9 | 122.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.67 | 15.73 | 6.30 | 10.24 | 18.78 | 8.22 | -36.21 | 59.53 | 0.6512 | -795.6 | -559.4 | |
| 1.45 | -1.00 | 0.94 | -1.00 | 18.65 | 7.93 | -36.50 | 59.88 | 0.6538 | -463.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 18.17 | 7.61 | -36.82 | 60.75 | 0.6550 | -629.0 | -475.7 | |
| 0.00 | 2.08 | 0.00 | 1.38 | 18.89 | 6.99 | -37.45 | 60.11 | 0.6659 | -653.0 | -458.4 | |
| 0.00 | 1.90 | 0.00 | 1.32 | 20.27 | 4.05 | -40.39 | 59.85 | 0.7052 | 784.0 | 642.0 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 20.56 | 3.87 | -40.57 | 59.56 | 0.7085 | 733.0 | 631.9 | |
| 0.00 | 2.44 | 0.00 | 1.71 | 20.40 | 3.79 | -40.64 | 59.81 | 0.7086 | 696.0 | 575.7 | |
| 4.07 | 7.14 | 2.86 | 5.03 | 20.76 | 3.59 | -40.84 | 59.45 | 0.7125 | 691.2 | 445.5 | |
| 1.36 | 1.99 | 0.95 | 1.40 | 20.40 | 3.54 | -40.90 | 59.94 | 0.7113 | 554.3 | 458.7 | |
| 0.00 | 1.81 | 0.00 | 1.27 | 20.17 | 3.31 | -41.13 | 60.35 | 0.7127 | 703.0 | 597.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
