SDO HMI 2011-06-02 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.05 | 22.77 | 3.80 | 12.31 | 17.28 | 58.37 | 15.59 | 319.83 | 0.4012 | -918.6 | -791.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

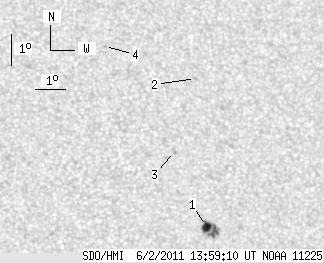

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.05 | 18.62 | 3.80 | 10.03 | 16.54 | 58.58 | 15.79 | 318.33 | 0.3941 | -1080.2 | -875.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 21.32 | 58.68 | 15.89 | 325.54 | 0.4527 | -761.0 | -572.7 | |
| 0.00 | 1.90 | 0.00 | 1.03 | 18.94 | 57.73 | 14.95 | 323.77 | 0.4145 | -707.0 | -587.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 22.36 | 55.71 | 12.92 | 331.98 | 0.4421 | -674.0 | -505.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
