SDO HMI 2011-06-02 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.37 | 167.98 | 16.25 | 96.10 | -20.61 | 19.29 | -22.94 | 133.33 | 0.5034 | 727.6 | 436.9 | |
|
previous
or next observation for the same group /

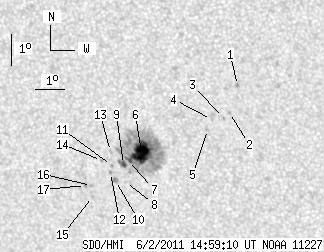

back to the solar disc SDO HMI 2011-06-02 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.80 | -18.40 | 22.99 | -19.24 | 134.51 | 0.4403 | -909.0 | -744.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.26 | 22.62 | -19.62 | 135.43 | 0.4535 | -813.0 | -666.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.42 | 22.39 | -19.84 | 135.38 | 0.4576 | -604.0 | -535.2 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -19.49 | 21.97 | -20.26 | 134.91 | 0.4629 | -550.0 | -444.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.81 | 21.79 | -20.44 | 135.19 | 0.4682 | -330.0 | -337.7 | |
| 24.67 | 148.28 | 14.11 | 84.81 | -20.55 | 19.38 | -22.85 | 133.33 | 0.5019 | 1238.0 | 475.9 | |
| 0.81 | -6.00 | 0.47 | -6.00 | -20.80 | 18.88 | -23.36 | 133.14 | 0.5099 | 802.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.52 | 18.65 | -23.58 | 133.96 | 0.5191 | 647.0 | 476.7 | |
| 2.89 | -6.00 | 1.67 | -6.00 | -20.93 | 18.68 | -23.55 | 133.11 | 0.5133 | 772.1 | 999999 | |
| 0.00 | 3.61 | 0.00 | 2.10 | -21.45 | 18.30 | -23.93 | 133.47 | 0.5222 | 810.0 | 599.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -20.96 | 18.25 | -23.99 | 132.67 | 0.5183 | 651.0 | 586.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.19 | 18.17 | -24.06 | 132.93 | 0.5213 | 840.0 | 712.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.51 | 18.29 | -23.95 | 132.02 | 0.5137 | 616.0 | 459.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -20.80 | 17.92 | -24.32 | 132.06 | 0.5205 | 529.0 | 445.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.97 | 17.38 | -24.85 | 133.24 | 0.5370 | 526.0 | 400.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -21.61 | 17.41 | -24.82 | 132.74 | 0.5334 | 690.0 | 580.6 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -21.61 | 17.20 | -25.04 | 132.51 | 0.5357 | 697.0 | 557.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
