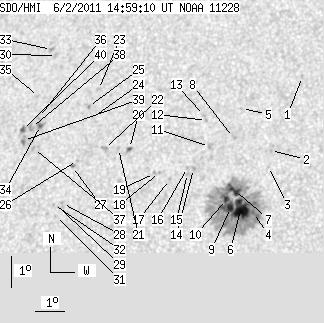

SDO HMI 2011-06-02 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.41 | 292.85 | 22.09 | 164.47 | 17.08 | 20.17 | -22.07 | 49.84 | 0.4707 | -313.1 | -310.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | 20.74 | 22.90 | -19.33 | 40.52 | 0.4784 | -564.0 | -501.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.35 | 22.11 | -20.12 | 45.31 | 0.4611 | -951.0 | -764.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.83 | 22.11 | -20.13 | 46.17 | 0.4559 | 531.0 | 367.5 | |
| 0.81 | 233.67 | 0.45 | 129.85 | 16.37 | 21.77 | -20.47 | 49.16 | 0.4453 | -1012.8 | -448.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 19.71 | 20.94 | -21.30 | 44.72 | 0.4879 | -645.0 | -534.7 | |
| 19.43 | -4.00 | 10.78 | -4.00 | 16.46 | 21.31 | -20.92 | 49.58 | 0.4516 | -1264.3 | 999999 | |
| 6.33 | -4.00 | 3.53 | -4.00 | 17.07 | 21.04 | -21.19 | 48.88 | 0.4606 | -986.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 18.77 | 20.79 | -21.44 | 46.38 | 0.4801 | -748.0 | -575.7 | |
| 4.61 | -4.00 | 2.56 | -4.00 | 16.53 | 20.97 | -21.27 | 49.91 | 0.4564 | -1037.5 | 999999 | |
| 2.98 | -4.00 | 1.66 | -4.00 | 16.78 | 20.80 | -21.43 | 49.68 | 0.4607 | -905.9 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.38 | 18.48 | 20.00 | -22.24 | 47.83 | 0.4862 | -608.0 | -455.8 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 19.32 | 19.77 | -22.46 | 46.77 | 0.4967 | -491.0 | -252.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 19.49 | 19.68 | -22.55 | 46.63 | 0.4993 | -457.0 | -285.4 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 17.78 | 19.54 | -22.69 | 49.53 | 0.4848 | -828.0 | -695.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 17.62 | 19.35 | -22.88 | 50.02 | 0.4856 | -689.0 | -586.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.81 | 19.33 | -22.91 | 49.73 | 0.4876 | -631.0 | -475.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 17.43 | 18.75 | -23.48 | 51.02 | 0.4909 | -603.0 | -481.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 17.66 | 18.37 | -23.86 | 51.07 | 0.4974 | -742.0 | -585.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 17.63 | 18.20 | -24.03 | 51.31 | 0.4992 | -668.0 | -496.2 | |
| 1.36 | 3.07 | 0.78 | 1.78 | 18.43 | 17.20 | -25.03 | 51.08 | 0.5179 | 817.4 | 774.0 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 18.43 | 16.81 | -25.42 | 51.49 | 0.5225 | 782.0 | 647.4 | |
| 0.00 | 3.34 | 0.00 | 1.95 | 18.44 | 16.31 | -25.92 | 51.99 | 0.5283 | -778.0 | -574.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 20.35 | 15.77 | -26.47 | 49.62 | 0.5507 | 609.0 | 541.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 19.44 | 15.71 | -26.52 | 51.04 | 0.5436 | 674.0 | 623.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 19.80 | 15.51 | -26.73 | 50.70 | 0.5490 | 848.0 | 723.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 18.05 | 15.41 | -26.82 | 53.48 | 0.5359 | 752.0 | 568.0 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 17.86 | 15.26 | -26.97 | 53.92 | 0.5362 | 896.0 | 757.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 16.68 | 15.09 | -27.14 | 55.99 | 0.5292 | 576.0 | 612.2 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 16.59 | 14.93 | -27.30 | 56.29 | 0.5305 | 883.0 | 718.0 | |
| 0.00 | 2.35 | 0.00 | 1.43 | 21.47 | 14.00 | -28.23 | 49.69 | 0.5794 | 419.0 | 458.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 16.27 | 14.91 | -27.33 | 56.84 | 0.5285 | 597.0 | 458.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 16.65 | 14.78 | -27.46 | 56.32 | 0.5329 | 654.0 | 591.0 | |
| 0.00 | 2.35 | 0.00 | 1.43 | 21.67 | 13.77 | -28.46 | 49.62 | 0.5835 | 757.0 | 573.0 | |
| 2.17 | 3.16 | 1.30 | 1.89 | 19.19 | 13.87 | -28.36 | 53.15 | 0.5628 | 903.5 | 542.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 20.13 | 13.61 | -28.62 | 51.97 | 0.5731 | 378.0 | 353.9 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 19.45 | 13.75 | -28.49 | 52.87 | 0.5663 | 691.0 | 551.3 | |
| 0.00 | 1.90 | 0.00 | 1.13 | 18.45 | 13.75 | -28.48 | 54.38 | 0.5586 | 704.0 | 632.4 | |
| 0.00 | 3.43 | 0.00 | 2.06 | 19.13 | 13.55 | -28.68 | 53.52 | 0.5661 | 757.0 | 719.2 | |
| 0.00 | 3.70 | 0.00 | 2.22 | 18.71 | 13.34 | -28.90 | 54.35 | 0.5654 | 868.0 | 711.1 | |
| 1.72 | 3.34 | 1.03 | 2.01 | 19.06 | 13.23 | -29.00 | 53.90 | 0.5693 | 685.8 | 491.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
