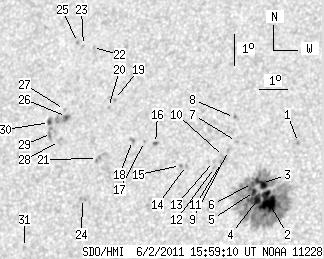

SDO HMI 2011-06-02 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.95 | 272.30 | 22.82 | 152.44 | 17.06 | 20.04 | -21.64 | 49.32 | 0.4655 | -428.7 | -308.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.75 | 18.38 | 22.14 | -19.54 | 44.46 | 0.4551 | -820.0 | -742.8 | |
| 22.05 | 218.57 | 12.19 | 121.01 | 16.50 | 21.34 | -20.34 | 48.77 | 0.4451 | -1247.4 | -471.5 | |
| 6.69 | -2.00 | 3.71 | -2.00 | 17.07 | 21.03 | -20.65 | 48.17 | 0.4542 | -971.2 | 999999 | |
| 4.61 | -2.00 | 2.55 | -2.00 | 16.56 | 20.96 | -20.72 | 49.16 | 0.4502 | -1063.4 | 999999 | |
| 2.26 | -2.00 | 1.25 | -2.00 | 16.82 | 20.82 | -20.86 | 48.88 | 0.4542 | -907.5 | 999999 | |
| 1.63 | -2.00 | 0.91 | -2.00 | 17.07 | 20.73 | -20.95 | 48.57 | 0.4578 | -704.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.42 | 20.01 | -21.67 | 47.23 | 0.4792 | -780.0 | -530.3 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 19.19 | 19.83 | -21.85 | 46.22 | 0.4887 | -604.0 | -541.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 18.13 | 19.77 | -21.91 | 48.00 | 0.4791 | -586.0 | -491.9 | |
| 0.00 | 2.44 | 0.00 | 1.38 | 17.94 | 19.62 | -22.06 | 48.50 | 0.4789 | -665.0 | -564.0 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 17.75 | 19.58 | -22.10 | 48.87 | 0.4776 | -883.0 | -707.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 17.59 | 19.36 | -22.32 | 49.41 | 0.4787 | -721.0 | -605.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.78 | 19.30 | -22.38 | 49.16 | 0.4812 | -623.0 | -502.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 17.66 | 18.38 | -23.30 | 50.44 | 0.4908 | -644.0 | -533.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 17.66 | 18.17 | -23.51 | 50.68 | 0.4933 | -664.0 | -590.9 | |
| 0.36 | 1.63 | 0.21 | 0.94 | 18.37 | 17.19 | -24.49 | 50.61 | 0.5110 | 968.0 | 811.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.43 | 16.79 | -24.89 | 50.93 | 0.5162 | 784.0 | 607.8 | |
| 0.00 | 2.53 | 0.00 | 1.47 | 18.47 | 16.36 | -25.32 | 51.33 | 0.5215 | -800.0 | -603.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 19.80 | 15.50 | -26.18 | 50.16 | 0.5428 | 817.0 | 691.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 19.54 | 15.33 | -26.35 | 50.72 | 0.5425 | 673.0 | 550.2 | |
| 0.00 | 3.25 | 0.00 | 1.90 | 17.90 | 15.21 | -26.47 | 53.40 | 0.5304 | 842.0 | 727.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 21.50 | 14.37 | -27.31 | 48.78 | 0.5697 | 573.0 | 616.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 21.57 | 14.02 | -27.65 | 49.01 | 0.5740 | 691.0 | 559.1 | |
| 0.00 | 2.35 | 0.00 | 1.37 | 16.62 | 14.87 | -26.81 | 55.79 | 0.5246 | 616.0 | 634.7 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 21.67 | 13.78 | -27.90 | 49.10 | 0.5775 | 787.0 | 640.4 | |
| 1.45 | 8.22 | 0.86 | 4.90 | 19.25 | 13.86 | -27.82 | 52.56 | 0.5571 | 972.1 | 767.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 19.48 | 13.74 | -27.94 | 52.33 | 0.5602 | 662.0 | 574.2 | |
| 0.00 | 3.07 | 0.00 | 1.82 | 18.45 | 13.75 | -27.93 | 53.89 | 0.5521 | 580.0 | 584.2 | |
| 0.00 | 6.87 | 0.00 | 4.09 | 18.71 | 13.41 | -28.27 | 53.80 | 0.5581 | 581.0 | 635.6 | |
| 1.90 | 3.52 | 1.14 | 2.11 | 19.06 | 13.27 | -28.41 | 53.38 | 0.5624 | 657.3 | 529.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 15.08 | 13.03 | -28.65 | 59.95 | 0.5369 | 654.0 | 454.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
