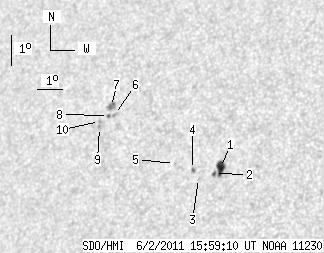

SDO HMI 2011-06-02 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.92 | 26.94 | 7.56 | 17.52 | 19.61 | 6.01 | -35.67 | 58.00 | 0.6490 | -250.7 | 311.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.85 | 10.30 | 5.57 | 6.48 | 18.83 | 8.36 | -33.32 | 57.59 | 0.6180 | -805.4 | -509.4 | |
| 1.54 | 1.81 | 0.97 | 1.14 | 18.64 | 8.18 | -33.50 | 58.00 | 0.6190 | -580.4 | -472.7 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 18.48 | 7.59 | -34.09 | 58.62 | 0.6248 | -649.0 | -504.6 | |
| 0.36 | 1.63 | 0.23 | 1.03 | 18.77 | 7.29 | -34.39 | 58.40 | 0.6301 | -690.8 | -519.3 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 18.97 | 6.54 | -35.14 | 58.61 | 0.6399 | -524.0 | -461.2 | |
| 0.00 | 2.26 | 0.00 | 1.52 | 20.58 | 3.69 | -37.99 | 58.13 | 0.6808 | 713.0 | 600.3 | |
| 0.00 | 5.33 | 0.00 | 3.61 | 20.84 | 3.49 | -38.19 | 57.90 | 0.6844 | 838.0 | 697.3 | |
| 1.17 | 1.36 | 0.79 | 0.92 | 20.55 | 3.45 | -38.23 | 58.31 | 0.6833 | 664.3 | 528.0 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 20.16 | 3.19 | -38.49 | 58.98 | 0.6840 | 720.0 | 562.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 20.36 | 3.13 | -38.55 | 58.75 | 0.6857 | 626.0 | 573.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
