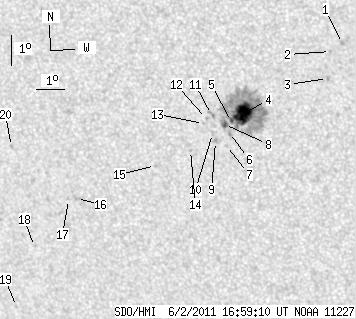

SDO HMI 2011-06-02 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.74 | 177.70 | 15.20 | 101.22 | -20.75 | 18.96 | -22.16 | 134.53 | 0.4962 | 586.8 | 407.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.09 | -18.34 | 23.04 | -18.08 | 136.12 | 0.4268 | -888.0 | -667.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -18.59 | 22.61 | -18.51 | 135.90 | 0.4343 | -705.0 | -580.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -19.46 | 22.41 | -18.72 | 137.04 | 0.4458 | -916.0 | -585.3 | |
| 23.40 | 150.62 | 13.29 | 85.46 | -20.58 | 19.36 | -21.77 | 134.70 | 0.4904 | 1278.1 | 479.1 | |
| 0.99 | -4.00 | 0.57 | -4.00 | -20.84 | 18.90 | -22.23 | 134.53 | 0.4979 | 762.6 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.81 | -21.19 | 18.77 | -22.36 | 134.92 | 0.5028 | 720.0 | 566.2 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.62 | 18.60 | -22.53 | 135.35 | 0.5089 | 679.0 | 519.6 | |
| 2.35 | -4.00 | 1.34 | -4.00 | -20.93 | 18.64 | -22.49 | 134.36 | 0.5017 | 810.2 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.40 | -21.48 | 18.23 | -22.90 | 134.71 | 0.5115 | 757.0 | 619.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -21.22 | 18.16 | -22.96 | 134.24 | 0.5096 | 850.0 | 514.4 | |
| 0.00 | 3.34 | 0.00 | 1.91 | -20.61 | 18.23 | -22.90 | 133.38 | 0.5030 | 652.0 | 478.1 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -20.74 | 18.03 | -23.09 | 133.34 | 0.5064 | 573.0 | 441.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.90 | 17.90 | -23.23 | 133.44 | 0.5094 | 550.0 | 447.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.78 | 17.29 | -23.84 | 134.06 | 0.5244 | 478.0 | 367.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -22.26 | 15.93 | -25.19 | 133.30 | 0.5434 | 666.0 | 577.5 | |
| 0.00 | 3.43 | 0.00 | 2.10 | -23.34 | 12.78 | -28.34 | 131.73 | 0.5863 | -675.0 | -438.7 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -23.37 | 12.47 | -28.65 | 131.49 | 0.5898 | -665.0 | -580.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -24.92 | 10.77 | -30.35 | 132.11 | 0.6200 | -718.0 | -625.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -26.94 | 9.47 | -31.66 | 133.64 | 0.6488 | -434.0 | -368.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -21.62 | 10.72 | -30.40 | 127.51 | 0.5953 | -535.0 | -392.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
