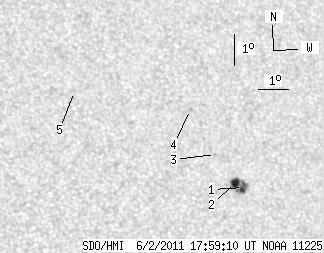

SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.02 | 22.31 | 6.01 | 12.17 | 16.79 | 58.38 | 17.81 | 315.43 | 0.4194 | -897.3 | -779.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.06 | 18.70 | 2.76 | 10.20 | 16.36 | 58.87 | 18.30 | 313.91 | 0.4199 | -883.2 | -870.0 | |
| 5.96 | -1.00 | 3.25 | -1.00 | 16.52 | 58.62 | 18.05 | 314.57 | 0.4187 | -1058.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 17.41 | 58.04 | 17.47 | 317.03 | 0.4219 | -878.0 | -659.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 18.85 | 57.35 | 16.78 | 320.50 | 0.4312 | -761.0 | -573.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 19.42 | 53.54 | 12.96 | 328.17 | 0.4029 | -569.0 | -516.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
