SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.80 | 506.65 | 49.34 | 269.45 | -21.35 | 36.54 | -4.04 | 169.73 | 0.3638 | 280.5 | 218.9 | |
|
previous
or next observation for the same group /

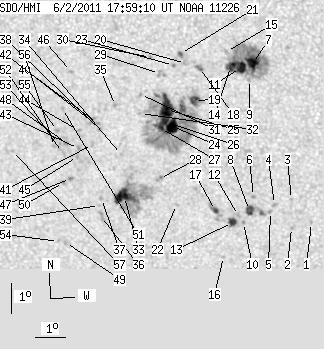

back to the solar disc SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.59 | -24.38 | 41.03 | 0.46 | 181.04 | 0.4063 | 777.0 | 530.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -24.55 | 40.36 | -0.21 | 179.54 | 0.4089 | 657.0 | 588.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.62 | 40.37 | -0.21 | 179.52 | 0.3940 | -712.0 | -479.1 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -23.78 | 39.80 | -0.77 | 178.21 | 0.3968 | 28.0 | 234.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -24.01 | 39.67 | -0.91 | 177.93 | 0.4006 | 850.0 | 685.4 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -23.52 | 39.11 | -1.47 | 176.57 | 0.3931 | 818.0 | 759.5 | |
| 9.13 | 99.57 | 4.77 | 52.07 | -19.19 | 39.12 | -1.45 | 175.72 | 0.3224 | 1427.5 | 627.3 | |
| 6.23 | 12.20 | 3.37 | 6.59 | -23.98 | 38.97 | -1.60 | 176.32 | 0.4007 | 947.2 | 762.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -19.70 | 39.01 | -1.56 | 175.55 | 0.3310 | -10.0 | -8.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -24.38 | 38.76 | -1.81 | 175.93 | 0.4072 | 747.0 | 604.9 | |
| 9.40 | -7.00 | 4.92 | -7.00 | -19.32 | 38.73 | -1.84 | 174.62 | 0.3251 | 1129.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -24.15 | 38.60 | -1.97 | 175.52 | 0.4037 | 873.0 | 722.4 | |
| 4.79 | 6.14 | 2.60 | 3.33 | -24.38 | 38.39 | -2.18 | 175.11 | 0.4077 | 933.0 | 737.7 | |
| 6.60 | -7.00 | 3.45 | -7.00 | -19.28 | 38.41 | -2.16 | 173.68 | 0.3251 | 998.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -18.80 | 38.28 | -2.29 | 173.14 | 0.3174 | 284.0 | 201.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -25.52 | 38.07 | -2.50 | 174.68 | 0.4262 | 502.0 | 450.8 | |
| 2.80 | 7.50 | 1.51 | 4.05 | -23.98 | 37.84 | -2.74 | 173.75 | 0.4022 | 975.9 | 690.2 | |
| 0.00 | 4.43 | 0.00 | 2.32 | -19.32 | 37.41 | -3.16 | 170.82 | 0.3278 | 981.0 | 824.6 | |
| 6.60 | 13.10 | 3.48 | 6.91 | -20.38 | 37.22 | -3.35 | 170.85 | 0.3456 | 1034.9 | 562.2 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -19.19 | 36.96 | -3.61 | 169.47 | 0.3270 | 731.0 | 801.7 | |
| 1.36 | 3.07 | 0.71 | 1.61 | -18.87 | 36.80 | -3.77 | 168.83 | 0.3223 | 937.4 | 791.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.78 | 36.54 | -4.03 | 170.75 | 0.4019 | -618.0 | -399.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.25 | 36.57 | -4.00 | 168.41 | 0.3293 | 885.0 | 790.5 | |
| 11.29 | 205.64 | 6.00 | 109.16 | -21.22 | 36.49 | -4.09 | 169.36 | 0.3613 | 1134.6 | 369.0 | |
| 10.84 | -24.00 | 5.74 | -24.00 | -20.67 | 36.30 | -4.27 | 168.58 | 0.3530 | 1331.2 | 999999 | |
| 3.61 | -24.00 | 1.92 | -24.00 | -21.09 | 36.29 | -4.28 | 168.80 | 0.3598 | 1211.5 | 999999 | |
| 2.62 | -24.00 | 1.39 | -24.00 | -21.29 | 36.09 | -4.48 | 168.40 | 0.3636 | 910.3 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -22.92 | 36.01 | -4.57 | 169.11 | 0.3898 | 865.0 | 765.1 | |
| 0.00 | 2.89 | 0.00 | 1.52 | -19.51 | 36.11 | -4.46 | 167.30 | 0.3350 | 737.0 | 661.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -18.99 | 35.83 | -4.74 | 166.16 | 0.3278 | 740.0 | 509.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.19 | 35.47 | -5.10 | 166.08 | 0.3482 | 765.0 | 508.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.80 | 35.45 | -5.12 | 166.47 | 0.3581 | 665.0 | 415.3 | |
| 17.53 | 80.86 | 9.48 | 43.72 | -23.52 | 34.82 | -5.75 | 166.77 | 0.4031 | -1026.6 | -322.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -22.13 | 34.78 | -5.79 | 165.76 | 0.3817 | 612.0 | 477.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.54 | 34.65 | -5.92 | 164.24 | 0.3573 | -894.0 | -729.3 | |
| 0.00 | 4.34 | 0.00 | 2.36 | -24.18 | 34.02 | -6.55 | 165.46 | 0.4164 | -736.0 | -684.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -23.58 | 34.05 | -6.52 | 165.12 | 0.4071 | -957.0 | -814.2 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -21.32 | 34.09 | -6.48 | 163.51 | 0.3720 | -1010.0 | -742.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -23.81 | 33.97 | -6.60 | 165.11 | 0.4110 | -852.0 | -625.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -21.12 | 34.03 | -6.54 | 163.21 | 0.3692 | -983.0 | -757.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.81 | 33.84 | -6.73 | 163.31 | 0.3807 | -911.0 | -749.9 | |
| 0.00 | 4.16 | 0.00 | 2.21 | -21.06 | 33.84 | -6.73 | 162.69 | 0.3691 | -980.0 | -718.4 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -21.94 | 33.37 | -7.20 | 162.34 | 0.3849 | -1002.0 | -788.3 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.35 | 33.40 | -7.17 | 161.90 | 0.3758 | -903.0 | -722.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.20 | 33.32 | -7.25 | 162.45 | 0.3892 | -944.0 | -791.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.44 | 33.26 | -7.31 | 159.70 | 0.3473 | -823.0 | -638.8 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -22.92 | 33.05 | -7.52 | 162.45 | 0.4015 | -981.0 | -808.6 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -21.77 | 32.98 | -7.59 | 161.31 | 0.3844 | -1038.0 | -871.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -25.04 | 32.76 | -7.82 | 163.47 | 0.4348 | -843.0 | -665.4 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -23.05 | 32.81 | -7.76 | 162.04 | 0.4046 | -1073.0 | -785.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -20.64 | 32.91 | -7.66 | 160.06 | 0.3675 | -854.0 | -673.2 | |
| 0.00 | 3.07 | 0.00 | 1.65 | -22.07 | 32.83 | -7.74 | 161.24 | 0.3896 | -706.0 | -686.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.77 | 32.75 | -7.82 | 160.79 | 0.3856 | -834.0 | -676.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -25.01 | 32.52 | -8.05 | 162.98 | 0.4354 | -731.0 | -537.3 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -21.35 | 32.71 | -7.86 | 160.29 | 0.3794 | -978.0 | -708.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -21.87 | 32.58 | -7.99 | 160.49 | 0.3880 | -670.0 | -569.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.00 | 31.18 | -9.39 | 157.56 | 0.3980 | -771.0 | -563.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
