SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.19 | 26.83 | 7.64 | 17.16 | 19.56 | 6.16 | -34.41 | 57.25 | 0.6344 | -67.1 | 267.0 | |
|
previous
or next observation for the same group /

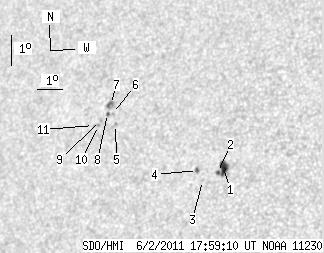

back to the solar disc SDO HMI 2011-06-02 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.76 | 12.74 | 5.44 | 7.90 | 18.82 | 8.41 | -32.16 | 56.78 | 0.6045 | -829.0 | -589.0 | |
| 1.26 | -1.00 | 0.79 | -1.00 | 18.66 | 8.21 | -32.36 | 57.16 | 0.6057 | -614.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 18.41 | 7.70 | -32.87 | 57.90 | 0.6102 | -605.0 | -497.3 | |
| 0.81 | 2.17 | 0.51 | 1.36 | 18.73 | 7.43 | -33.14 | 57.61 | 0.6152 | -721.7 | -541.0 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 20.24 | 3.82 | -36.75 | 57.85 | 0.6653 | 737.0 | 630.6 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 20.60 | 3.60 | -36.97 | 57.50 | 0.6698 | 802.0 | 530.6 | |
| 0.00 | 4.25 | 0.00 | 2.84 | 20.90 | 3.44 | -37.14 | 57.20 | 0.6732 | 828.0 | 771.7 | |
| 1.36 | 1.72 | 0.90 | 1.14 | 20.61 | 3.40 | -37.17 | 57.62 | 0.6720 | 586.7 | 451.0 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 20.38 | 3.18 | -37.39 | 58.06 | 0.6732 | 715.0 | 579.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 20.22 | 3.14 | -37.43 | 58.30 | 0.6727 | 774.0 | 672.1 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 20.22 | 2.94 | -37.64 | 58.42 | 0.6749 | 602.0 | 531.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
