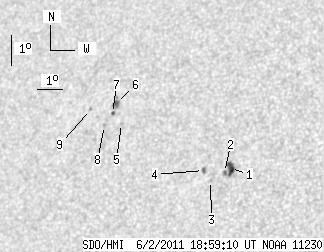

SDO HMI 2011-06-02 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.45 | 23.85 | 9.75 | 15.18 | 19.55 | 6.13 | -33.89 | 56.91 | 0.6284 | -128.3 | 153.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.32 | 10.48 | 4.51 | 6.46 | 18.80 | 8.43 | -31.59 | 56.40 | 0.5976 | -842.6 | -747.3 | |
| 1.36 | -1.00 | 0.84 | -1.00 | 18.67 | 8.23 | -31.79 | 56.74 | 0.5991 | -631.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 18.41 | 7.75 | -32.27 | 57.47 | 0.6030 | -759.0 | -491.8 | |
| 2.44 | 2.53 | 1.52 | 1.58 | 18.74 | 7.41 | -32.60 | 57.24 | 0.6090 | -593.8 | -484.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 20.28 | 3.82 | -36.19 | 57.46 | 0.6593 | 795.0 | 590.6 | |
| 3.07 | 4.43 | 2.04 | 2.94 | 20.93 | 3.44 | -36.58 | 56.81 | 0.6673 | 786.1 | 706.3 | |
| 1.26 | 1.63 | 0.84 | 1.08 | 20.61 | 3.37 | -36.65 | 57.30 | 0.6662 | 590.9 | 510.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 20.22 | 3.15 | -36.86 | 57.96 | 0.6664 | 813.0 | 631.2 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 20.74 | 2.43 | -37.59 | 57.68 | 0.6773 | 520.0 | 469.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
