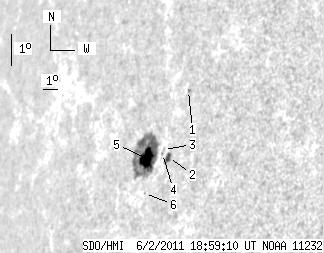

SDO HMI 2011-06-02 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.25 | 91.87 | 20.84 | 100.46 | 9.04 | 337.53 | -62.48 | 79.57 | 0.8924 | -597.4 | -106.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.93 | 11.11 | 339.47 | -60.54 | 77.01 | 0.8788 | 351.0 | 265.8 | |
| 4.16 | 5.24 | 4.34 | 5.47 | 9.04 | 338.86 | -61.16 | 79.43 | 0.8819 | -539.2 | -459.8 | |
| 0.00 | 0.99 | 0.00 | 1.05 | 9.29 | 338.46 | -61.56 | 79.19 | 0.8853 | -434.0 | -362.6 | |
| 0.00 | 0.90 | 0.00 | 0.96 | 9.17 | 338.43 | -61.58 | 79.33 | 0.8854 | -377.0 | -390.1 | |
| 15.09 | 83.03 | 16.50 | 91.17 | 9.02 | 337.41 | -62.60 | 79.60 | 0.8933 | -701.2 | -95.7 | |
| 0.00 | 0.81 | 0.00 | 0.88 | 7.94 | 337.59 | -62.42 | 80.79 | 0.8912 | -469.0 | -325.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
