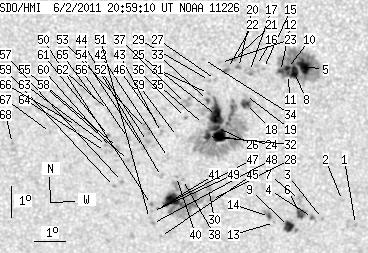

SDO HMI 2011-06-02 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.07 | 497.00 | 50.47 | 263.86 | -21.26 | 36.50 | -2.41 | 173.89 | 0.3588 | 378.3 | 209.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | -24.30 | 40.80 | 1.90 | 184.28 | 0.4063 | 685.0 | 600.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -23.51 | 40.36 | 1.46 | 183.41 | 0.3931 | -639.0 | -438.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.10 | 39.70 | 0.80 | 181.81 | 0.4022 | 810.0 | 666.2 | |
| 1.63 | 3.25 | 0.88 | 1.76 | -24.07 | 39.37 | 0.46 | 181.06 | 0.4015 | 815.3 | 552.6 | |
| 11.02 | 106.35 | 5.76 | 55.60 | -19.15 | 39.06 | 0.16 | 180.47 | 0.3210 | 1400.4 | 577.1 | |
| 6.05 | 7.41 | 3.27 | 4.00 | -23.94 | 38.97 | 0.06 | 180.14 | 0.3993 | 964.4 | 736.5 | |
| 0.00 | 4.88 | 0.00 | 2.63 | -23.47 | 38.93 | 0.03 | 180.07 | 0.3919 | 811.0 | 733.4 | |
| 6.69 | -5.00 | 3.50 | -5.00 | -19.34 | 38.77 | -0.13 | 179.61 | 0.3242 | 1141.8 | 999999 | |
| 7.50 | 10.84 | 4.06 | 5.87 | -24.37 | 38.57 | -0.34 | 179.24 | 0.4063 | 895.6 | 661.7 | |
| 2.17 | -5.00 | 1.13 | -5.00 | -19.21 | 38.55 | -0.36 | 178.95 | 0.3221 | 1275.2 | 999999 | |
| 1.36 | -5.00 | 0.71 | -5.00 | -19.40 | 38.55 | -0.36 | 178.96 | 0.3253 | 868.3 | 999999 | |
| 2.17 | -5.00 | 1.13 | -5.00 | -19.31 | 38.32 | -0.58 | 178.29 | 0.3238 | 925.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -24.24 | 38.10 | -0.80 | 178.18 | 0.4043 | 813.0 | 627.7 | |
| 1.81 | 4.52 | 0.98 | 2.44 | -24.04 | 37.94 | -0.97 | 177.78 | 0.4012 | 934.9 | 809.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.21 | 37.78 | -1.13 | 176.68 | 0.3226 | 821.0 | 637.3 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -19.11 | 37.55 | -1.35 | 176.00 | 0.3212 | 897.0 | 698.8 | |
| 0.00 | 6.69 | 0.00 | 3.50 | -19.31 | 37.32 | -1.58 | 175.38 | 0.3247 | 799.0 | 712.6 | |
| 5.87 | 7.59 | 3.09 | 4.00 | -20.34 | 37.18 | -1.72 | 175.25 | 0.3419 | 1070.3 | 742.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -20.08 | 37.19 | -1.72 | 175.19 | 0.3376 | 244.0 | 267.4 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -19.18 | 36.97 | -1.93 | 174.31 | 0.3231 | 1153.0 | 986.1 | |
| 0.00 | 2.44 | 0.00 | 1.27 | -18.92 | 36.81 | -2.09 | 173.76 | 0.3192 | 1085.0 | 876.8 | |
| 0.00 | 5.78 | 0.00 | 3.03 | -19.21 | 36.62 | -2.29 | 173.29 | 0.3243 | 1027.0 | 763.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -19.02 | 36.39 | -2.51 | 172.56 | 0.3216 | 749.0 | 557.4 | |
| 11.93 | 182.71 | 6.33 | 96.90 | -21.41 | 36.32 | -2.58 | 173.29 | 0.3608 | 1017.6 | 327.4 | |
| 16.63 | -24.00 | 8.79 | -24.00 | -20.73 | 36.24 | -2.67 | 172.82 | 0.3498 | 1209.2 | 999999 | |
| 3.43 | -24.00 | 1.82 | -24.00 | -21.11 | 36.23 | -2.68 | 172.95 | 0.3562 | 1187.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -19.56 | 36.22 | -2.68 | 172.31 | 0.3309 | 857.0 | 524.4 | |
| 0.00 | 3.07 | 0.00 | 1.66 | -23.47 | 36.02 | -2.89 | 173.25 | 0.3946 | 660.0 | 429.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -19.59 | 36.03 | -2.88 | 171.78 | 0.3319 | 761.0 | 611.6 | |
| 0.00 | 3.61 | 0.00 | 1.94 | -23.08 | 35.93 | -2.98 | 172.90 | 0.3884 | 764.0 | 633.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.01 | 35.99 | -2.92 | 171.85 | 0.3388 | 683.0 | 438.4 | |
| 3.25 | -24.00 | 1.73 | -24.00 | -21.41 | 35.93 | -2.98 | 172.28 | 0.3616 | 921.6 | 999999 | |
| 1.36 | -24.00 | 0.71 | -24.00 | -20.24 | 35.95 | -2.95 | 171.85 | 0.3426 | 833.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.92 | 35.85 | -3.06 | 170.93 | 0.3213 | 841.0 | 577.8 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -21.02 | 35.81 | -3.10 | 171.81 | 0.3555 | 594.0 | 535.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.79 | 35.23 | -3.68 | 170.18 | 0.3533 | 631.0 | 528.5 | |
| 0.00 | 7.23 | 0.00 | 3.81 | -20.34 | 35.24 | -3.67 | 169.97 | 0.3460 | -32.0 | 149.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.81 | 35.07 | -3.83 | 170.78 | 0.3862 | 716.0 | 566.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.41 | 34.95 | -3.96 | 169.79 | 0.3641 | 650.0 | 521.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -22.71 | 34.88 | -4.03 | 170.27 | 0.3851 | 635.0 | 502.5 | |
| 12.20 | 75.36 | 6.58 | 40.66 | -23.51 | 34.69 | -4.22 | 170.21 | 0.3982 | -1116.8 | -371.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.09 | 34.63 | -4.27 | 169.37 | 0.3759 | -475.0 | -454.1 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -21.28 | 34.43 | -4.48 | 168.41 | 0.3636 | 287.0 | 198.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -22.71 | 34.38 | -4.52 | 169.11 | 0.3866 | 568.0 | 487.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -24.70 | 34.28 | -4.63 | 169.86 | 0.4181 | -718.0 | -472.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.05 | 34.37 | -4.54 | 168.12 | 0.3601 | 244.0 | 251.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.77 | 34.21 | -4.69 | 169.27 | 0.4037 | -821.0 | -680.2 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -24.27 | 34.03 | -4.88 | 169.11 | 0.4121 | -882.0 | -758.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -23.87 | 34.04 | -4.86 | 168.94 | 0.4058 | -762.0 | -579.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.64 | 34.02 | -4.89 | 168.76 | 0.4022 | -956.0 | -776.4 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -24.10 | 33.93 | -4.97 | 168.82 | 0.4098 | -762.0 | -610.5 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -21.57 | 33.96 | -4.95 | 167.43 | 0.3698 | -1036.0 | -770.7 | |
| 0.00 | 5.15 | 0.00 | 2.74 | -21.15 | 33.94 | -4.96 | 167.11 | 0.3632 | -923.0 | -807.6 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.76 | 33.82 | -5.08 | 167.21 | 0.3734 | -951.0 | -800.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.19 | 33.31 | -5.59 | 166.27 | 0.3820 | -970.0 | -777.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.47 | 33.34 | -5.57 | 165.84 | 0.3706 | -918.0 | -865.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -22.88 | 33.08 | -5.82 | 166.21 | 0.3936 | -863.0 | -752.9 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -21.76 | 32.97 | -5.94 | 165.16 | 0.3767 | -930.0 | -767.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -23.04 | 32.81 | -6.09 | 165.70 | 0.3972 | -885.0 | -615.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.76 | 32.77 | -6.14 | 164.69 | 0.3775 | -891.0 | -708.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -21.37 | 32.69 | -6.22 | 164.19 | 0.3718 | -965.0 | -747.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -20.56 | 32.72 | -6.18 | 163.61 | 0.3590 | -778.0 | -597.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.70 | 32.61 | -6.30 | 164.26 | 0.3772 | -831.0 | -730.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -21.89 | 32.57 | -6.34 | 164.31 | 0.3805 | -720.0 | -588.0 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -20.33 | 32.40 | -6.50 | 162.62 | 0.3570 | -780.0 | -560.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.05 | 31.65 | -7.25 | 161.44 | 0.3718 | -841.0 | -655.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.27 | 30.78 | -8.12 | 159.64 | 0.3799 | -854.0 | -666.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.63 | 29.51 | -9.40 | 157.17 | 0.3928 | -801.0 | -634.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
