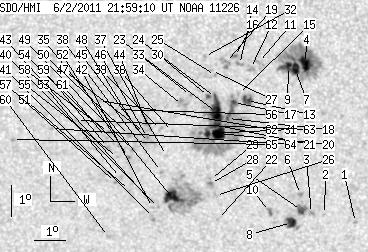

SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.27 | 517.10 | 48.46 | 274.60 | -21.29 | 36.44 | -1.91 | 175.20 | 0.3587 | 310.7 | 198.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.93 | -24.36 | 40.79 | 2.44 | 185.47 | 0.4080 | 748.0 | 588.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -24.09 | 39.75 | 1.40 | 183.19 | 0.4026 | 764.0 | 561.7 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -24.06 | 39.32 | 0.96 | 182.20 | 0.4017 | 952.0 | 704.7 | |
| 10.93 | 106.72 | 5.72 | 55.80 | -19.17 | 39.09 | 0.74 | 182.18 | 0.3217 | 1349.8 | 565.5 | |
| 4.25 | 7.86 | 2.29 | 4.25 | -23.96 | 38.98 | 0.63 | 181.45 | 0.3999 | 1005.6 | 825.9 | |
| 0.00 | 2.44 | 0.00 | 1.31 | -23.43 | 38.95 | 0.60 | 181.40 | 0.3914 | 1013.0 | 763.4 | |
| 6.87 | -4.00 | 3.60 | -4.00 | -19.36 | 38.77 | 0.42 | 181.22 | 0.3247 | 1082.4 | 999999 | |
| 7.86 | 12.65 | 4.26 | 6.85 | -24.36 | 38.65 | 0.30 | 180.68 | 0.4062 | 918.1 | 641.7 | |
| 3.34 | -4.00 | 1.75 | -4.00 | -19.27 | 38.54 | 0.19 | 180.57 | 0.3231 | 1192.5 | 999999 | |
| 0.00 | 3.89 | 0.00 | 2.10 | -23.99 | 37.92 | -0.43 | 179.01 | 0.4004 | 1059.0 | 876.6 | |
| 0.00 | 2.35 | 0.00 | 1.23 | -19.14 | 37.58 | -0.77 | 177.72 | 0.3212 | 791.0 | 704.2 | |
| 0.00 | 4.43 | 0.00 | 2.32 | -19.33 | 37.32 | -1.03 | 176.99 | 0.3246 | 949.0 | 765.0 | |
| 6.51 | 9.49 | 3.43 | 5.00 | -20.36 | 37.18 | -1.17 | 176.78 | 0.3417 | 1025.3 | 769.7 | |
| 0.00 | 2.89 | 0.00 | 1.51 | -19.20 | 36.97 | -1.38 | 175.93 | 0.3228 | 1056.0 | 857.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -20.13 | 36.93 | -1.43 | 176.02 | 0.3383 | 236.0 | 211.6 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -18.94 | 36.81 | -1.54 | 175.40 | 0.3188 | 981.0 | 795.0 | |
| 2.35 | 195.10 | 1.24 | 103.44 | -20.43 | 36.76 | -1.59 | 175.64 | 0.3432 | 1082.1 | 328.3 | |
| 1.17 | -17.00 | 0.62 | -17.00 | -20.94 | 36.56 | -1.79 | 175.22 | 0.3520 | 802.3 | 999999 | |
| 0.00 | 7.95 | 0.00 | 4.16 | -19.14 | 36.52 | -1.83 | 174.59 | 0.3224 | 913.0 | 771.4 | |
| 11.57 | -17.00 | 6.14 | -17.00 | -21.43 | 36.26 | -2.09 | 174.57 | 0.3604 | 1003.2 | 999999 | |
| 3.43 | -17.00 | 1.82 | -17.00 | -21.17 | 36.23 | -2.12 | 174.42 | 0.3562 | 1150.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -24.26 | 36.18 | -2.17 | 175.11 | 0.4061 | -655.0 | -518.2 | |
| 12.83 | -17.00 | 6.78 | -17.00 | -20.75 | 36.20 | -2.15 | 174.22 | 0.3494 | 1256.3 | 999999 | |
| 1.27 | -17.00 | 0.67 | -17.00 | -20.26 | 36.18 | -2.17 | 174.00 | 0.3415 | 1050.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.55 | 36.19 | -2.16 | 173.78 | 0.3298 | 746.0 | 556.7 | |
| 0.00 | 2.89 | 0.00 | 1.56 | -23.46 | 36.13 | -2.22 | 174.79 | 0.3934 | 778.0 | 474.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.39 | 36.06 | -2.29 | 173.36 | 0.3274 | 824.0 | 551.5 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -23.07 | 35.97 | -2.38 | 174.31 | 0.3873 | 835.0 | 701.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -22.94 | 35.97 | -2.38 | 174.28 | 0.3852 | 845.0 | 594.0 | |
| 1.90 | -17.00 | 1.00 | -17.00 | -20.23 | 35.95 | -2.40 | 173.37 | 0.3413 | 727.7 | 999999 | |
| 2.80 | -17.00 | 1.49 | -17.00 | -21.43 | 35.90 | -2.45 | 173.64 | 0.3610 | 926.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -18.94 | 35.84 | -2.51 | 172.55 | 0.3205 | 733.0 | 538.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -20.20 | 35.37 | -2.98 | 171.76 | 0.3421 | 736.0 | 591.4 | |
| 0.00 | 8.31 | 0.00 | 4.39 | -20.52 | 35.10 | -3.25 | 171.19 | 0.3480 | -262.0 | 62.8 | |
| 14.19 | 84.31 | 7.65 | 45.46 | -23.53 | 34.70 | -3.65 | 171.51 | 0.3972 | -1062.1 | -357.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.37 | 34.76 | -3.59 | 170.69 | 0.3625 | 375.0 | 337.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -22.15 | 34.54 | -3.81 | 170.53 | 0.3756 | -870.0 | -600.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -22.67 | 34.36 | -3.99 | 170.35 | 0.3845 | 596.0 | 444.5 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -21.30 | 34.37 | -3.98 | 169.67 | 0.3625 | 380.0 | 273.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.86 | 34.22 | -4.13 | 170.58 | 0.4036 | -746.0 | -590.2 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -24.19 | 34.05 | -4.30 | 170.33 | 0.4093 | -513.0 | -634.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -23.86 | 34.02 | -4.33 | 170.13 | 0.4042 | -537.0 | -400.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -23.66 | 34.00 | -4.35 | 169.98 | 0.4011 | -816.0 | -656.2 | |
| 0.00 | 5.69 | 0.00 | 3.02 | -21.24 | 33.98 | -4.37 | 168.64 | 0.3627 | -844.0 | -694.2 | |
| 0.00 | 5.15 | 0.00 | 2.75 | -21.72 | 33.96 | -4.39 | 168.89 | 0.3705 | -615.0 | -690.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.56 | 33.93 | -4.42 | 168.73 | 0.3680 | -999.0 | -856.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.40 | 33.84 | -4.51 | 168.40 | 0.3657 | -685.0 | -624.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -21.46 | 33.71 | -4.64 | 168.11 | 0.3672 | -781.0 | -677.1 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.95 | 33.43 | -4.92 | 167.72 | 0.3759 | -993.0 | -806.7 | |
| 0.00 | 2.35 | 0.00 | 1.25 | -21.50 | 33.34 | -5.01 | 167.23 | 0.3690 | -933.0 | -804.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.30 | 33.28 | -5.07 | 168.17 | 0.3976 | -689.0 | -591.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -22.21 | 33.29 | -5.06 | 167.55 | 0.3805 | -1003.0 | -820.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.87 | 33.00 | -5.35 | 167.27 | 0.3918 | -780.0 | -594.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.82 | 32.97 | -5.38 | 166.54 | 0.3755 | -883.0 | -759.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.21 | 32.92 | -5.43 | 166.69 | 0.3818 | -740.0 | -557.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -20.65 | 32.95 | -5.40 | 165.66 | 0.3571 | -824.0 | -641.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -23.03 | 32.82 | -5.53 | 166.98 | 0.3950 | -896.0 | -669.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -21.40 | 32.66 | -5.69 | 165.49 | 0.3700 | -996.0 | -788.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.89 | 32.64 | -5.71 | 165.79 | 0.3778 | -798.0 | -703.1 | |
| 0.00 | 2.26 | 0.00 | 1.23 | -24.82 | 32.51 | -5.84 | 167.37 | 0.4239 | -716.0 | -614.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.56 | 32.59 | -5.76 | 165.43 | 0.3729 | -727.0 | -691.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.36 | 32.37 | -5.98 | 163.97 | 0.3550 | -862.0 | -700.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -21.01 | 31.63 | -6.72 | 162.67 | 0.3686 | -776.0 | -680.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.27 | 30.79 | -7.56 | 160.93 | 0.3768 | -824.0 | -675.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -21.62 | 29.49 | -8.86 | 158.32 | 0.3895 | -684.0 | -616.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
