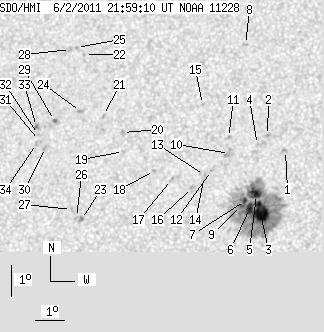

SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.86 | 263.15 | 21.16 | 144.03 | 17.10 | 20.28 | -18.07 | 44.33 | 0.4248 | -434.8 | -391.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.04 | 18.49 | 21.94 | -16.41 | 39.50 | 0.4230 | -890.0 | -712.7 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 18.97 | 21.28 | -17.07 | 39.80 | 0.4353 | -892.0 | -655.1 | |
| 22.23 | 210.82 | 12.05 | 114.43 | 16.51 | 21.29 | -17.06 | 43.91 | 0.4072 | -1288.9 | -520.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 18.69 | 20.98 | -17.37 | 40.75 | 0.4351 | -793.0 | -666.4 | |
| 5.06 | -3.00 | 2.75 | -3.00 | 17.08 | 21.11 | -17.24 | 43.20 | 0.4156 | -1041.1 | 999999 | |
| 6.51 | -3.00 | 3.54 | -3.00 | 16.64 | 20.92 | -17.43 | 44.29 | 0.4128 | -1049.9 | 999999 | |
| 2.26 | -3.00 | 1.23 | -3.00 | 16.89 | 20.76 | -17.59 | 44.09 | 0.4174 | -937.9 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.12 | 21.94 | 20.18 | -18.17 | 37.18 | 0.4806 | -741.0 | -540.6 | |
| 1.17 | -3.00 | 0.64 | -3.00 | 16.73 | 20.64 | -17.71 | 44.55 | 0.4170 | -777.1 | 999999 | |
| 0.00 | 5.42 | 0.00 | 2.99 | 18.40 | 20.07 | -18.28 | 42.62 | 0.4414 | -787.0 | -707.8 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 18.91 | 19.97 | -18.38 | 41.93 | 0.4481 | -720.0 | -454.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.85 | 19.52 | -18.83 | 44.33 | 0.4415 | -841.0 | -652.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 17.70 | 19.30 | -19.05 | 44.92 | 0.4422 | -741.0 | -572.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.57 | 19.28 | -19.07 | 45.16 | 0.4411 | -713.0 | -552.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 19.99 | 18.96 | -19.39 | 41.76 | 0.4704 | 722.0 | 481.4 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 17.31 | 18.94 | -19.41 | 46.09 | 0.4423 | -734.0 | -646.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 17.57 | 18.20 | -20.15 | 46.68 | 0.4533 | -567.0 | -418.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.86 | 17.58 | -20.77 | 47.02 | 0.4632 | -635.0 | -506.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 18.48 | 16.44 | -21.91 | 47.48 | 0.4822 | -686.0 | -557.5 | |
| 0.00 | 2.17 | 0.00 | 1.23 | 19.09 | 16.32 | -22.03 | 46.65 | 0.4895 | 1016.0 | 663.9 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 19.64 | 15.57 | -22.78 | 46.69 | 0.5031 | 745.0 | 591.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 21.63 | 14.58 | -23.77 | 44.89 | 0.5330 | 763.0 | 598.4 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 16.31 | 15.27 | -23.08 | 52.52 | 0.4760 | 1003.0 | 749.0 | |
| 0.00 | 2.35 | 0.00 | 1.35 | 19.77 | 14.75 | -23.61 | 47.45 | 0.5135 | 771.0 | 637.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 21.87 | 14.25 | -24.10 | 44.93 | 0.5386 | 689.0 | 548.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 16.37 | 15.09 | -23.26 | 52.61 | 0.4788 | 799.0 | 671.8 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 16.63 | 14.88 | -23.47 | 52.40 | 0.4835 | 585.0 | 598.1 | |
| 0.00 | 2.80 | 0.00 | 1.65 | 21.80 | 14.05 | -24.30 | 45.25 | 0.5402 | 804.0 | 526.7 | |
| 0.36 | 0.99 | 0.21 | 0.58 | 19.49 | 13.87 | -24.48 | 48.87 | 0.5206 | 1016.2 | 873.8 | |
| 0.00 | 2.17 | 0.00 | 1.25 | 18.62 | 13.69 | -24.66 | 50.43 | 0.5150 | 655.0 | 664.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 18.84 | 13.44 | -24.91 | 50.34 | 0.5198 | 608.0 | 521.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 19.04 | 13.38 | -24.97 | 50.11 | 0.5223 | 638.0 | 461.0 | |
| 1.27 | 2.53 | 0.74 | 1.47 | 19.29 | 13.26 | -25.09 | 49.82 | 0.5258 | 746.2 | 622.0 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 18.75 | 13.35 | -25.00 | 50.59 | 0.5200 | 547.0 | 508.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
