SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.67 | 49.69 | 5.57 | 25.90 | 16.96 | 40.41 | 2.06 | 354.03 | 0.3090 | -81.5 | -184.4 | |
|
previous
or next observation for the same group /

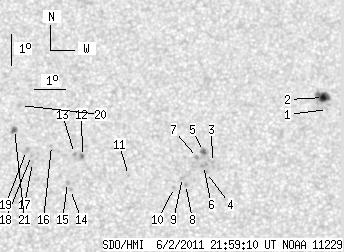

back to the solar disc SDO HMI 2011-06-02 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.62 | 17.92 | 45.23 | 6.88 | 340.15 | 0.3374 | -781.0 | -559.0 | |
| 4.34 | 13.37 | 2.29 | 7.05 | 18.31 | 45.12 | 6.77 | 340.85 | 0.3427 | -1100.5 | -754.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.23 | 41.52 | 3.17 | 349.56 | 0.2940 | -754.0 | -616.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 15.91 | 41.32 | 2.97 | 349.99 | 0.2882 | -902.0 | -671.5 | |
| 2.53 | 3.89 | 1.31 | 2.02 | 16.58 | 41.24 | 2.89 | 350.67 | 0.2990 | -893.0 | -822.3 | |
| 0.00 | 2.71 | 0.00 | 1.40 | 16.13 | 41.23 | 2.88 | 350.43 | 0.2916 | -1040.0 | -823.2 | |
| 0.00 | 2.62 | 0.00 | 1.36 | 16.39 | 41.04 | 2.69 | 351.18 | 0.2953 | -902.0 | -727.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.53 | 40.65 | 2.30 | 352.02 | 0.2801 | -973.0 | -750.5 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 15.75 | 40.56 | 2.21 | 352.44 | 0.2836 | -722.0 | -582.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.44 | 40.31 | 1.95 | 353.17 | 0.2778 | -822.0 | -627.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.82 | 38.86 | 0.50 | 358.27 | 0.2823 | 774.0 | 596.6 | |
| 1.36 | 1.63 | 0.70 | 0.84 | 16.42 | 37.40 | -0.95 | 3.13 | 0.2928 | 888.3 | 831.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.52 | 37.15 | -1.21 | 3.94 | 0.2946 | 831.0 | 698.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.37 | 37.03 | -1.32 | 4.66 | 0.2757 | 845.0 | 705.6 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 15.60 | 36.93 | -1.42 | 4.92 | 0.2795 | 834.0 | 675.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.77 | 36.41 | -1.94 | 6.22 | 0.3000 | 633.0 | 526.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.23 | 35.82 | -2.53 | 8.39 | 0.2923 | 928.0 | 742.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.45 | 35.78 | -2.57 | 8.38 | 0.2960 | 934.0 | 740.8 | |
| 0.00 | 3.16 | 0.00 | 1.64 | 16.61 | 35.62 | -2.73 | 8.82 | 0.2991 | 808.0 | 666.0 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 18.05 | 35.41 | -2.94 | 8.72 | 0.3232 | 365.0 | 458.5 | |
| 2.44 | 3.52 | 1.27 | 1.84 | 17.28 | 35.23 | -3.12 | 9.66 | 0.3111 | 923.8 | 800.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
