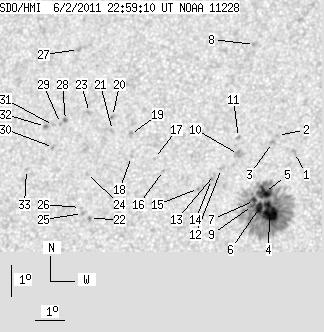

SDO HMI 2011-06-02 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.76 | 262.58 | 22.66 | 143.06 | 17.14 | 20.39 | -17.40 | 43.26 | 0.4180 | -442.9 | -401.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-02 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.43 | 18.43 | 21.92 | -15.88 | 38.70 | 0.4169 | -871.0 | -637.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 18.98 | 21.30 | -16.50 | 38.88 | 0.4296 | -778.0 | -652.5 | |
| 0.00 | 2.98 | 0.00 | 1.63 | 18.75 | 21.15 | -16.64 | 39.47 | 0.4284 | -882.0 | -709.2 | |
| 19.70 | 213.83 | 10.65 | 115.71 | 16.51 | 21.27 | -16.53 | 43.04 | 0.4014 | -1314.0 | -508.6 | |
| 12.38 | -4.00 | 6.72 | -4.00 | 17.15 | 21.04 | -16.75 | 42.29 | 0.4110 | -944.8 | 999999 | |
| 5.33 | -4.00 | 2.89 | -4.00 | 16.67 | 20.92 | -16.88 | 43.33 | 0.4070 | -1080.6 | 999999 | |
| 1.54 | -4.00 | 0.83 | -4.00 | 16.90 | 20.73 | -17.06 | 43.24 | 0.4115 | -949.3 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.32 | 21.95 | 20.17 | -17.62 | 36.36 | 0.4755 | -691.0 | -512.0 | |
| 1.36 | -4.00 | 0.74 | -4.00 | 16.74 | 20.68 | -17.11 | 43.61 | 0.4103 | -817.9 | 999999 | |
| 0.00 | 6.06 | 0.00 | 3.33 | 18.37 | 20.05 | -17.74 | 41.85 | 0.4353 | -805.0 | -703.1 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 18.92 | 19.99 | -17.80 | 41.07 | 0.4421 | -803.0 | -560.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 17.92 | 19.53 | -18.27 | 43.39 | 0.4360 | -747.0 | -597.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.73 | 19.31 | -18.48 | 44.04 | 0.4362 | -787.0 | -610.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.57 | 19.23 | -18.57 | 44.43 | 0.4355 | -813.0 | -652.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.28 | 18.82 | -18.98 | 45.52 | 0.4370 | -737.0 | -635.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 17.86 | 17.57 | -20.23 | 46.30 | 0.4570 | -642.0 | -466.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 18.25 | 17.22 | -20.58 | 46.14 | 0.4649 | 943.0 | 664.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.32 | 16.42 | -21.38 | 47.07 | 0.4745 | -819.0 | -584.1 | |
| 0.00 | 2.53 | 0.00 | 1.43 | 19.03 | 16.29 | -21.51 | 46.10 | 0.4830 | 886.0 | 686.4 | |
| 0.00 | 2.17 | 0.00 | 1.24 | 19.61 | 15.58 | -22.22 | 46.07 | 0.4966 | 741.0 | 554.2 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 19.16 | 15.65 | -22.15 | 46.69 | 0.4914 | 629.0 | 525.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.34 | 15.22 | -22.57 | 51.88 | 0.4701 | 956.0 | 819.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 19.74 | 14.76 | -23.04 | 46.85 | 0.5069 | 798.0 | 614.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 17.78 | 14.93 | -22.86 | 49.78 | 0.4865 | 831.0 | 636.9 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 16.50 | 14.96 | -22.83 | 51.91 | 0.4747 | 889.0 | 636.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 16.69 | 14.87 | -22.93 | 51.68 | 0.4775 | 498.0 | 443.2 | |
| 0.00 | 2.08 | 0.00 | 1.22 | 21.80 | 14.03 | -23.77 | 44.66 | 0.5345 | 840.0 | 611.2 | |
| 1.45 | 1.54 | 0.83 | 0.89 | 19.49 | 13.95 | -23.85 | 48.18 | 0.5135 | 868.1 | 1074.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.39 | 13.79 | -24.01 | 48.51 | 0.5144 | 735.0 | 616.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 18.62 | 13.66 | -24.13 | 49.86 | 0.5088 | 704.0 | 693.1 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 19.33 | 13.55 | -24.25 | 48.87 | 0.5165 | 679.0 | 589.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 19.30 | 13.27 | -24.52 | 49.22 | 0.5194 | 807.0 | 748.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 17.91 | 12.82 | -24.98 | 51.90 | 0.5126 | 581.0 | 491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
