SDO HMI 2011-06-02 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.18 | 488.91 | 57.43 | 259.80 | -21.45 | 36.46 | -0.78 | 178.18 | 0.3605 | 401.6 | 193.0 | |
|
previous
or next observation for the same group /

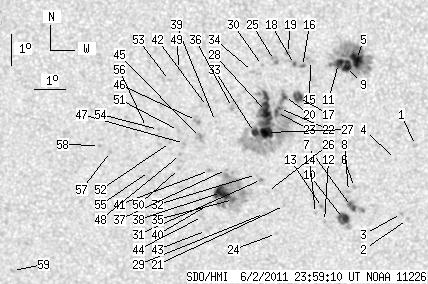

back to the solar disc SDO HMI 2011-06-02 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.21 | -21.94 | 41.04 | 3.80 | 189.54 | 0.3725 | 651.0 | 534.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -24.38 | 40.85 | 3.60 | 188.05 | 0.4108 | 723.0 | 526.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -24.18 | 40.64 | 3.40 | 187.66 | 0.4072 | 900.0 | 704.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.40 | 40.40 | 3.16 | 187.76 | 0.3782 | 719.0 | 632.1 | |
| 11.84 | 95.81 | 6.20 | 50.12 | -19.15 | 39.07 | 1.83 | 185.39 | 0.3229 | 1339.8 | 578.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -23.32 | 39.06 | 1.82 | 184.29 | 0.3908 | 813.0 | 657.4 | |
| 5.24 | 13.65 | 2.83 | 7.37 | -23.95 | 38.97 | 1.73 | 183.96 | 0.4008 | 977.0 | 723.0 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -23.45 | 38.86 | 1.62 | 183.80 | 0.3927 | 849.0 | 765.8 | |
| 7.68 | -5.00 | 4.02 | -5.00 | -19.38 | 38.75 | 1.51 | 184.39 | 0.3262 | 1011.9 | 999999 | |
| 10.03 | 14.91 | 5.44 | 8.09 | -24.35 | 38.71 | 1.47 | 183.30 | 0.4069 | 876.3 | 574.3 | |
| 5.24 | -5.00 | 2.74 | -5.00 | -19.28 | 38.50 | 1.25 | 183.67 | 0.3243 | 1085.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -24.45 | 38.07 | 0.83 | 181.86 | 0.4080 | 752.0 | 498.6 | |
| 0.00 | 2.62 | 0.00 | 1.42 | -23.98 | 38.00 | 0.76 | 181.75 | 0.4005 | 1147.0 | 875.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -24.18 | 37.77 | 0.53 | 181.20 | 0.4036 | 705.0 | 553.6 | |
| 0.00 | 3.62 | 0.00 | 1.89 | -19.19 | 37.59 | 0.35 | 181.03 | 0.3221 | 707.0 | 732.8 | |
| 1.45 | 1.99 | 0.76 | 1.04 | -19.38 | 37.34 | 0.09 | 180.27 | 0.3252 | 955.6 | 865.3 | |
| 6.15 | 8.86 | 3.24 | 4.67 | -20.38 | 37.21 | -0.04 | 179.90 | 0.3417 | 1049.5 | 793.5 | |
| 1.17 | 3.07 | 0.62 | 1.61 | -19.32 | 37.08 | -0.16 | 179.52 | 0.3242 | 981.8 | 857.1 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -18.96 | 36.85 | -0.39 | 178.84 | 0.3183 | 1088.0 | 886.0 | |
| 2.89 | 184.38 | 1.52 | 97.75 | -20.35 | 36.75 | -0.49 | 178.65 | 0.3413 | 1082.5 | 316.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -23.92 | 36.74 | -0.50 | 178.85 | 0.3994 | -750.0 | -562.2 | |
| 1.17 | -20.00 | 0.62 | -20.00 | -20.74 | 36.59 | -0.65 | 178.24 | 0.3478 | 951.2 | 999999 | |
| 2.53 | -20.00 | 1.34 | -20.00 | -20.87 | 36.49 | -0.75 | 177.98 | 0.3499 | 890.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.85 | 36.47 | -0.77 | 178.30 | 0.4144 | -785.0 | -515.7 | |
| 0.00 | 5.60 | 0.00 | 2.93 | -19.19 | 36.43 | -0.81 | 177.62 | 0.3223 | 662.0 | 827.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.45 | 36.18 | -1.06 | 177.50 | 0.3922 | 790.0 | 591.9 | |
| 10.76 | -20.00 | 5.71 | -20.00 | -21.52 | 36.16 | -1.08 | 177.20 | 0.3608 | 1056.8 | 999999 | |
| 21.96 | -20.00 | 11.61 | -20.00 | -20.83 | 36.17 | -1.08 | 177.11 | 0.3496 | 1144.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.18 | 36.07 | -1.17 | 177.35 | 0.4040 | -689.0 | -525.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.35 | 36.05 | -1.20 | 176.52 | 0.3253 | 852.0 | 607.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.06 | 35.98 | -1.26 | 176.98 | 0.3860 | 777.0 | 627.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -22.89 | 35.82 | -1.42 | 176.57 | 0.3834 | 546.0 | 449.4 | |
| 4.43 | -20.00 | 2.35 | -20.00 | -21.52 | 35.77 | -1.47 | 176.18 | 0.3612 | 907.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -19.54 | 35.72 | -1.52 | 175.62 | 0.3288 | 566.0 | 525.2 | |
| 1.63 | 86.86 | 0.88 | 46.79 | -23.72 | 35.05 | -2.20 | 174.92 | 0.3976 | -696.6 | -315.1 | |
| 0.00 | 2.35 | 0.00 | 1.24 | -20.70 | 35.06 | -2.18 | 174.12 | 0.3489 | 167.0 | 241.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -22.73 | 34.83 | -2.41 | 174.15 | 0.3821 | 602.0 | 549.6 | |
| 14.01 | -35.00 | 7.55 | -35.00 | -23.48 | 34.65 | -2.59 | 173.95 | 0.3945 | -1102.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.16 | 34.50 | -2.74 | 172.80 | 0.3573 | -294.0 | -303.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.85 | 34.28 | -2.96 | 173.20 | 0.4010 | -577.0 | -511.9 | |
| 0.00 | 2.80 | 0.00 | 1.50 | -22.76 | 34.27 | -2.97 | 172.81 | 0.3836 | 616.0 | 405.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -20.67 | 34.25 | -2.99 | 171.94 | 0.3500 | -823.0 | -617.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -24.75 | 34.12 | -3.12 | 173.14 | 0.4156 | -535.0 | -426.4 | |
| 0.00 | 3.25 | 0.00 | 1.76 | -24.28 | 34.00 | -3.24 | 172.72 | 0.4084 | -617.0 | -519.3 | |
| 0.00 | 7.50 | 0.00 | 3.99 | -21.68 | 34.00 | -3.24 | 171.72 | 0.3669 | -886.0 | -689.3 | |
| 0.00 | 3.80 | 0.00 | 2.01 | -21.12 | 33.88 | -3.36 | 171.18 | 0.3582 | -902.0 | -833.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.87 | 33.47 | -3.77 | 170.49 | 0.3713 | -880.0 | -789.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -22.23 | 33.33 | -3.91 | 170.32 | 0.3775 | -954.0 | -822.3 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -19.48 | 33.37 | -3.88 | 168.92 | 0.3330 | -801.0 | -616.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -22.69 | 33.28 | -3.96 | 170.43 | 0.3849 | -912.0 | -724.2 | |
| 0.00 | 2.08 | 0.00 | 1.11 | -21.45 | 33.28 | -3.96 | 169.82 | 0.3651 | -938.0 | -727.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.84 | 33.01 | -4.23 | 169.35 | 0.3721 | -909.0 | -779.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -19.83 | 33.03 | -4.21 | 168.23 | 0.3398 | -818.0 | -551.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.42 | 32.63 | -4.61 | 168.16 | 0.3666 | -1078.0 | -877.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.79 | 32.29 | -4.96 | 168.15 | 0.3895 | -663.0 | -546.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -21.35 | 32.24 | -5.00 | 167.15 | 0.3669 | -782.0 | -600.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -22.13 | 31.02 | -6.22 | 164.79 | 0.3840 | -783.0 | -645.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -21.94 | 30.67 | -6.57 | 163.81 | 0.3825 | -764.0 | -526.1 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -26.08 | 27.48 | -9.77 | 160.58 | 0.4601 | -720.0 | -542.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
